factory directly offered OMSW series hydraulic motor orbital motor danfoss motor

China factory directly offered OMSW series hydraulic motor orbital motor danfoss motor supplier
factory directly offered OMSW series hydraulic motor orbital motor danfoss motor supplier factory directly offered OMSW series hydraulic motor orbital motor danfoss motor supplier factory directly offered OMSW series hydraulic motor orbital motor danfoss motor supplier factory directly offered OMSW series hydraulic motor orbital motor danfoss motor supplier factory directly offered OMSW series hydraulic motor orbital motor danfoss motor supplier factory directly offered OMSW series hydraulic motor orbital motor danfoss motor supplier factory directly offered OMSW series hydraulic motor orbital motor danfoss motor supplier

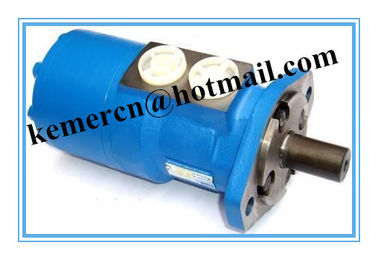

Large Image :  factory directly offered OMSW series hydraulic motor orbital motor danfoss motor

Product Details:

Place of Origin: Ningbo
Brand Name: cathyhsu@foxmail.com
Certification: ISO9001
Model Number: OMSW series hydraulic motor orbital motor

Payment & Shipping Terms:

Minimum Order Quantity: 10 units
Price: Negotiation
Packaging Details: case
Delivery Time: 1 day
Payment Terms: T/T or L/C
Supply Ability: on request
interchanged with: Danfoss OMP, OMR, OMS, OMT, OMV
Contact: Cathy
Email: cathyhsu@foxmail.com
Skype: kemercathy
Whatsapp: 8613486645746
Contact Now
Detailed Product Description
Replace: Danfoss Hydraulic Motor Orbital Motor Delivery Time: 1 Day

hydraulic motor manufacturer from China
factory directly offered OMSW series hydraulic motor orbital motor danfoss motor
Purchase hydraulic orbital motor directly from the factory with competitive price

Orbital Motor hydraulic motor Danfoss hydraulic motor Eaton hydraulic motor


We are the specialized manufacturer of orbital hydraulic motor. We can provide more than 2000 kinds of motor with different models and technical parameters: the rated displacement from 50mm to 1600cc, Max. torque from 50N.m to 3300N.m, Max. output power from 2 KW to 90 KW, which has provided wide choice to meet customer's needs. Meanwhile, Our products manufactured can be completely interchanged with SAUER DANFOSS OMP, OMR, OMH, OMS, OMT AND OMV series.



Features
1.Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.

2.Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.

3.Special design in the driver-linker and prolong operation life.

4.Advanced design in disc distribution flow, which can automatically compensate in operating.

5.The output shaft adopts in tapered roller bearings that permit high axial and radial forces. The case can offers capacities of high pressure and high torque in the wide of applications.

6.Various kinds of flange, output shaft and oil port mounting dimension.



Technical Parameter:



TYPE BM5-315
BM5S-315
BM5W-315
BM5-400
BM5S-400
BM5W-400
BM5-500
BM5S-500
BM5W-500
BM5-630
BM5S-630
BM5W-630
BM5-800
BM5S-800
BM5W-800
BM5-985
BM5S-985
BM5W-985
Displacement(ml/r) 314.9 399.7 496.6 617.8 787.4 969.1

Max.Pressure.Drop(Mpa)
cont. 20 20 20 18 16 14
int. 24 24 24 21 18 16
peak. 28 28 28 24 21 18
Max.Torque(N.m) cont. 873 1108 1385 1570 1773 1900
int. 1119 1440 1783 1951 2122 2133
peak. 1293 1650 2060 2249 2481 2399
Speed.Range(cont.)(r/min) 10-475 9-375 8-300 6-238 5-187 5-154
Max.Flow(cont.)(L/min) 150 150 150 150 150 150
Max.Output.Power(cont.)(Kw) 32 32 32 32 32 24
Weight(kg) 30.7 31.5 32.4 33.6 35.2 37.2





Model of DANFOSS hydraulic wheel motor orbital motor:

OMSW 80 OMSW 100 OMSW 125 OMSW 160 OMSW 200 OMSW 250 OMSW315 OMSW 400 Order code: 151F0221 151F0222 151F0223 151F0224 151F0225 151F0226 151F0227 151F0310 151F0521 151F0522 151F0523 151F0524 151F0525 151F0526 151F0527 151F0610 151F0228 151F0229 151F0230 151F0231 151F0232 151F0233 151F0234 151F0309 151F0528 151F0529 151F0530 151F0531 151F0532 151F0533 151F0534 151F0609



We can also offer:


OMM Series Danfoss Hydraulic Motor



OMP   Series Danfoss Hydraulic Motor

OMR Series Danfoss Hydraulic Motor

OMS Series Danfoss Hydraulic Motor

OMT Series Danfoss Hydraulic Motor

OMV Series Danfoss Hydraulic Motor

OMH Series Danfoss Hydraulic Motor



Please send your requirements of orbital motor to the mail

cathyhsu@foxmail.com for quotation purpose.

factory directly offered OMSW series hydraulic motor orbital motor danfoss motorfactory directly offered OMSW series hydraulic motor orbital motor danfoss motorfactory directly offered OMSW series hydraulic motor orbital motor danfoss motorfactory directly offered OMSW series hydraulic motor orbital motor danfoss motorfactory directly offered OMSW series hydraulic motor orbital motor danfoss motor
