high quality rexroth planetary gearbox track drive gearbox GFT60T3

high quality rexroth planetary gearbox track drive gearbox GFT60T3

China high quality rexroth planetary gearbox track drive gearbox GFT60T3 supplier
high quality rexroth planetary gearbox track drive gearbox GFT60T3 supplier high quality rexroth planetary gearbox track drive gearbox GFT60T3 supplier high quality rexroth planetary gearbox track drive gearbox GFT60T3 supplier high quality rexroth planetary gearbox track drive gearbox GFT60T3 supplier high quality rexroth planetary gearbox track drive gearbox GFT60T3 supplier high quality rexroth planetary gearbox track drive gearbox GFT60T3 supplier high quality rexroth planetary gearbox track drive gearbox GFT60T3 supplier high quality rexroth planetary gearbox track drive gearbox GFT60T3 supplier

Large Image :  high quality rexroth planetary gearbox track drive gearbox GFT60T3

Product Details:

Place of Origin: Ningbo
Brand Name: cathyhsu@foxmail.com
Certification: ISO9001
Model Number: GFT60T3 planetary gearbox

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: case
Delivery Time: 3-20 days
Payment Terms: T/T or L/C
Supply Ability: on request
Contact: Cathy
Email: cathyhsu@foxmail.com
Skype: kemercathy
Cell: 008613486645746
Contact Now
Detailed Product Description
Material: Forging Material Planetary Gearbox Max Output Torque: 60000Nm
Ratio: On Request

GFT60T3 Track drive gearbox, final drive, planetary gearbox



Why choose us?



We are the specialised manufacturer of planetary gearbox from China. We have more than 20 years' experiences in designing and manufacturing gearbox. We can offer competitive price of planetary gearbox with factory directly offered price and directly after sale service.



Our factory mass produced Rexroth GFT series compact high speed travel drive from GFT 13T2 to GFT 330T3 (13000-330000 N.m)

high quality rexroth planetary gearbox track drive gearbox GFT60T3
Overview


HYDROTRAC GFT is an ideal driving component for wheel or track driving vehicles, and other moving equipment and widely applied in excavator, spreading machine, drill machine, mobile crusher, engineering machinery, mining, tunnel machinery, agricultural machinery, etc. Meanwhile, different motor connectors and dimensions are available on request. It is an ideal replacement of Rexroth products.


Special Features:
1. Compact two-, three- or four-stage planetary gearboxes
2. Cageless planetary gear bearing
3. Robust main bearing
4. Optimized seals
5. Integr. multi-disc parking brake
6. Optional for mounting Rexroth fixed or variable motors (A2FM/E, A6VM/E, A10VM/E)
7. Interchangeable with Rexroth on performance and dimension.
8. More than 80% components can be interchanged with those of Rexroth (planet gear, Cageless planetary gear bearing, planet carrier, ring gear and so on).

Technical parameters
high quality rexroth planetary gearbox track drive gearbox GFT60T3








Type/Version
Output Torque
T2
Max
Nm
7000
9000
13000
17000
17000
24000

high quality rexroth planetary gearbox track drive gearbox GFT60T3
Ratio

 I
30.9-62.6
38.3-47.6
16.3-60.2
6.4-54
78-102.6
90.1-137.2
high quality rexroth planetary gearbox track drive gearbox GFT60T3
Hydraulic Motor


A10VM45
A10VE45
A2FE56
A6VE55
A10VE63
A10VM45
A2FE63
A6VE55
A2FE56
A6VE55
A2FE63
A10VE45
high quality rexroth planetary gearbox track drive gearbox GFT60T3
Weight without Motor (approx.)

kg
45
67
92
90
105
115
Type/Version


Output Torque
T2
Max
Nm
26000
36000
50000
60000
60000
80000
high quality rexroth planetary gearbox track drive gearbox GFT60T3
Ratio

42.9-62
67-161
66.3-146.4
23
94.8-197
55.5
high quality rexroth planetary gearbox track drive gearbox GFT60T3
Hydraulic Motor


A2FE90
A6VE80
A2FE90
A10VE80
A2FE125
A6VE107
A6VM220
A2VE125
A6VE107
A6VM220
high quality rexroth planetary gearbox track drive gearbox GFT60T3
Weight without Motor (approx.)

kg
155
170
220
205
260
570
Type/Version



Output Torque, crane
T2
Max
Nm
8000
110000
160000
220000
330000

high quality rexroth planetary gearbox track drive gearbox GFT60T3
Ratio

 I
76.7-185.4
95.8-215
161.8-251
97.7-365
168.9-302.4

high quality rexroth planetary gearbox track drive gearbox GFT60T3
Hydraulic Motor


A2FE180
A6VE160
A2FE180
A6VE160
A2FE180
A6VE160
A2FE180
A6VE160
A6VM355
A2FE355
A6VE250

high quality rexroth planetary gearbox track drive gearbox GFT60T3

Weight without Motor (approx.)

kg
405
505
680
1370
1250








Contact Details:

Welcome to contact us:

Contact Cathy

Email: cathyhsu@foxmail.com

Skype: kemercathy

Tel: 0086-134 8664 5746

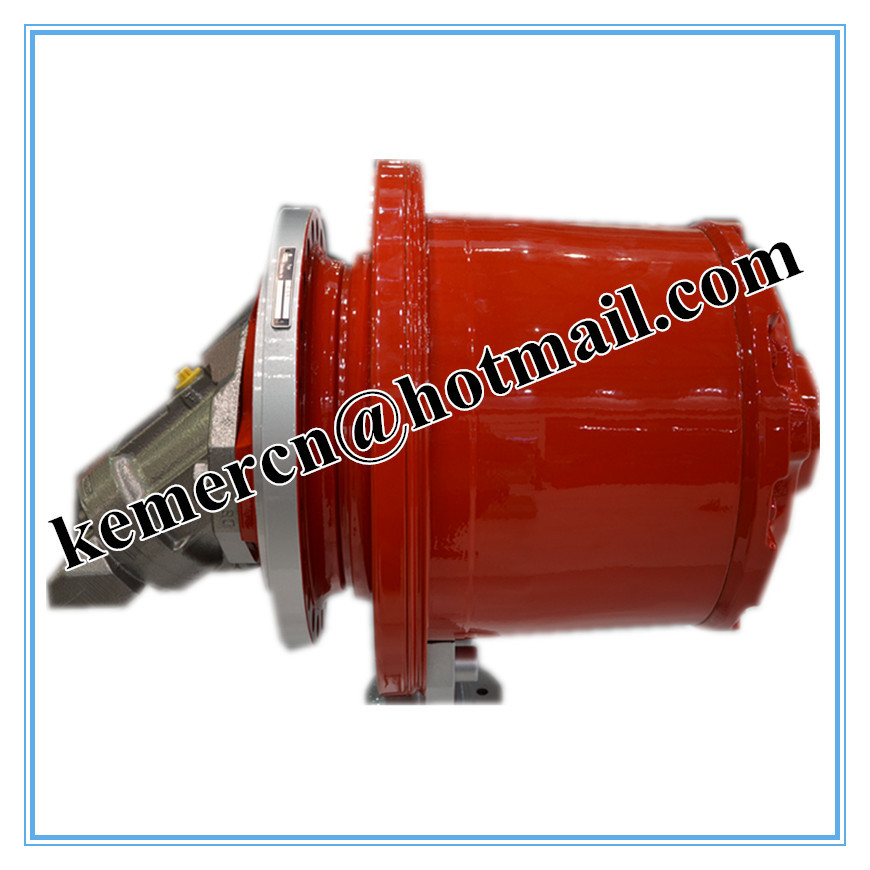

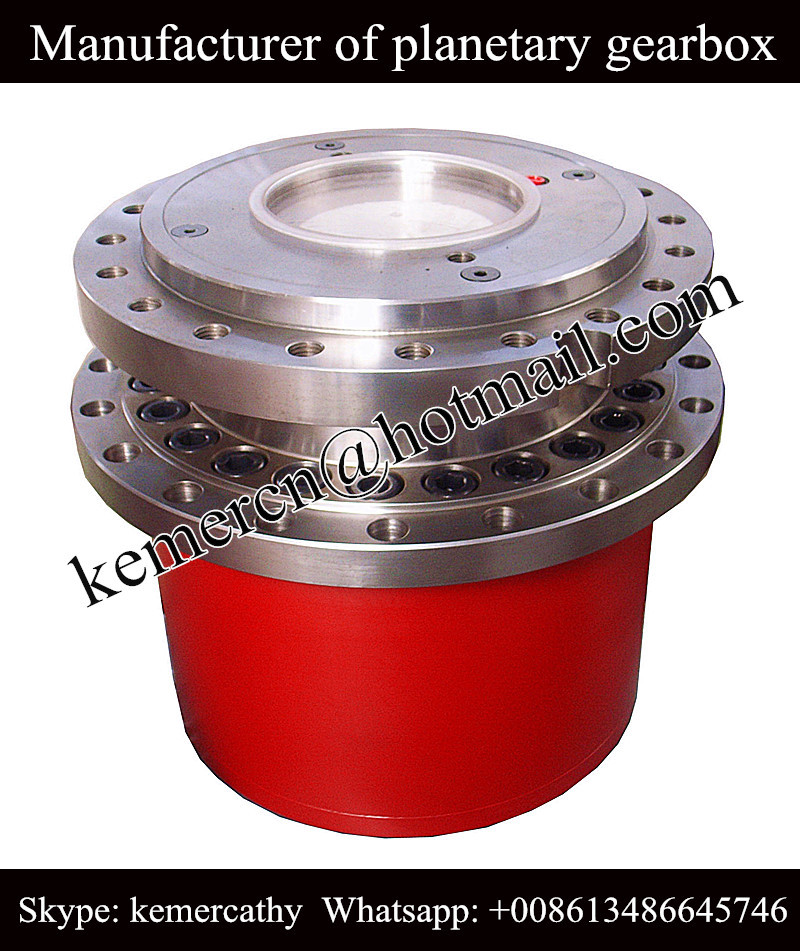

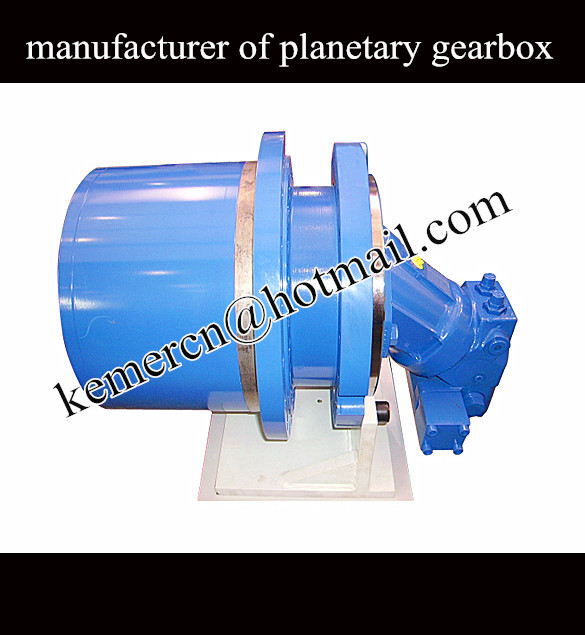

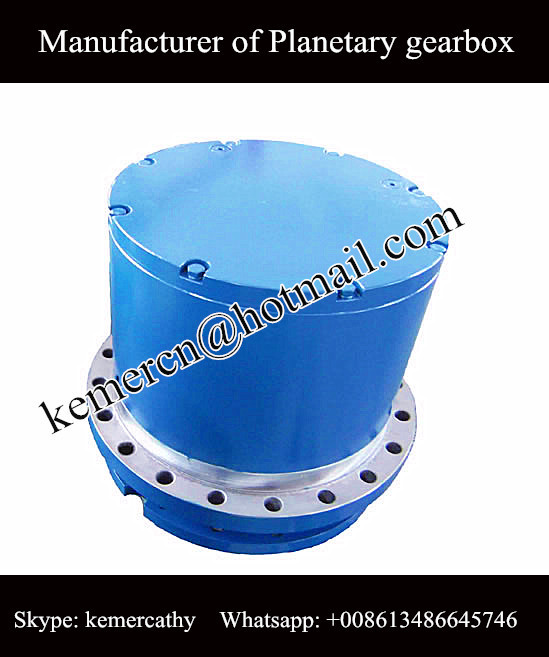

Product picture for reference
