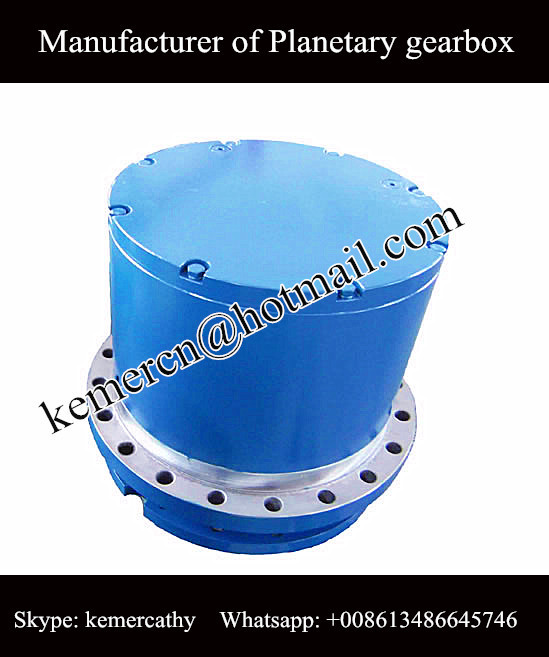

Track drive gearbox for crawler undercarriage

Place of Origin: NINGBO, CHINA
Brand Name: cathyhsu@foxmail.com
Certification: ISO9001
Model Number: GFT series
Minimum Order Quantity: 1 unit
Price: contact us
Packaging Details: plywood case
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: on request
Product Details
Structure: Planetary Gearbox Output Torque: 1000-450,000Nm
Ratio: On Request Interchanged With: Genuine Rexroth GFT Series Travel Drive Gearbox
Leave a Message
Product Description

China track drive gearbox supplier

china track drive gearbox manufacturer

China track drive gearbox factory

china travel drive gearbox manufacturer

track drive gearbox final drive gearbox wheel drive gearbox winch drive gearbox travel drive gearbox rexroth GFT10 GFT17 GFT24  GFT26 GFT36 GFT34 GFT40 GFT50 GFT60 GFT80 GFT110 GFT160 GFT220 GFT330 GFT450 planetary gearboxtrack drive gearbox final drive gearbox wheel drive gearbox winch drive gearbox travel drive gearbox rexroth GFT10 GFT17 GFT24  GFT26 GFT36 GFT34 GFT40 GFT50 GFT60 GFT80 GFT110 GFT160 GFT220 GFT330 GFT450 planetary gearbox


We are the manufacturer of track drive gearbox from China. We can offer the track drive gearbox with rated output torque 1000Nm-450,000Nm.



Our GFT series Travel drive Gearbox is an ideal gear for Crawler Chassis transmission, wheel drive, chain wheel drive. It is widely used in Rotary Drilling Rig track, main and auxiliary winch, Tunneller track, Crawler Crane track motor, excavator track motor, 900 T Beam Carrier wheel drive.



The structure of this track drive gearbox is very compact.  This final drive gearbox can also be used in bad environment.



Our gear is going through harden treatment, heat treatment, quenching and carburization. It is with longlife and harden surface.


Features:

1. compact structure. It can be designed in two stage and three stage gearbox.

2. the bearing can bear little weight of the equipment.

3. easily installation.

4. low noisy

5. working fluently

6. be with multi-disc brake

7. equipped with fixed displacement hydraulic motor or variable displacement hydraulic motor


Brake:

Multi-disc brake

the static braking torque can be be adjusted based on different ratios of gearbox


Design of planetary gearbox:

The design of planetary gearbox is based on many years' experience. The dimension and output torque can be designed based on different applications. The input dimension of gearbox can be adjusted based on different model of motors.


Basically requirements:

The lifetime of planetary gearbox is decided by the working conditions.  This gearbox is used in the temperature -20°c~+90°c. The lifetime is also affected by the changement of the temperature, sea water, working torque, bad oil type, wrong operation, etc.



The selected planetary gearbox should be with higher rated output torque than the exact working torque; The rated pressure should be higher than working pressure. The working pressure for continuous working should be lower than rated pressure about 25%; The intermit working pressure mustn't be higher than norminal pressure. The selected planetary gearbox should be with higher rated speed than exact working speed;




Type/Version GFT 7 T2 GFT 9 T2 GFT 13 T2 GFT 17 T2 GFT 17 T3 GFT 24 T3
Output Torque T2
Max
Nm 7000 9000 13000 17000 17000 24000

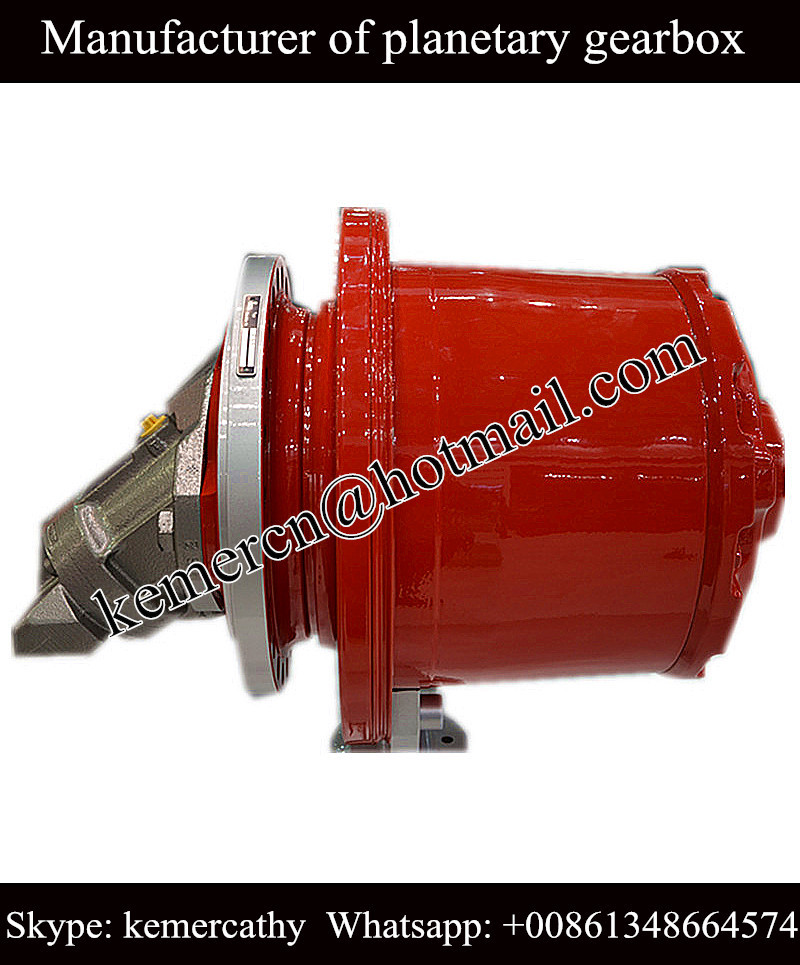

Track drive gearbox for crawler undercarriage 2
Ratio   I 30.9-62.6 38.3-47.6 16.3-60.2 6.4-54 78-102.6 90.1-137.2

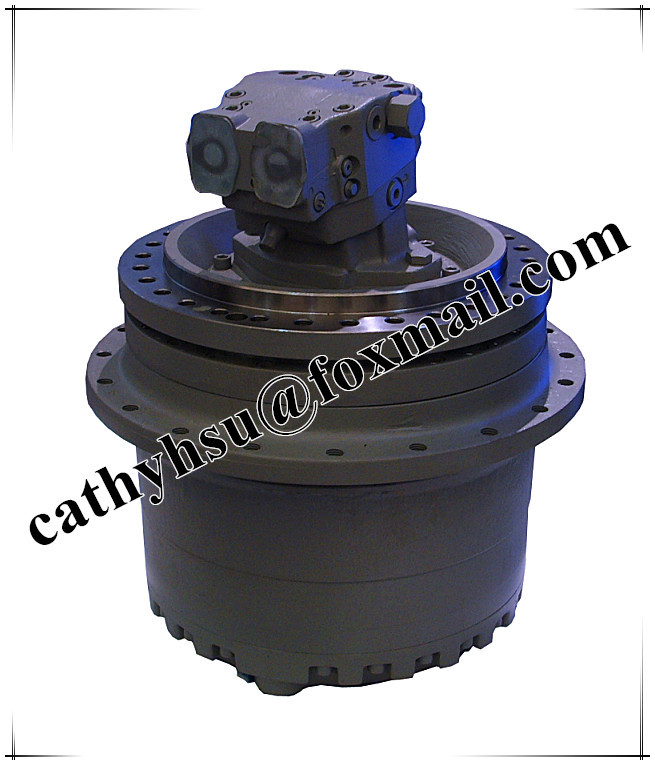

Track drive gearbox for crawler undercarriage 3
Hydraulic Motor     A10VM45 A10VE45 A2FE56
A6VE55
A10VE63
A10VM45
A2FE63
A6VE55
A2FE56
A6VE55
A2FE63
A10VE45

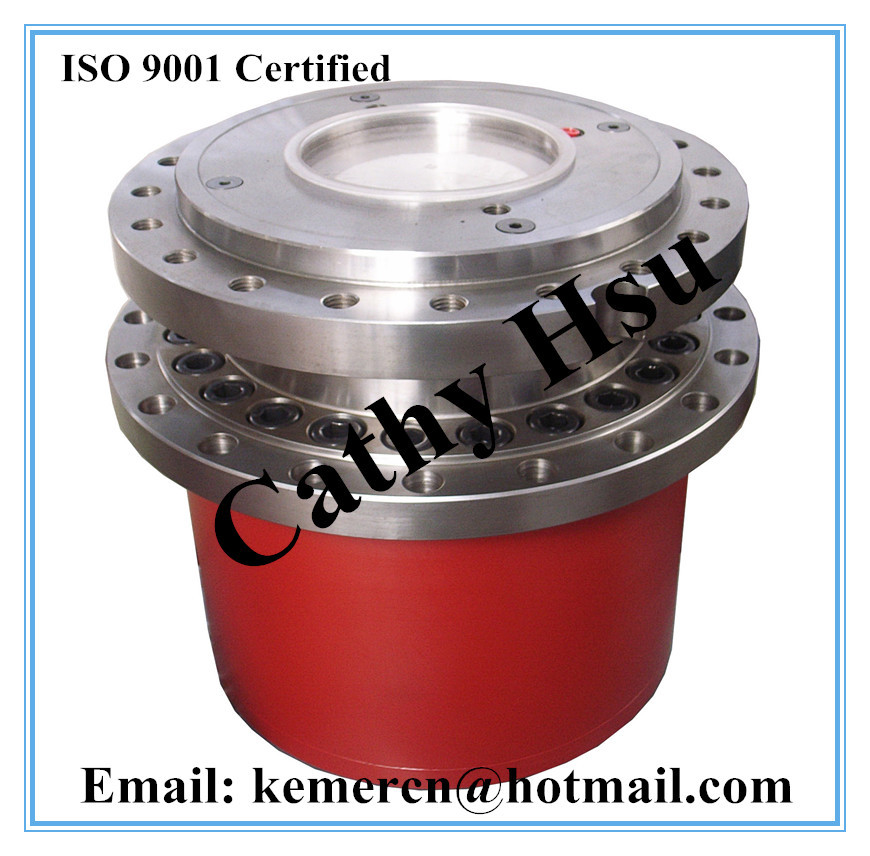

Track drive gearbox for crawler undercarriage 4
Weight without Motor (approx.)   kg 45 67 92 90 105 115
Type/Version     GFT 26 T3 GFT 36 T3 GFT 50 T3 GFT 60 T2 GFT 60 T3 GFT 80 T2
Output Torque T2
Max
Nm 26000 36000 50000 60000 60000 80000

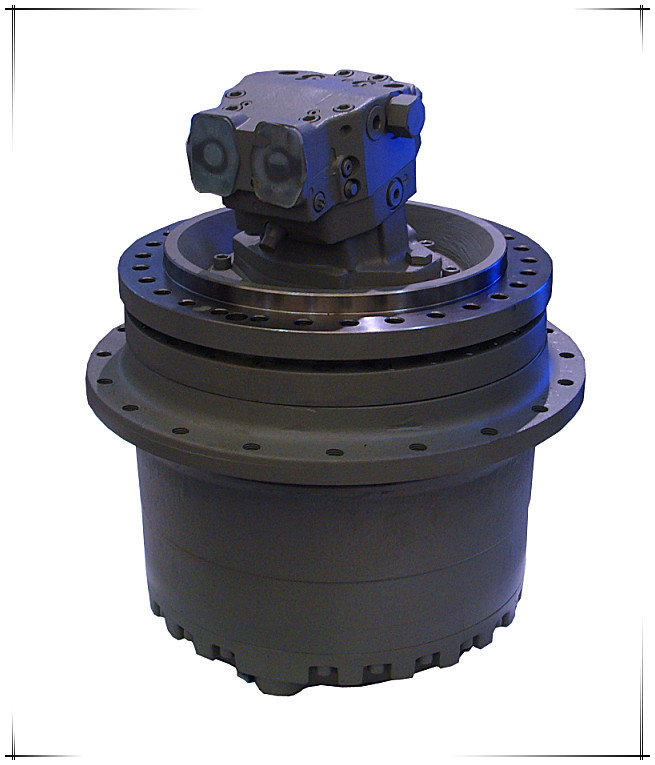

Track drive gearbox for crawler undercarriage 5
Ratio   I 42.9-62 67-161 66.3-146.4 23 94.8-197 55.5

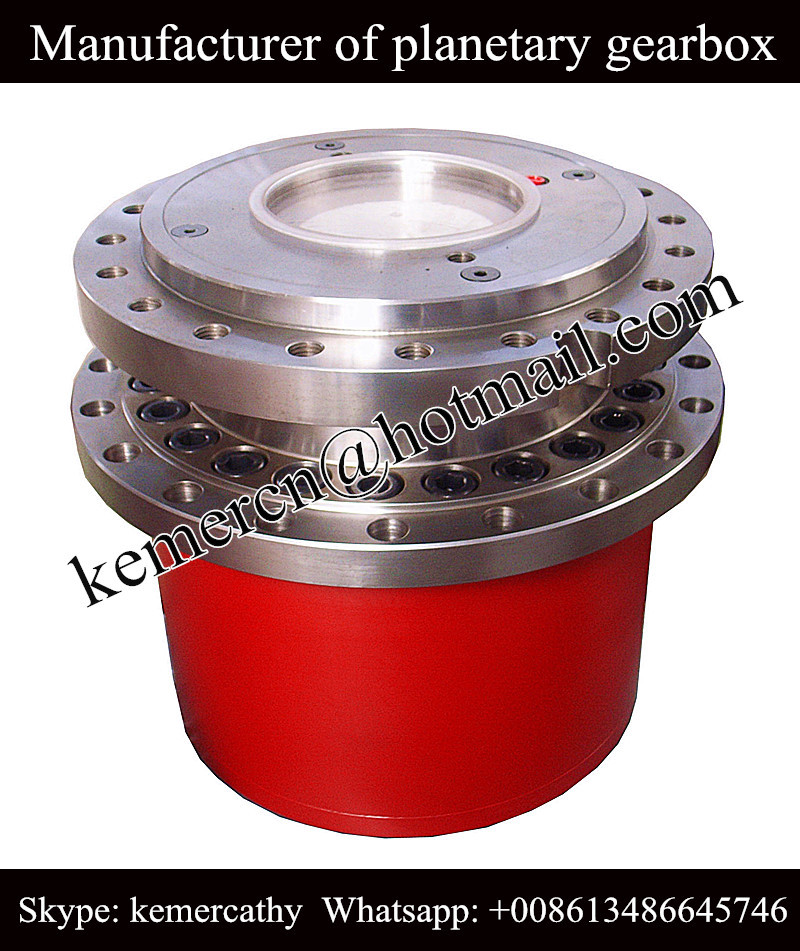

Track drive gearbox for crawler undercarriage 6
Hydraulic Motor     A2FE90
A6VE80
A2FE90
A10VE80
A2FE125
A6VE107
A6VM220 A2VE125
A6VE107
A6VM220

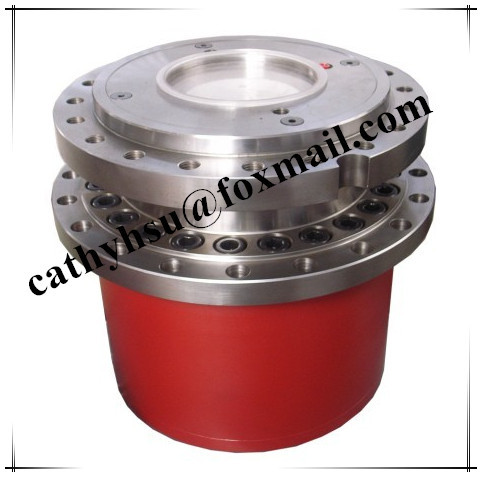

Track drive gearbox for crawler undercarriage 7
Weight without Motor (approx.)   kg 155 170 220 205 260 570
Type/Version     GFT 80 T3 GFT 110 T3 GFT 160 T3 GFT 220 T3 GFT 330 T3
Output Torque, crane T2
Max
Nm 8000 110000 160000 220000 330000

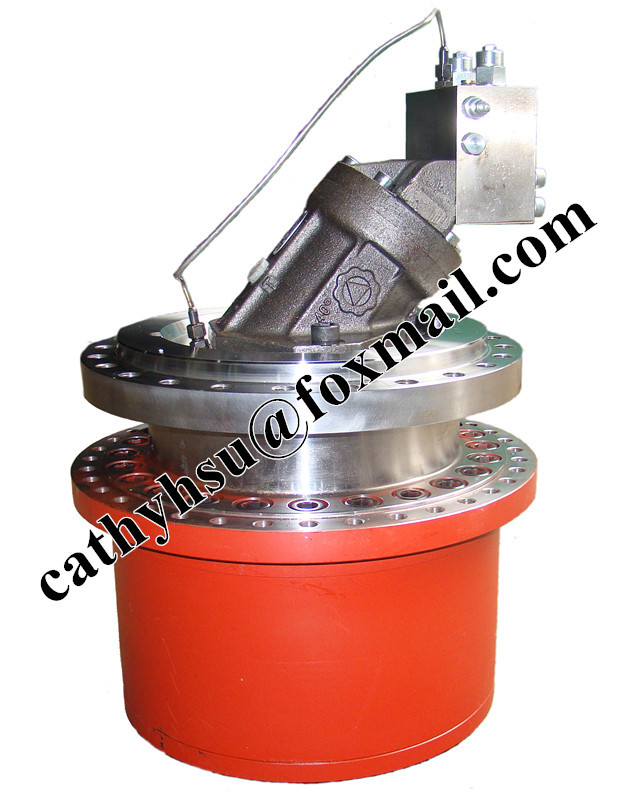

Track drive gearbox for crawler undercarriage 8
Ratio   I 76.7-185.4 95.8-215 161.8-251 97.7-365 168.9-302.4
Track drive gearbox for crawler undercarriage 9
Hydraulic Motor     A2FE180
A6VE160
A2FE180
A6VE160
A2FE180
A6VE160
A2FE180
A6VE160
A6VM355
A2FE355
A6VE250

Track drive gearbox for crawler undercarriage 10

Weight without Motor (approx.)
  kg 405 505 680 1370 1250







Contact Details:

Welcome to contact us:

Contact Cathy

Email: cathyhsu@foxmail.com

Skype: kemercathy

Tel: 0086-134 8664 5746



Product picture for reference
