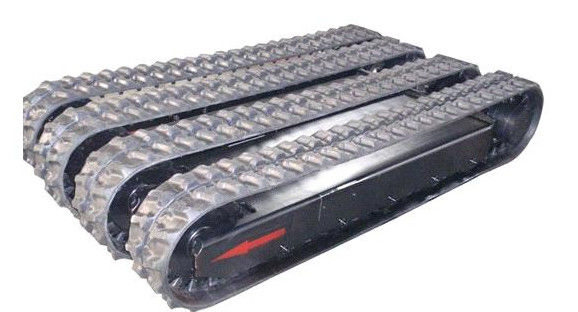

custom built 6 ton rubber track undercarriage

Place of Origin CHINA
Brand Name cathyhsu@foxmail.com
Certification ISO
Model Number RT series rubber crawler undercarriage
Minimum Order Quantity 1 set
Price contact me
Packaging Details pallethttp://mao.ecer.com/index.php?r=product/list
Delivery Time 30 days
Payment Terms L/C, T/T
Supply Ability on request

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Rubber Crawler Chassis Payload Capacity 500-20,000kgs
Travelling Speed 0-5km/hr Application Drilling Rig, Crane, Crusher, Excavator, Etc.
After-sales Service Provided Engineers Available To Service Machinery Anytime Condition 100% New Condition
Name Rubber Crawler Track Undercarriage,Can Be Customized Size Undercarriage/rubber Track Chassis,china Factory Hot Sale Rubber Track Undercarriage
Leave a Message
Product Description

China Rubber crawler chassis manufacturer since 2007



rubber crawler chassis, rubber track undercarriage, rubber tracked undercarriage, rubber crawler undercarriage

We have more than 10 years' experience in designing andmanufacturing various types of track undercarriage for widely application.





Why to choose us:

1. professional technical support

we have experienced engineering teams offering best solution based on your application.

2. the main part of track drive gearbox is manufactured by our own factory

As we all know, the main part of track undercarriage is the track drive gearbox. We are also the manufacturer of planetary gearbox. We are more familiar with the performance of track drive gearbox and can suggest suitable track drive gearbox based on different load capacity.

3. custom design for length*width*height

4. test before delivery

Before delivery, we will do the test for the track undercarriage to check whether it is working fluently.






rubber track undercarriage manufacturer rubber tracked undercarriage crawler undercarriage crawler casss under carriage assembly track system track frame



We are the track undercarriage manufacturer from China. We can offer rubber track undercarriage with payload 500-30000kgs and steel track undercarriage with payload 500-100000kgs.



The dimension (length*width*height) of track undercarriage can be designed based on the special requirements of each customers.



The track drive gearbox of track undercarriage can be Eaton JMV series final drive gearbox, Rexroth GFT track drive gearbox, Doosan TM series track drive gearbox. Or you can choose our own brand final drive gearbox to lower the cost.



Compared with other manufacturer of track undercarriage, we are also the manufacturer of hydraulic products, such as hydraulic motor, hydraulic winch, track drive gearbox and planetary gearbox. We are more familiar with the perofrmance of track drive gearbox so that we can suggest the suitable track drive gearbox for track undercarriage.


We can also offer our own brand dual speed track drive gearbox and single speed track drive gearbox.



For the dual speed final drive gearbox, it is similar to the structure of Eaton final drive gearbox Doosan final drive.





For the single speed final drive gearbox, it is made up of planetary gearbox and orbital motor; planetary gearbox with GM motor or planetary gearbox with bent axis hydraulic motor (interchanged with Rexroth GFT series track drive gearbox with A2FE hydraulic motor). We can suggest one of them for the undercarriage based on different requirements of each customer's.

custom built 6 ton rubber track undercarriage 2


How to choose right track undercarriage for your application?

To make sure that the undercarriage we suggested is suitable for your application, please offer the following detail requirements:

1. Rubber or steel track undercarriage:

2. What is the payload of undercarriage:

Note: it is the weight of machine excluding the weight of undercarriage.

3. length of track undercarriage (mm):

4. width of each side of track undercarriage (mm):

5. height of track undercarriage (mm):

6. total width of track undercarriage (mm):
7. working flow rate per each side of undercarriage (L/min):
8. working pressure (MPa):

9. travelling speed (km/hr):

10. climbing capacity:



Note: for the payload we mentioned, it is the weight carried by the track undercarriage. It is not the complete weight of your machine including the weight of track undercarriage. Please specify it clearly so that we can offer suitable final drive gearbox for the undercarriage with competitive price.


Specification of track undercarriage for reference:



For the following dimension and specification, it is just for your reference, we can also design andmanufacture the RUBBER TRACK UNDERCARRIAGE based on your requirements.
RT-RUBBER TRACK UNDERCARRIAGE
Please note: the load capacity mentioned below is including the weight of undercarriage


MODEL
Dinamic
capacity
Static
capacity
Weight
kg.
Press.Bar
oil flow
L/min
Torque
Nm to
engine
Grad.
Speed
km/h
RT-1500
1200
1500
330
270
17
2000
65%
1.7
RT-2500
2500
3000
380
220
35
4723
65%
2/3.2
RT-3500
3500
4000
650
220
35
4723
65%
2/3.5
RT-5000
5000
6000
900
220
55
8330
65%
2/3.7
RT-6000
6000
7000
1280
220
55
8330
65%
2/3.7
RT-8000
8000
9500
1550
300
82
11700
65%
2.8/4.7



rubber track undercarriage track chassis crawler undercarriage crawler chassis

MODEL
A
Length
B
Center Distance
C
Height
D
Total Width
E
Width of track shoe
F
Height of Cross beam
No. of
roller
RT-1500
1420
1066
350
980
230
165
3+3
RT-2500
1850
1370
480
1220
250
245
4+4
RT-3500
1980
1511
500
1520
300
250
5+5
RT-5000
2500
1950
550
1800
350
265
6+6
RT-6000
2905
2355
550
1800
400
265
7+7
RT-8000
2950
2450
600
1800
400
310
7+7




Application of track undercarriage

drilling machines (core drill, horizontal directional drilling rig, belt engineering drill, and engineering rig), engineering machines, mining, colliery, agricultural and gardening machines.

custom built 6 ton rubber track undercarriage 4


Detail of undercarriage:

Guard cover to protect the track drive gearbox (if required)

Guard cover of track undercarriage


Picture of undercarriage for reference

rubber track undercarriage manufacturer rubber tracked undercarriage crawler undercarriage crawler casss under carriage assembly track system track frame



custom built 6 ton rubber track undercarriage 7
