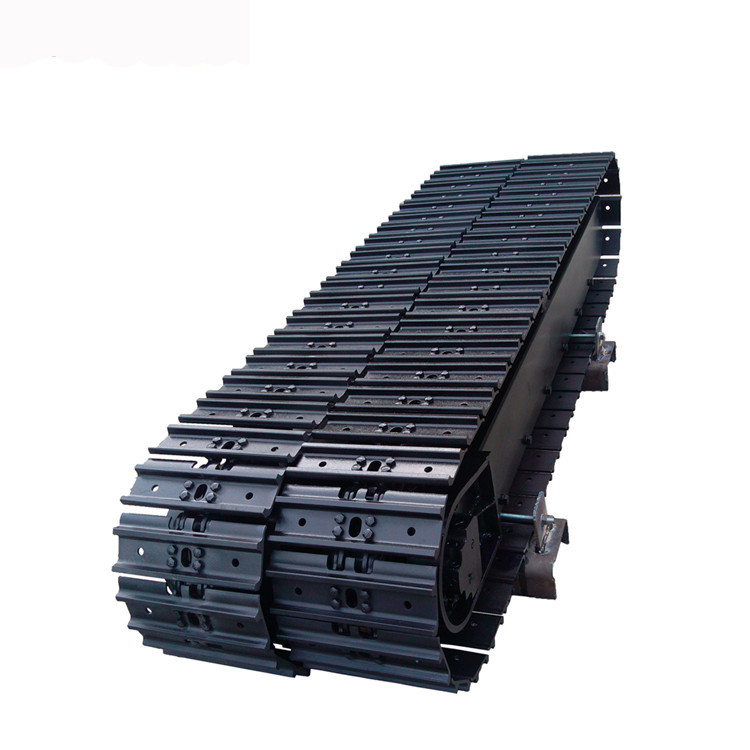

China high quality Steel Crawler undercarriage Manufacturer for construction machinery
| Place of Origin | NINGBO, CHINA |
|---|---|
| Brand Name | kb machinery |
| Certification | ISO9001 |
| Model Number | ST series |
| Minimum Order Quantity | 1 unit |
| Price | contact us |
| Packaging Details | pallet |
| Delivery Time | 20-40 days |
| Payment Terms | L/C, T/T |
| Supply Ability | on request |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel Crawler Base | Application | Drilling Rig, Crusher, Crane, Piling Rig, Scissor Lift, Etc. |
|---|---|---|---|
| Payload | 1-80 Ton | Travelling Speed | 0-5km/hr |
| Warranty | 12 Months |
Product Description
Steel Track undercarriage manufacturer
Steel track undercarriage, Steel track frame, steel track chassis, steel track system, steel crawlerundercarriage, steel tracked undercarriage, drilling rig steel track undercarriage, crusher steel track undercarriage, excavator track undercarriage
Why to choose us?
We are the manufacturer and factory of rubber track undercarriage and steel track undercarriage. We have experienced engineers with more than 10 years' experience in design and manufacturing different types of undercarriage for drilling rig, crusher, shredder, etc.
We are an experienced company specialized in manufacturing steel track undercarriage and rubber track undercarriage. we make custom track systems for your mobility needs, and our track undercarriage can carry up to 50ton,and supporting dual-speed final drive and travel 0-7km/h at grades up to 60%.
Specification of track undercarriage:
1.Load capacity: 500kgs-50,000kgs
2.walking speed: 0-10km/hr
3.travel drive: dual speed final drive or single speed, Rexroth GFT gearbox
6.delivery time: 3-20 days
7.Custom built: we can design and manufacture track undercarriage according to your specificdimension requirements.
Application
Special design catered to customer specifications. With years of experience we can offer the track designflexibility, rapid response and solutions that are always highly effective.
For application on drilling rigs, excavators, crushers, cranes, aerial platform, etc. with high efficiency andadaption of vile working condition.
Customize Solution
We have many professional engineers devoting to design the track undercarriages to meet differentcustomers' requirements. With our years of experience, we can take your concept from prototype toproduction. We are committed to our goal of exceeding your expectations and requirements for quality,reliability, and on-time delivery.
Specification
For the following dimension and specification, it is just for your reference, we can also design andmanufacture the winch based on your requirements.
ST-STEEL TRACK UNDERCARRIAGE
|
MODEL
|
Dinamic
capacity |
Static
capacity |
Weight
kg. |
Press.Bar
|
oil flow
L/min |
Torque
Nm to engine |
Grad.
|
Speed
km/h |
|
ST-3500
|
3500
|
4000
|
750
|
220
|
35
|
4723
|
65%
|
2/3.2
|
|
ST-6000
|
6000
|
7000
|
1350
|
220
|
55
|
8330
|
65%
|
2/3.7
|
|
ST-8000
|
8000
|
9500
|
1830
|
300
|
82
|
11700
|
65%
|
2.8/4.7
|
|
ST-10000
|
10000
|
11300
|
2350
|
350
|
100
|
14800
|
65%
|
3/5.1
|
|
ST-12000
|
12000
|
15000
|
2950
|
350
|
124
|
22500
|
65%
|
2.9/4.9
|
|
ST-15000
|
15000
|
18000
|
3300
|
350
|
140
|
24000
|
65%
|
3.2/5.5
|
|
ST-20000
|
20000
|
25000
|
4300
|
350
|
220
|
38000
|
65%
|
3.5/5.4
|
|
ST-30000
|
30000
|
37000
|
6500
|
330
|
260
|
59000
|
65%
|
2.5/4.6
|
|
ST-40000
|
40000
|
480000
|
7100
|
350
|
290
|
72800
|
65%
|
2.3/4.3
|
| MODEL |
A
Length |
B
Center Distance |
C
Height |
D
Total Width |
E
Width of track shoe |
F
Height of Cross beam |
No. of
roller |
|
ST-3500
|
2030
|
1500 |
485
|
1800
|
300
|
225
|
4+4
|
|
ST-6000
|
2467
|
1950
|
549
|
1700
|
300-400
|
240
|
5+5
|
|
ST-8000
|
2783
|
2265
|
548
|
1800
|
400-450
|
255
|
8+8
|
|
ST-10000
|
3800
|
3200
|
600
|
1700
|
400-500
|
280
|
9+9
|
|
ST-12000
|
3282
|
2575
|
720
|
2000
|
400-600
|
345
|
9+9
|
|
ST-15000
|
3666
|
2923
|
753
|
2000
|
500-800
|
360
|
8+8
|
|
ST-20000
|
4065
|
3323
|
786
|
|
500-800
|
375
|
8+8
|
|
ST-30000
|
4530
|
3730
|
836
|
|
500-800
|
405
|
9+9
|
|
ST-40000
|
4888
|
4090
|
880
|
|
500-800
|
420
|
10+10
|
FAQ
Q:Is your company a trader or manufacturer?A:We are the manufacturer. We make steel track undercarriage and rubber track undercarriages. Steel (2 ton to 120 ton),Rubber(0.5 to 10 ton). |
Q:Can you supply customized service?A:Yes,we can customize the undercarriage according to your demand.And OEM Is also available. |
Q:How's your products?A:We have professional engineers and experienced team.And with many years experience in this field,our product are wildly welcomed by many customers. |
Q:How is your price?A:Our price is based on the quality,we give the competitive price to every customer! |
Q:How is your after-sale Service?
|
Q: How to get customized service?A: We need info as below: 1.Rubber or steel track undercarriage 2.Loading capacity(including the track undercarriage) Or payload 3.Length 4.Width 5.Height 6.Travel speed 7.Climbing Capacity |
