custom built 20 ton free fall hydraulic winch free fall winch from china factory

custom built 20 ton free fall hydraulic winch free fall winch from china factory

China custom built 20 ton free fall hydraulic winch free fall winch from china factory supplier
custom built 20 ton free fall hydraulic winch free fall winch from china factory supplier custom built 20 ton free fall hydraulic winch free fall winch from china factory supplier custom built 20 ton free fall hydraulic winch free fall winch from china factory supplier custom built 20 ton free fall hydraulic winch free fall winch from china factory supplier custom built 20 ton free fall hydraulic winch free fall winch from china factory supplier custom built 20 ton free fall hydraulic winch free fall winch from china factory supplier custom built 20 ton free fall hydraulic winch free fall winch from china factory supplier custom built 20 ton free fall hydraulic winch free fall winch from china factory supplier custom built 20 ton free fall hydraulic winch free fall winch from china factory supplier custom built 20 ton free fall hydraulic winch free fall winch from china factory supplier custom built 20 ton free fall hydraulic winch free fall winch from china factory supplier

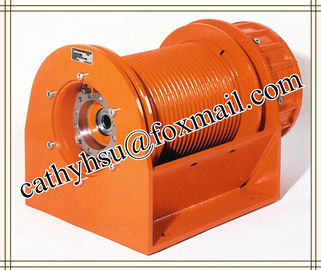

Large Image :  custom built 20 ton free fall hydraulic winch free fall winch from china factory

Product Details:

Place of Origin: Ningbo, China
Brand Name: cathyhsu@foxmail.com
Certification: ISO9001; SGS
Model Number: skype: kemercathy

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: case
Delivery Time: 45 days
Payment Terms: T/T or L/C
Supply Ability: on request
Contact Now
Detailed Product Description
Capacity: 1-100 Ton Power Source: Hydraulic Winch With Free Fall Function
Application: Mining Machinery, Construction Machinery

20 ton Free fall hydraulic winch manufacturer

free fall winch directly offered from China factory

free fall winch hydraulic winch hoisting winch mine winch industrial winch

We are the manufacturer of hydraulic winch from China. We have more than 20 years in designing and manufacturing hydraulic winch. This is ZGW/ZGH series hydraulic winch is the winch with free fall function. With brake in the last stage, the ZGW/ZGH series free fall hydraulic winch can realize the emergency rapid free fall function. Thus it is widely used in pipe layer, crawler crane, moto crane, engineering driller, grab windlass, gravity crusher and any other hoisting equipment.


Product Name free fall hydraulic winch
Color on request
Pull force 0.5-100 ton hydraulic winch
Rope speed 0-300m/min
Driving device any type of hydraulic motor
Used for pipe layer, crawler crane, moto crane, engineering driller, grab windlass, gravity crusher and any other hoisting equipment






 Features of free fall winch:

custom built 20 ton free fall hydraulic winch free fall winch from china factory One-or two-stage planetary gearboxes, smooth operation and reasonable structure.
custom built 20 ton free fall hydraulic winch free fall winch from china factory Normally closed friction type brake, high braking torque, safe and reliable operating.
custom built 20 ton free fall hydraulic winch free fall winch from china factory Small volume, compact structure and high transmission efficiency.
custom built 20 ton free fall hydraulic winch free fall winch from china factory Radial piston hydraulic motor with long life operating.
custom built 20 ton free fall hydraulic winch free fall winch from china factory Mounting frame is available on request.
custom built 20 ton free fall hydraulic winch free fall winch from china factory Balance valve, shuttle valve, limit switch and other accessories are also available on request.
custom built 20 ton free fall hydraulic winch free fall winch from china factory With brake in the last stage, it can realize the emergency rapid free fall function.




Specification of free fall hydraulic winch

Model W.L.L.
1st layer
W.L.L.
top layer
Rope Speed Rope diam. Capacity of Rope Working Pressure Max Supply Oil Flow
  kgf kgf m/min mm m Mpa L/min
ZGH5000 5000 4200 40 20 87 14 175
ZGH6000 6000 4900 40 21.5 68 14 215
ZGH8000 8000 6700 40 24 100 14 270
ZGH10000 10000 7800 40 28 90 13 380
ZGW5000 5000 4167 40 20 87 16 160
ZGW6000 6000 4922 40 21.5 68 16 190
ZGW8000 8000 6698 40 24 100 16 260
ZGW10000 10000 7846 40 28 90 16 310

FAQ



Q: Are you trading company or manufacturer ?

A: We are factory of hydraulic winch.

Q: How long is your delivery time?

A: Generally it is 5-25 days if the goods is the standard dimension.

Q: Can you custom make the product?

A: Yes, all dimensions and specifications of hydraulic winch can be designed and made based on your requirements.

Q: How to order?

A: To make sure the offered hydraulic winch is suitable for your application, please offer the following details:

1. pull force of inner layer (kg):

2. rope speed of inner layer (m/min):

3. rope diameter (mm):

4. length of rope (m):

5. drum diameter (mm):

6. with or without groove:

7. with or without brake:


If you have another question for the hydraulic winch, pls feel free to contact us.

custom built 20 ton free fall hydraulic winch free fall winch from china factory

Picture for reference:

free fall winch hydraulic winch hoisting winch marine winch crane winch drilling rig winch

free fall winch hydraulix winch hoisting winch marine winch crane winch drilling rig winchfree fall winch hydraulic winch hoisting winch marine winch crane winch drilling rig winchfree fall winch hydraulic winch hoisting winch marine winch crane winch drilling rig winchfree fall winch hydraulic winch hoisting winch marine winch crane winch drilling rig winchfree fall winch hydraulic winch hoisting winch mine winch industrial winch



Factory overview

hydraulic winch hoisting winch dredger winch 1-60 tonhydraulic winch hoisting winch dredger winch 1-60 ton

Package


high quality radial piston hydraulic motor (GM series)
