cutom built 35 ton hydraulic winch for marine application

Place of Origin Ningbo, China
Brand Name cathyhsu@foxmail.com
Certification ISO9001
Model Number AF350
Minimum Order Quantity 1 SET
Price negotiation
Packaging Details standard export plywood case
Delivery Time 30 days
Payment Terms L/C, T/T
Supply Ability on request
Product Details
Product Hoisting Hydraulic Winch Pull Force Of Inner Layer 35 Ton/350KN
Rope Speed 30M/MIN
Leave a Message
Product Description

35 ton hydraulic winch manufacturer



Get hydraulic winch directly from China factory

hydraulic winch hydraulic winches industrial winch marine winch dredger winch


We are the manufacturer of hydraulic winch from Ningbo, China.



We have more than 20 years' experiences in designing and manufacturing different kinds of hydraulic winch for widely application.



Production procedure: designing the drawing-confirmation by customer-production



For the hydraulic winch, it is the custom product. Each customer has different requirements for the pull force, rope speed, rope diameter, drum capacity and dimension of hydraulic winch. We have experienced engineering tems who can offer special design for each application.



How to get suitable hydraulic winch?

To make sure the winch we offered is suitable for your application, please offer:

1. pull force of inner layer (kg):

2. rope speed of inner layer (m/min):

3. rope diameter (mm):

4. length of rope (m):

5. drum diameter (mm):

6. with or without groove:

7. with or without brake:



For more, please send inquiry to:

Cathy Hsu

Sales manager

Email: cathyhsu@foxmail.com

Skype: kemercathy

Whatsapp/wechat/tel: +86 134 8664 5746





Here what we describe is our AF series hydraulic winch which is driven by high speed hydraulic motor.



AF series high-power hoisting winches are widely used in ship crane, harbor, petroleum, drill machine, engineering machinery, geological exploration and construction machinery.It is the best choice for those situations which requires large power, high speed and high security.

Special Features:
1.Two-or three-stage planetary gearboxes, smooth operation and reasonable structure.
2.Normally closed friction type brake, high braking torque, safe and reliable operating.
3.Small volume, compact structure and high transmission efficiency.
4.Axial fixed or variable hydraulic motor with long life operating.
5.Mounting frame is available on request.
6.Balance valve, shuttle valve, limit switch and other accessories are also available on request.



Model Pull Force (KN) Rope Speed (m/min) Diameter of rope (mm) Capacity of rope (m) Working pressures diff. (Mpa) Flow Rate (L/min)
1st layer top layer
AF5700 5700 4500 60 16 107 25 160
AF7700 7700 6000 52 18 118 25 180
AF9600 9600 7500 43 20 118 25 180
AF12800 12800 9800 43 24 118 27 220
AF15000 15000 12800 39 24 110 25 220
AF18500 18500 14600 85.3 28 162 27 380
AF25000 25000 19500 48.1 30 162 27 380
AF30000 30000 23000 32 32 169 30 380
AF45000 45000 34700 32 42 169 30 380

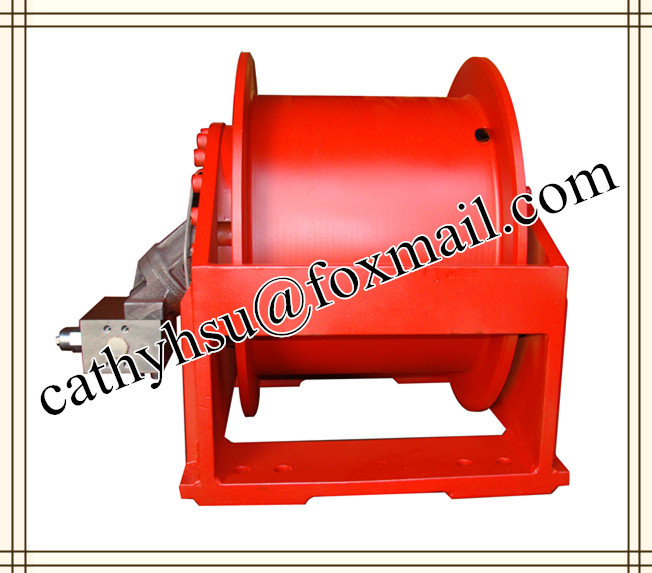

Picture of hydraulic winch for reference:

hydraulic winch
