BG series hydraulic winch

China BG series hydraulic winch supplier
BG series hydraulic winch supplier BG series hydraulic winch supplier BG series hydraulic winch supplier

Large Image :  BG series hydraulic winch

Product Details:

Place of Origin: china
Brand Name: kemercn@hotmail.com
Certification: ISO9001; CE; SGS
Model Number: kemercn@hotmail.com

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: case
Delivery Time: 10 days
Payment Terms: T/T or L/C
Contact Now
Detailed Product Description
Capacity: 1-100 Ton Power Source: Hydraulic
Application: Cranes

DOWNLOAD: BG series hydraulic winch


hydraulic winch manufacturer, hydraulic winches, hoisting winch, marine winch, drilling rig winch, crane winch, power winch, hydraulic operated winch, dredger winch

Company Introduction:
We are the China-based manufacturer of hydraulic winch (hydraulic winch, hoisting winch, wireline winch, cargo winch, drilling rig winch, crane winch, marine winch, dredger winch, hydraulic winches, compact winch, free fall hydraulic winch) with more than 10 years experience in designing and manufacturing different types of hydraulic winches fro widely application.
We are the group company in China, the registered capacity is 6,000,000 and the factory area is about 6000sqm. Staffed with 150 employees, including 10 engineers.
The products are widely used in engineering machinery, ship-, petroleum-, mining industry, metallurgical machinery, light industry, agriculture, enviroment.
Now we are stepping into the international market, our products are being exported to Germany, USA, CANADA, ITALY, NETHERLAND, KOREAM, SINGAPORE, TURKEY, AUSTRALIA, INDIA, INDONESIA and others.

Product Introduction:

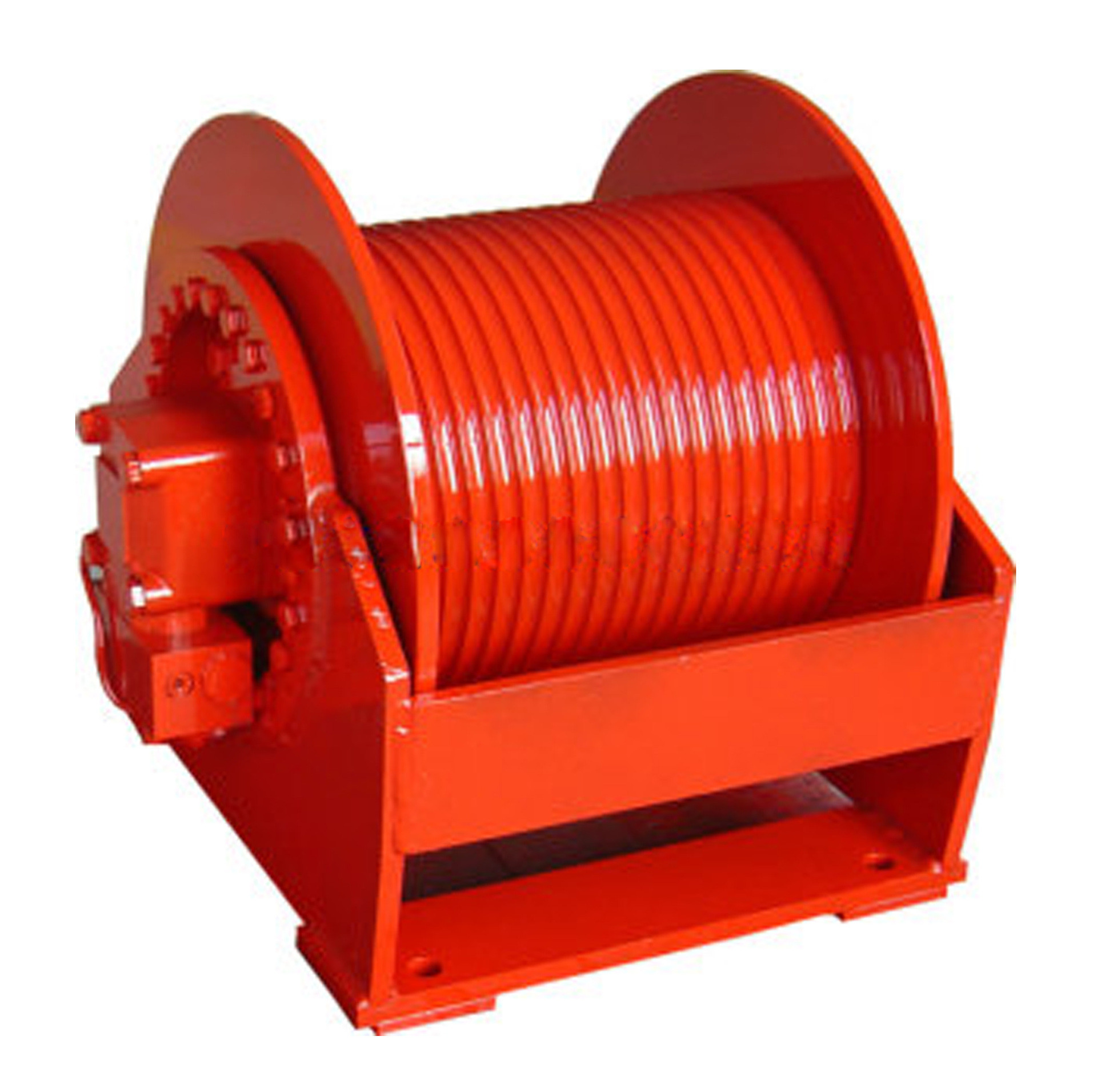

For the winch in the picture, it is our BG series hydraulic winch, which are widely used in overhead working truck, lorry mounted crane, drill machine, mirror crane, ship equipments and so on. It is the best choice for those situations that requires the narrow space and light weight.


Special Features
Floating type planetary gearbox, smooth operation and reasonable structure.
♦ Normally closed friction type brake, high braking torque, safe and reliable operating.
♦ Small volume, compact structure and high transmission efficiency.
♦ Long life Danfoss hydraulic orbit motor
♦ Mounting frame is available on request.
♦ Balance valve, shuttle valve, limit switch and other accessories are also available on request.

Detail Specification:

For the following specification, it is for your reference, we can also design and manufacture the winch with pull force up to 60 ton based on your requirements.

Model

Pull Force (KN)

Rope Speed (m/min)

Diameter of rope (mm)

Capacity of rope (m)

Working pressures diff. (Mpa)

Flow Rate (L/min)

1st layer

top layer

BG500

500

380

63

6

67

14

40

BG800

800

680

54

8

53

14

50

BG1100

1100

870

41

8

53

14

50

BG1300

1300

1000

45

9

48

14

55

BG1500

1500

1200

42

10

60

21

55

BG2000

2000

1600

35

10

60

21

55

BG2500

2500

2000

52

12

52

21

100

BG2600

2600

2000

54

12

76

21

100

Picture of winch



Hydraulic winch for boom crane
