20 ton pulling hydraulic winch recovery winch towing winch truck winch pulling winch

Place of Origin China
Brand Name kemercathy
Certification ISO 9001
Model Number YJP series
Minimum Order Quantity 1 SET
Price NEGOTIATION
Packaging Details CASE
Delivery Time 20 DAYS
Payment Terms T/T. L/C
Supply Ability on request
Product Details
Capacity 20 TON Power Source Hydraulic
Application ATV/UTV Contact Cathy
Email Kemercn@hotmail.com Skype Kemercathy
Leave a Message
Product Description

Factory of pulling hydraulic winch



We are the manufacturer of self-recovery winch, hydrauic winch, pulling winch, truck winch, towing winch, wrecker winch, recovery hydraulic winch, Hydraulic Truck Winch For Wagon Tugger Garbage Truck Winch with compacted design. multidisc type friction brake

with more than 10 years experience in designing and manufacturing different types of hydraulic winches for widely application.


Company Introduction

We are the group company in China, the registered capacity is 6,000,000 and the factory area is about 6000sqm. Staffed with 150 employees, including 10 engineers.

The products are widely used in engineering machinery, ship-, petroleum-, mining industry, metallurgical machinery, light industry, agriculture, enviroment.
Now we are stepping into the international market, our products are being exported toGermany, USA, CANADA, ITALY, NETHERLAND, KOREAM, SINGAPORE, TURKEY, AUSTRALIA, INDIA, INDONESIA and others.
Specification of hydraulic winch:
1. Pull force of 1st layer: 1-60 ton
2. Rope speed: 0-200m/min
3. Option for the winch with groove or without groove

Product description

HJW series Hydraulic Compact Truck Winch For Wagon Tugger Winch which mainly consists planetary decelerator, hydraulic motor, brake, drum, etc. the winch makes the operation more stable and the structure more reasonable, its use multidisc type friction brake makes the brake torque large, safe and reliable.


Application of YJP series winch

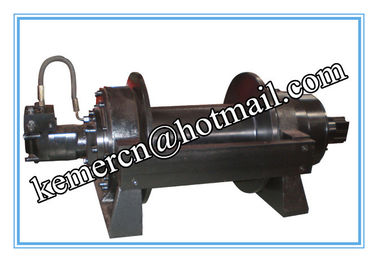

For the winch in the picture, it is out YJP series recovery hydraulic winch.

This type of winches are used on rescue and recovery vehicles, cargo truck, trailers and heavy equipment transporters, armoured flighting vehicles, off-load vehicles, tractors, loaders and earthmovers, fire engines, high tension line stringing rigs and many other applications.


Features


1. Full-float typed planetary gear reducer makes the operation more stable, the structure more reasonable.
2. Adopt multidisc-typed friction normally-closed arrester makes the brake torque larger, safer and more reliable.
3. The product is featured by its small size, compact construction and high transmission efficiency.
4. Free wire releasing function.
5. Adopt motor with long use life.
6. The installation bracket can be manufactured according to the customer's requirement.
7. According to the requirement of customers, manufacture the balance valve and shuffle valve special for this winch.
8. Adopt manual, pneumatic clutch equipment.
9. Manufacture according to GJB82-86 National Military Hydraulic Winch Standard.



Specification of winch

Raed line pull :196KN / 20 ton / 45000lbs

Oil pressure : 17MPa /170bar

Oil flow:120L/min

LIne speed :6m/min

Drum capacity: 45m

Layers number :4

Drum diameter :400*210*340mm

Wire rope diameter: Φ26

Weight: 285kg
