custom built 6 ton free fall hydraulic winch with free fall function

Place of Origin Ningbo, China
Brand Name cathyhsu@foxmail.com
Certification ISO9001; SGS
Model Number skype: kemercathy
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details case
Delivery Time 45 days
Payment Terms T/T or L/C
Supply Ability on request

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity 1-100 Ton Power Source Hydraulic Winch With Free Fall Function
Application Mining Machinery, Construction Machinery
Leave a Message
Product Description

Free fall hydraulic winch manufacturer

free fall hydraulic winch hoisting winch crane winch piling rig winch

We are the manufacturer of hydraulic winch from China. We have more than 20 years in designing and manufacturing hydraulic winch. This is ZGW/ZGH series hydraulic winch is the winch with free fall function. With brake in the last stage, the ZGW/ZGH series free fall hydraulic winch can realize the emergency rapid free fall function. Thus it is widely used in pipe layer, crawler crane, moto crane, engineering driller, grab windlass, gravity crusher and any other hoisting equipment.




 Application

pipe layer, crawler crane, motor crane, engineering driller, grab windlass, gravity crusher and any other hoisting equipment.




 Features:

custom built 6 ton free fall hydraulic winch with free fall function 1 One-or two-stage planetary gearboxes, smooth operation and reasonable structure.
custom built 6 ton free fall hydraulic winch with free fall function 1 Normally closed friction type brake, high braking torque, safe and reliable operating.
custom built 6 ton free fall hydraulic winch with free fall function 1 Small volume, compact structure and high transmission efficiency.
custom built 6 ton free fall hydraulic winch with free fall function 1 Radial piston hydraulic motor with long life operating.
custom built 6 ton free fall hydraulic winch with free fall function 1 Mounting frame is available on request.
custom built 6 ton free fall hydraulic winch with free fall function 1 Balance valve, shuttle valve, limit switch and other accessories are also available on request.
custom built 6 ton free fall hydraulic winch with free fall function 1 With brake in the last stage, it can realize the emergency rapid free fall function.




Specification of free fall hydraulic winch

Model W.L.L.
1st layer
W.L.L.
top layer
Rope Speed Rope diam. Capacity of Rope Working Pressure Max Supply Oil Flow
  kgf kgf m/min mm m Mpa L/min
ZGH5000 5000 4200 40 20 87 14 175
ZGH6000 6000 4900 40 21.5 68 14 215
ZGH8000 8000 6700 40 24 100 14 270
ZGH10000 10000 7800 40 28 90 13 380
ZGW5000 5000 4167 40 20 87 16 160
ZGW6000 6000 4922 40 21.5 68 16 190
ZGW8000 8000 6698 40 24 100 16 260
ZGW10000 10000 7846 40 28 90 16 310

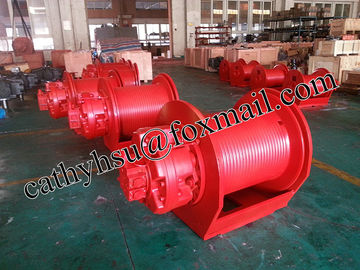

Picture for reference:

free fall winch hydraulic winch hoisting winch marine winch crane winch drilling rig winch

free fall winch hydraulix winch hoisting winch marine winch crane winch drilling rig winchfree fall winch hydraulic winch hoisting winch marine winch crane winch drilling rig winchfree fall winch hydraulic winch hoisting winch marine winch crane winch drilling rig winchfree fall winch hydraulic winch hoisting winch marine winch crane winch drilling rig winch



Factory overview

hydraulic winch hoisting winch dredger winch 1-60 tonhydraulic winch hoisting winch dredger winch 1-60 tonhydraulic winch hoisting winch dredger winch 1-60 ton

Package


high quality radial piston hydraulic motor (GM series)
