China drilling rig Hydraulic Winch Manufacturer (5 ton, 8 ton, 10 ton, 15 ton, 20 ton, 30 ton)

Place of Origin china
Brand Name cathyhsu@foxmail.com
Certification ISO9001
Model Number AF series
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details case
Delivery Time 3-20 days
Payment Terms T/T or L/C
Supply Ability on request
Product Details
Pull Force 500-60,000kgs Rope Speed 0-200m/min
Dimension Custom Built Contact Cathy
Skype Kemercathy Email Cathyhsu@foxmail.com
Whatsapp/tel +8613486645746
Leave a Message
Product Description
China hydraulic winch manufacturer

Get hydraulic winch from china factory directly

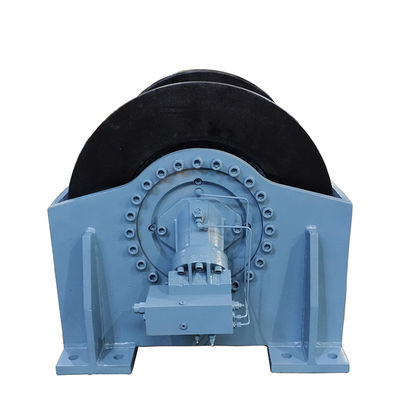

China drilling rig Hydraulic Winch Manufacturer (5 ton, 8 ton, 10 ton, 15 ton, 20 ton, 30 ton) 0

hydraulic winch manufacturer, hydraulic winches, hoisting winch, marine winch, drilling rig winch, crane winch, power winch, hydraulic operated winch, dredger winch
hydraulic winch hoisting winch marine winch boat winch dredger winch crane winch

We are the manufacturer of hydraulic winch from Ningbo, China.



We have more than 20 years' experiences in designing and manufacturing different kinds of hydraulic winch for widely application.



Production procedure: designing the drawing-confirmation by customer-production



For the hydraulic winch, it is the custom product. Each customer has different requirements for the pull force, rope speed, rope diameter, drum capacity and dimension of hydraulic winch. We have experienced engineering tems who can offer special design for each application.



How to get suitable hydraulic winch?

To make sure the winch we offered is suitable for your application, please offer:

1. pull force of inner layer (kg):

2. rope speed of inner layer (m/min):

3. rope diameter (mm):

4. length of rope (m):

5. drum diameter (mm):

6. with or without groove:

7. with or without brake:



For more, please send inquiry to:

Cathy Hsu

Sales manager

Email: cathyhsu@foxmail.com

Skype: kemercathy

Whatsapp/wechat/tel: +86 134 8664 5746





Here what we describe is our AF series hydraulic winch which is driven by high speed hydraulic motor.



Product description

We are the China-based manufacturer of hydraulic winch (hydraulic winch, hoisting winch, wireline winch, cargo winch, drilling rig winch, crane winch, marine winch, dredger winch, hydraulic winches, compact winch, free fall hydraulic winch) with more than 10 years experience in designing and manufacturing different types of hydraulic winches fro widely application.

We are the group company in China, the registered capacity is 6,000,000 and the factory area is about 6000sqm. Staffed with 150 employees, including 10 engineers.

The products are widely used in engineering machinery, ship-, petroleum-, mining industry, metallurgical machinery, light industry, agriculture, enviroment.

Now we are stepping into the international market, our products are being exported to Germany, USA, CANADA, ITALY, NETHERLAND, KOREAM, SINGAPORE, TURKEY, AUSTRALIA, INDIA, INDONESIA and others.

Description of hydraulic winch AF series

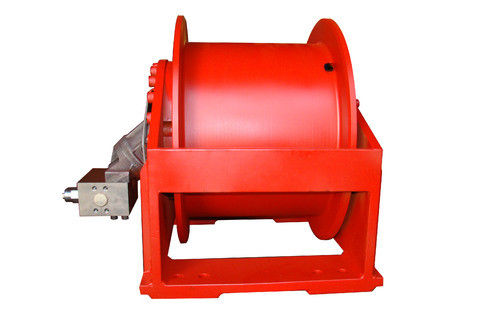

For the winch in the picture, it is our AF series hydraulic winch, which is widely used in ship crane, harbor, petroleum, drill machine, engineering machinery, geological exploration and construction machinery. It is the best choice for those situations which requires large power, high speed and high security.

Special Features:

1.Two-or three-stage planetary gearboxes, smooth operation and reasonable structure.
2.Normally closed friction type brake, high braking torque, safe and reliable operating.
3.Small volume, compact structure and high transmission efficiency.
4.Axial fixed or variable hydraulic motor with long life operating.
5.Mounting frame is available on request.
6.Balance valve, shuttle valve, limit switch and other accessories are also available on request.


Specification


For the folowing specification in the table, it is for your reference. We can also manufacture the winch with pull force up to 60,000kgs based on your requirements.

hydraulic winch manufacturer 1-60 ton
Model Pull Force (KN) Rope Speed (m/min) Diameter of rope (mm) Capacity of rope (m) Working pressures diff. (Mpa) Flow Rate (L/min)
1st layer toplayer
AF5700 5700 4500 60 16 107 25 160
AF7700 7700 6000 52 18 118 25 180
AF9600 9600 7500 43 20 118 25 180
AF12800 12800 9800 43 24 118 27 220
AF15000 15000 12800 39 24 110 25 220
AF18500 18500 14600 85.3 28 162 27 380
AF25000 25000 19500 48.1 30 162 27 380
AF30000 30000 23000 32 32 169 30 380
AF45000 45000 34700 32 42 169 30 380

hydraulic winch hoisting winch marine winch dredger winch industrial winch ladder winch cargo winch swing winch drilling rig winch crane winch

Structure of hydraulic winch


hydraulic winch hoisting winch marine winch dredger winch industrial winch ladder winch cargo winch swing winch drilling rig winch crane winch

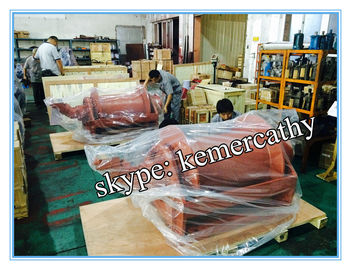

Factory overview


hydraulic winch hoisting winch marine winch dredger winch industrial winch ladder winch cargo winch swing winch drilling rig winch crane winch hydraulic winch hoisting winch marine winch dredger winch industrial winch ladder winch cargo winch swing winch drilling rig winch crane winch

Application of hydraulic winch

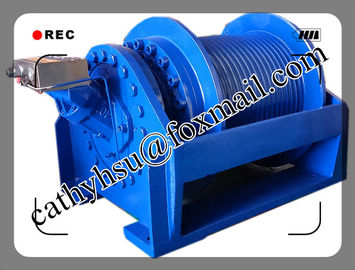

China drilling rig Hydraulic Winch Manufacturer (5 ton, 8 ton, 10 ton, 15 ton, 20 ton, 30 ton) 6

Contact information





China drilling rig Hydraulic Winch Manufacturer (5 ton, 8 ton, 10 ton, 15 ton, 20 ton, 30 ton) 7
