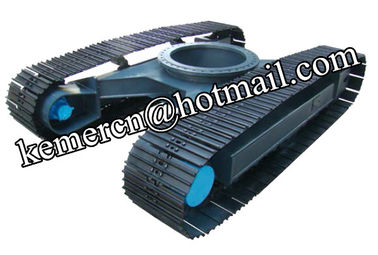

steel track undercarriage steel crawler undercarriage with swivel joint
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xSteel Track undercarriage manufacturer
Steel track undercarriage, Steel track frame, steel track chassis, steel track system, steel crawlerundercarriage, steel tracked undercarriage, drilling rig steel track undercarriage, crusher steel trackundercarriage, excavator track undercarriage
We are an experienced company specialized in manufacturing steel track undercarriage and rubber track undercarriage. we make custom track systems for your mobility needs, and our track undercarriage can carry up to 50ton,and supporting dual-speed final drive and travel 0-7km/h at grades up to 60%.
Specification of track undercarriage:
If you have any question or need any help, please feel free to contact with us. Our service team is ready toprovide best service for you.
Specification
MODEL
|
Dinamic
capacity |
Static
capacity |
Weight
kg. |
Press.Bar
|
oil flow
L/min |
Torque
Nm to engine |
Grad.
|
Speed
km/h |
ST-3500
|
3500
|
4000
|
750
|
220
|
35
|
4723
|
65%
|
2/3.2
|
ST-6000
|
6000
|
7000
|
1350
|
220
|
55
|
8330
|
65%
|
2/3.7
|
ST-8000
|
8000
|
9500
|
1830
|
300
|
82
|
11700
|
65%
|
2.8/4.7
|
ST-10000
|
10000
|
11300
|
2350
|
350
|
100
|
14800
|
65%
|
3/5.1
|
ST-12000
|
12000
|
15000
|
2950
|
350
|
124
|
22500
|
65%
|
2.9/4.9
|
ST-15000
|
15000
|
18000
|
3300
|
350
|
140
|
24000
|
65%
|
3.2/5.5
|
ST-20000
|
20000
|
25000
|
4300
|
350
|
220
|
38000
|
65%
|
3.5/5.4
|
ST-30000
|
30000
|
37000
|
6500
|
330
|
260
|
59000
|
65%
|
2.5/4.6
|
ST-40000
|
40000
|
480000
|
7100
|
350
|
290
|
72800
|
65%
|
2.3/4.3
|
MODEL |
A
Length |
B
Center Distance |
C
Height |
D
Total Width |
E
Width of track shoe |
F
Height of Cross beam |
No. of
roller |
ST-3500
|
2030
|
1500 |
485
|
1800
|
300
|
225
|
4+4
|
ST-6000
|
2467
|
1950
|
549
|
1700
|
300-400
|
240
|
5+5
|
ST-8000
|
2783
|
2265
|
548
|
1800
|
400-450
|
255
|
8+8
|
ST-10000
|
3800
|
3200
|
600
|
1700
|
400-500
|
280
|
9+9
|
ST-12000
|
3282
|
2575
|
720
|
2000
|
400-600
|
345
|
9+9
|
ST-15000
|
3666
|
2923
|
753
|
2000
|
500-800
|
360
|
8+8
|
ST-20000
|
4065
|
3323
|
786
|
|
500-800
|
375
|
8+8
|
ST-30000
|
4530
|
3730
|
836
|
|
500-800
|
405
|
9+9
|
ST-40000
|
4888
|
4090
|
880
|
|
500-800
|
420
|
10+10
|
Picture of undercarriage for reference
