Custom design 1-60 ton Steel track undercarriage (KST series)

Place of Origin Ningbo
Brand Name kemercn@hotmail.com
Certification ISO9001
Model Number KST series
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details pallet
Delivery Time 3-20 days
Payment Terms T/T or L/C
Supply Ability on request

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Payload Capacity 1-60 Ton Travelling Speed 0-10km/hr
Dimension Custom Built Contact Cathy
Mail Kemercn@hotmail.com
High Light

steel track undercarriage

,

steel track system

,

steel crawler undercarriage

Leave a Message
Product Description

Buy the track undercarriage directly from the factory

Steel Track undercarriage manufacturer

Steel crawler undercarriage assembly factory


steel track undercarriage, steel track system, steel track frame, steel crawler undercarriage, steel crawler chasis, steel crawler track undercarriage, drilling rig steel track undercarriage, crusher track undercarriage, undercarriage assembly



We are an experienced company specialized in manufacturing steel track undercarriage and rubber track undercarriage. we make custom track systems for your mobility needs, and our track undercarriage can carry up to 50ton,and supporting dual-speed final drive and travel 0-7km/h at grades up to 60%.

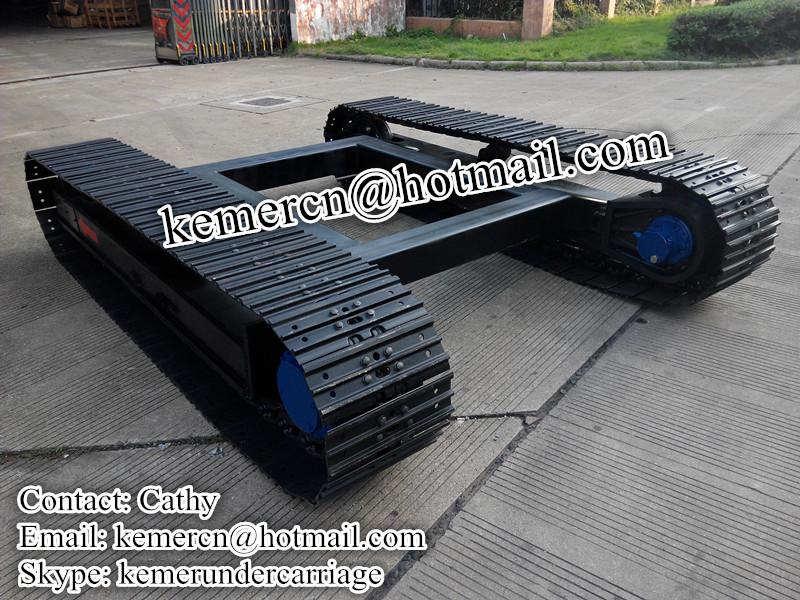

Custom design 1-60 ton Steel track undercarriage (KST series) 0

Specification of track undercarriage:


1.Load capacity: 500kgs-50,000kgs
2.walking speed: 0-10km/hr
3.travel drive: dual speed final drive or single speed, Rexroth GFT gearbox
6.delivery time: 3-20 days
7.Custom built: we can design and manufacture track undercarriage according to your specificdimension requirements.

Application


Special design catered to customer specifications. With years of experience we can offer the track designflexibility, rapid response and solutions that are always highly effective.
For application on drilling rigs, excavators, crushers, cranes, aerial platform, etc. with high efficiency andadaption of vile working condition.
Customize Solution
We have many professional engineers devoting to design the track undercarriages to meet differentcustomers' requirements. With our years of experience, we can take your concept from prototype toproduction. We are committed to our goal of exceeding your expectations and requirements for quality,reliability, and on-time delivery.
Competitive Price

We can provide our track undercarriage with most competitive price, great quality and best service.

If you have any question or need any help, please feel free to contact with us. Our service team is ready toprovide best service for you.



Detail Specification


For the following dimension and specification, it is just for your reference, we can also design andmanufacture the STEEL TRACK UNDERCARRIAGE based on your requirements.

ST-STEEL TRACK UNDERCARRIAGE
MODEL
Dinamic
capacity
Static
capacity
Weight
kg.
Press.Bar
oil flow
L/min
Torque
Nm to
engine

Grad.
Speed
km/h
ST-3500
3500
4000
750
220
35
4723
65%
2/3.2
ST-6000
6000
7000
1350
220
55
8330
65%
2/3.7
ST-8000
8000
9500
1830
300
82
11700
65%
2.8/4.7
ST-10000
10000
11300
2350
350
100
14800
65%
3/5.1
ST-12000
12000
15000
2950
350
124
22500
65%
2.9/4.9
ST-15000
15000
18000
3300
350
140
24000
65%
3.2/5.5
ST-20000
20000
25000
4300
350
220
38000
65%
3.5/5.4
ST-30000
30000
37000
6500
330
260
59000
65%
2.5/4.6
ST-40000
40000
480000
7100
350
290
72800
65%
2.3/4.3


Custom design 1-60 ton Steel track undercarriage (KST series) 1

MODEL
A
Length
B
Center Distance
C
Height
D
Total Width
E
Width of track shoe
F
Height of Cross beam
No. of
roller
ST-3500
2030
1500
485
1800
300
225
4+4
ST-6000
2467
1950
549
1700
300-400
240
5+5
ST-8000
2783
2265
548
1800
400-450
255
8+8
ST-10000
3800
3200
600
1700
400-500
280
9+9
ST-12000
3282
2575
720
2000
400-600
345
9+9
ST-15000
3666
2923
753
2000
500-800
360
8+8
ST-20000
4065
3323
786

500-800
375
8+8
ST-30000
4530
3730
836

500-800
405
9+9
ST-40000
4888
4090
880

500-800
420
10+10


Custom design 1-60 ton Steel track undercarriage (KST series) 2

FAQ

1. Are you the manufacturer or trader?

We are the manufacturer with more than 20 years experience engaged in designing and manufacturing of undercarriage.

2. How long is the delivery?

Usually it is 20 days for the production.

3. What's the warranty of your product?

We can offer you 12 months quality guarantee period after receipt of product.

4. Can you custom make the product?

Yes, all dimensions and specifications can be designed and made based on your requirements.

5. How to order?

To make sure the offered undercarriage is suitable for your application, please offer the following details:

1. Rubber or steel track undercarriage:

2. What is the payload of undercarriage:

Note: it is the weight of machine excluding the weight of undercarriage.

3. length of track undercarriage (mm):

4. width of each side of track undercarriage (mm):

5. height of track undercarriage (mm):

6. total width of track undercarriage (mm):
7. working flow rate per each side of undercarriage (L/min):
8. working pressure (MPa):

9. travelling speed (km/hr):

10. climbing capacity:
