Intermot NHM70 Series hydraulic motor (NHM70-5000, 5400, 6000, 6300,7000)

Place of Origin Ningbo
Brand Name cathyhsu@foxmail.com
Certification ISO9001
Model Number NHM series
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details case
Delivery Time 10 days
Payment Terms T/T or L/C
Supply Ability on request
Product Details
Replace Intermot NHM70 Series Hydraulic Motor Type Radial Piston Type High Torque Low Speed Motor
Leave a Message
Product Description
hydraulic motor directly offered from China factory

We are the manufacturer of hydraulic motor, not a trader. Get hydraulic motor directly from our factory



INTERMOT NHM70 series hydraulic motor, Intermot motor

Model NAM Series
Replace for Intermot NHM Series, Denison, Kawasaki, Staff HMB series, Rexroth MR series
Intermot Displacement 213-10019 ml/r
Torque 935_36667 N. M



Introduction:
NAM series bent axle connecting rod type motor has such characteristics as: High mechanical efficiency and good reliability, thus it can be widely applied in hydraulic and transmission systems of plastics machinery, light industrial machinery, heavy type metallurgical machinery, petroleum and coal mining machinery, lifting and transportation equipment, ship's deck machinery, geological prospecting equipments, etc.


Features:
1 As the product adopts eccentric crankshaft and five-piston structure with comparatively low frequency, it has low noise characteristic;
2 It has big startup torque, perfect stability at low speed, so it can stably operate at very low speed.
3 The patented plane compensation port plate has perfect reliability and almost no leakage. The piston bushing is sealed by seal ring, so it has comparatively high volume efficiency.
4 The crankshaft and the connecting rod are supported by roller, so it has very high mechanical efficiency;
5 The rotational direction is reversible, the output shaft allows endure certain radial and axial force;
6 It has comparatively high power mass ratio.



Technical parameters:

Type

Displacement
(ml/r)

Pressure(MPa)

Torque(N.m)

Speed Range
(r/min)

Weight
(kg)

Rated Pressure

Max Pressure

Rated Torque

Specific Torque
(N.m/MPa)

NAM70-5000

4968

20

25

14626

731

1-160

550

NAM70-5400

5452

20

25

16125

806

1-160

NAM70-6000

5984

20

25

17697

885

0.5-125

NAM70-6300

6540

18

22.5

17408

967

0.5-125

NAM70-7000

7122

16

20

16849

1053

0.5-125

Dimension:

Intermot NHM70 Series hydraulic motor (NHM70-5000, 5400, 6000, 6300,7000) 0

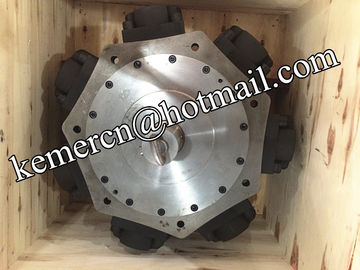

Pictures for reference:

Intermot NHM70 Series hydraulic motor (NHM70-5000, 5400, 6000, 6300,7000) 1
