Product Winch Drive Gearbox Interchanged With GFT36W2 GFT36W3 Winch Gearbox
Assembled With A2FE, A2FM Hydraulic Motor Dimension Custom Design Based On Customer Requirements
Leave a Message
Product Description

Planetary gearbox manufacturer from China

Applied for hydraulic winch

Used as winch drive gearbox




GFT36W2, GFT36W3 winch drive gearbox

Our factory mass produced Rexroth GFT series compact high speed travel drive from GFT 13T2 to GFT 330T3 (13000-330000 N.m)


Overview


MOBILEX GFT-W is an ideal driving component for hoisting mechanism. It has been widely applied in winding gear of truck crane, crawler crane, ship crane and harbor crane. Because of its compact structure, it can be installed in reel for saving space. Meanwhile, different motor connectors and dimensions are available on request. It is an ideal replacement of Rexroth products.


Special Features:
1.  Compact two-, three- or four-stage planetary gearboxes
2.  Cageless planetary gear bearing
3.  Robust main bearing
4.  Optimized seals
5.  Integr. multi-disc parking brake
6.  Optional for mounting Rexroth fixed or variable motors (A2FM/E, A6VM/E, A10VM/E)
7.  Interchangeable with Rexroth on performance and dimension.
8.  More than 80% components can be interchanged with those of Rexroth (planet gear, Cageless planetary gear bearing, planet carrier, ring gear and so on).

Technical parameters
Type/Version
    GFT 0013 W2 GFT 0017 W2 GFT 0017 W3 GFT 0024W3 GFT 0026 W2
Output Torque
T2
max
Nm
9500
14000
14000
19000
18000
winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 0
Ratio

I
16.3-37.6
26.4-45.4
77.9-102.6
90.1-137.2
42.9-62
winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 1
Hydraulic Motor


A2FE63
A6VE55
A2FE63
A6VE55
A2FE63
A6VE55
A2FE63
A6VE55
A2FE90
A6VE107
winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 2
Cable force

KN
 50
67
74
99
84
winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 3
Weight without Motor
(approx.)

kg
85
105

115
130
140
Type/Version
    GFT 0036 W3 GFT 0040 W2 GFT 0050 W3 GFT 0060 W3 GFT 0080 W3
Output Torque
T2
max
Nm
26000
27000
37500
42500
67000
winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 4
Ratio

I
67-138.9
35.9-59.1
84.2-146.4
63.8-169.9
61.3-185.4
winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 5
Hydraulic Motor


A2FE90
A6VE80
A2FE125
A6VE160
A2FE125
A6VE160
A2FE90
A2FM250
A6VE107
A6VM250
A2FE180
A2FM200
A6VE160
A6VM250
winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 6
Cable force

KN
118
108
150
164
231
winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 3
Weight without Motor
(approx.)

kg
155
219
238
230
430
Type/Version
    GFT 0110 W3 GFT 0160 W3 GFT 0220 W3 GFT 0330 W3
Output Torque
T2
max
Nm
100000
140000
200000
275000

winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 5
Ratio

I
79.5-215
161.8-251
97.7-293
168.9-302.4

winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 9
Hydraulic Motor


A2FE180
A2FM250
A6VE160
A6VM250
A2FE180
A6VE160
A2FE180
A2FM200
A6VE160
A6VM250
A2FE250
A6VE250

winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 5
Cable force

KN
300
373
471
595

winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 3
Weight without Motor
(approx.)

kg
515
680
850
1380

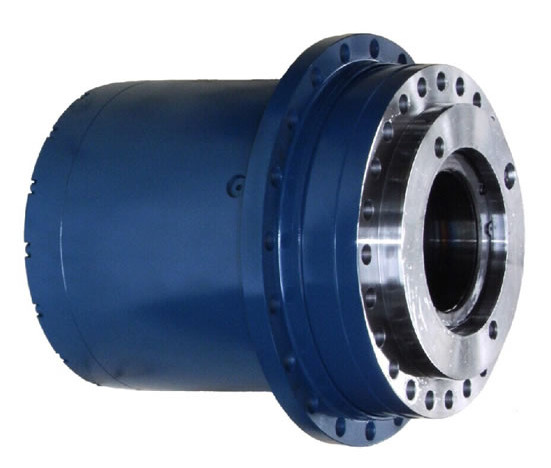

Product picture for reference

 winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 12winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 13winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 14winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 15winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 16winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 17winch drive gearbox GFT36W2 GFT36W3 series planetary gearbox from China factory 18
