Place of Origin Ningbo
Brand Name cathyhsu@foxmail.com
Certification ISO9001
Model Number GFT220T3 series
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details case
Delivery Time 3-20 days
Payment Terms T/T or L/C
Supply Ability on request
Product Details
Type Rexroth Planetary Gearbox Torque 220000Nm
Replace Rexroth GFT Planetary Gearbox
Leave a Message
Product Description

Planetary gearbox with output torque 220000Nm



Interchanged with Rexroth GFT220T2, GFT220T3 track drive gearbox final drive gearbox travel drive gearbox



Our factory mass produced Rexroth GFT series compact high speed travel drive from GFT 13T2 to GFT 330T3 (13000-330000 N.m)



GFT13T2, GFT17T2, GFT17T3, GFT24T3, GFT26T2, GFT36T3, GFT50T3, GFT60T3, GFT80T3, GFT110T3, GFT160T3, GFT220T3 rexroth planetary gearbox track drive gearbox final drive gearbox wheel drive gearbox winch drive gearbox rexroth gearbox


Overview

HYDROTRAC GFT is an ideal driving component for wheel or track driving vehicles, and other moving equipment and widely applied in excavator, spreading machine, drill machine, mobile crusher, engineering machinery, mining, tunnel machinery, agricultural machinery, etc. Meanwhile, different motor connectors and dimensions are available on request. It is an ideal replacement of Rexroth products.


Special Features:
1. Compact two-, three- or four-stage planetary gearboxes
2. Cageless planetary gear bearing
3. Robust main bearing
4. Optimized seals
5. Integr. multi-disc parking brake
6. Optional for mounting Rexroth fixed or variable motors (A2FM/E, A6VM/E, A10VM/E)
7. Interchangeable with Rexroth on performance and dimension.
8. More than 80% components can be interchanged with those of Rexroth (planet gear, Cageless planetary gear bearing, planet carrier, ring gear and so on).

Technical parameters
Travel drive gearbox GFT220T3 series planetary gearbox track drive gearbox 0












Type/Version GFT 7 T2 GFT 9 T2 GFT 13 T2 GFT 17 T2 GFT 17 T3 GFT 24 T3
Output Torque T2
Max		 Nm 7000 9000 13000 17000 17000 24000
Ratio   I 30.9-62.6 38.3-47.6 16.3-60.2 6.4-54 78-102.6 90.1-137.2
Hydraulic Motor     A10VM45 A10VE45 A2FE56
A6VE55
A10VE63
A10VM45		 A2FE63
A6VE55		 A2FE56
A6VE55		 A2FE63
A10VE45
Weight without Motor (approx.)   kg 45 67 92 90 105 115
Type/Version     GFT 26 T3 GFT 36 T3 GFT 50 T3 GFT 60 T2 GFT 60 T3 GFT 80 T2
Output Torque T2
Max		 Nm 26000 36000 50000 60000 60000 80000
Ratio   I 42.9-62 67-161 66.3-146.4 23 94.8-197 55.5
Hydraulic Motor     A2FE90
A6VE80		 A2FE90
A10VE80		 A2FE125
A6VE107		 A6VM220 A2VE125
A6VE107		 A6VM220
Weight without Motor (approx.)   kg 155 170 220 205 260 570
Type/Version     GFT 80 T3 GFT 110 T3 GFT 160 T3 GFT 220 T3 GFT 330 T3
Output Torque, crane T2
Max		 Nm 8000 110000 160000 220000 330000
Ratio   I 76.7-185.4 95.8-215 161.8-251 97.7-365 168.9-302.4
Hydraulic Motor     A2FE180
A6VE160		 A2FE180
A6VE160		 A2FE180
A6VE160		 A2FE180
A6VE160
A6VM355		 A2FE355
A6VE250
Weight without Motor (approx.)   kg 405 505 680 1370 1250

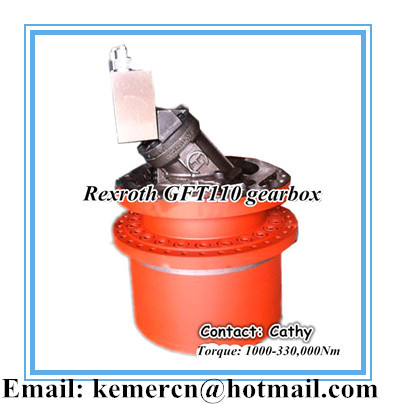

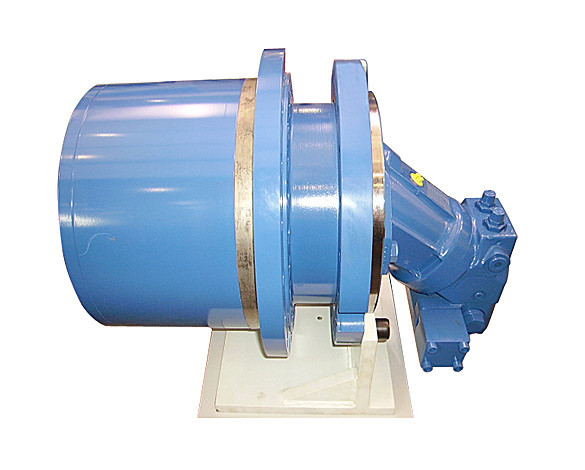

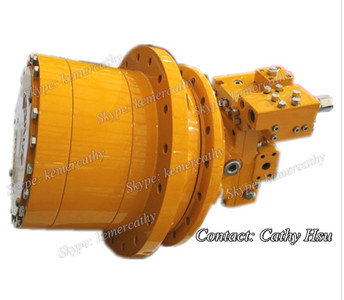

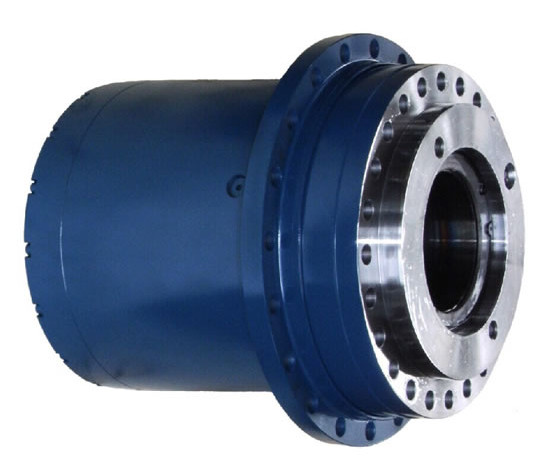

Product picture for reference

GFT7T2 GFT9T2 GFT13T2 GFT17T2 GFT17T3 GFT24T3 GFT26T3 GFT36T3 GFT50T3 GFT60T2 GFT60T3 GFT80T2 GFT80T3 GFT110T3 GFT160T3 GFT220T3 GFT330T3 PLANETARY GEARBOX rexroth gearbox track drive gearbox winch drive gearbox wheek drive gearboxGFT7T2 GFT9T2 GFT13T2 GFT17T2 GFT17T3 GFT24T3 GFT26T3 GFT36T3 GFT50T3 GFT60T2 GFT60T3 GFT80T2 GFT80T3 GFT110T3 GFT160T3 GFT220T3 GFT330T3 PLANETARY GEARBOX rexroth gearbox track drive gearbox winch drive gearbox wheek drive gearboxGFT7T2 GFT9T2 GFT13T2 GFT17T2 GFT17T3 GFT24T3 GFT26T3 GFT36T3 GFT50T3 GFT60T2 GFT60T3 GFT80T2 GFT80T3 GFT110T3 GFT160T3 GFT220T3 GFT330T3 PLANETARY GEARBOX rexroth gearbox track drive gearbox winch drive gearbox wheek drive gearbox
