Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox

Place of Origin Ningbo
Brand Name cathyhsu@foxmail.com
Certification ISO9001
Model Number GFT220T3 series
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details case
Delivery Time 3-20 days
Payment Terms T/T or L/C
Supply Ability on request

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

GFT220T3 track drive gearbox  rexroth gearbox

Our factory mass produced Rexroth GFT series compact high speed travel drive from GFT 13T2 to GFT 330T3 (13000-330000 N.m)


Overview


HYDROTRAC GFT is an ideal driving component for wheel or track driving vehicles, and other moving equipment and widely applied in excavator, spreading machine, drill machine, mobile crusher, engineering machinery, mining, tunnel machinery, agricultural machinery, etc. Meanwhile, different motor connectors and dimensions are available on request. It is an ideal replacement of Rexroth products.


Special Features:
1. Compact two-, three- or four-stage planetary gearboxes
2. Cageless planetary gear bearing
3. Robust main bearing
4. Optimized seals
5. Integr. multi-disc parking brake
6. Optional for mounting Rexroth fixed or variable motors (A2FM/E, A6VM/E, A10VM/E)
7. Interchangeable with Rexroth on performance and dimension.
8. More than 80% components can be interchanged with those of Rexroth (planet gear, Cageless planetary gear bearing, planet carrier, ring gear and so on).

Technical parameters
Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox 0








Type/Version
Output Torque
T2
Max
Nm
7000
9000
13000
17000
17000
24000

Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox 1
Ratio

 I
30.9-62.6
38.3-47.6
16.3-60.2
6.4-54
78-102.6
90.1-137.2
Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox 2
Hydraulic Motor


A10VM45
A10VE45
A2FE56
A6VE55
A10VE63
A10VM45
A2FE63
A6VE55
A2FE56
A6VE55
A2FE63
A10VE45
Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox 3
Weight without Motor (approx.)

kg
45
67
92
90
105
115
Type/Version


Output Torque
T2
Max
Nm
26000
36000
50000
60000
60000
80000
Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox 4
Ratio

42.9-62
67-161
66.3-146.4
23
94.8-197
55.5
Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox 5
Hydraulic Motor


A2FE90
A6VE80
A2FE90
A10VE80
A2FE125
A6VE107
A6VM220
A2VE125
A6VE107
A6VM220
Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox 6
Weight without Motor (approx.)

kg
155
170
220
205
260
570
Type/Version



Output Torque, crane
T2
Max
Nm
8000
110000
160000
220000
330000

Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox 7
Ratio

 I
76.7-185.4
95.8-215
161.8-251
97.7-365
168.9-302.4

Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox 8
Hydraulic Motor


A2FE180
A6VE160
A2FE180
A6VE160
A2FE180
A6VE160
A2FE180
A6VE160
A6VM355
A2FE355
A6VE250

Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox 9

Weight without Motor (approx.)

kg
405
505
680
1370
1250


Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox 10

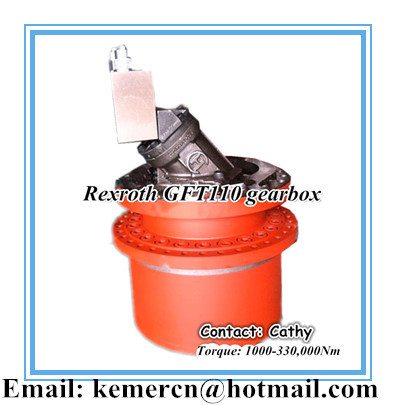

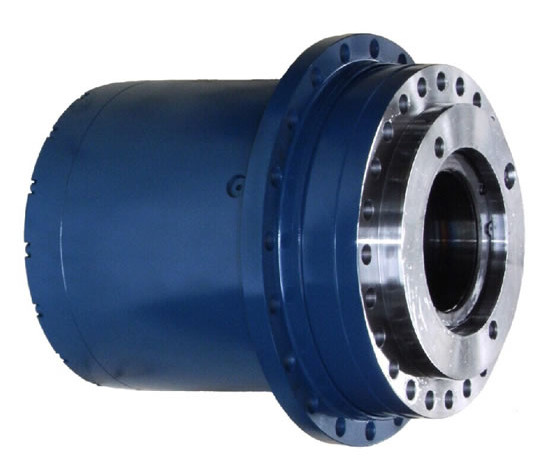

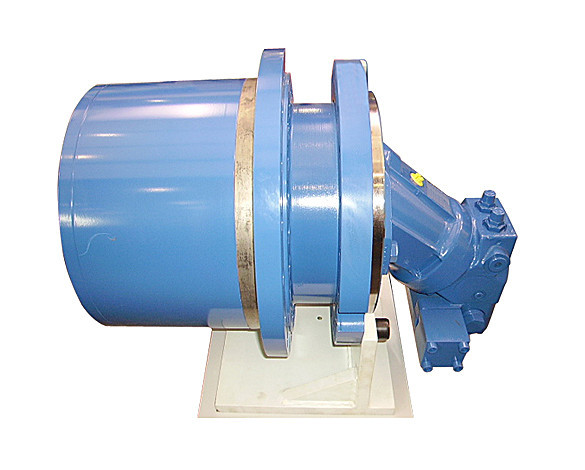

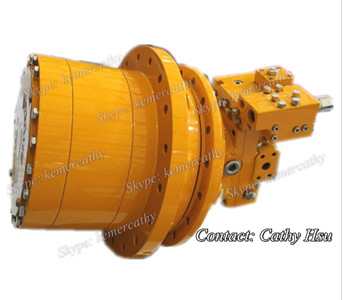

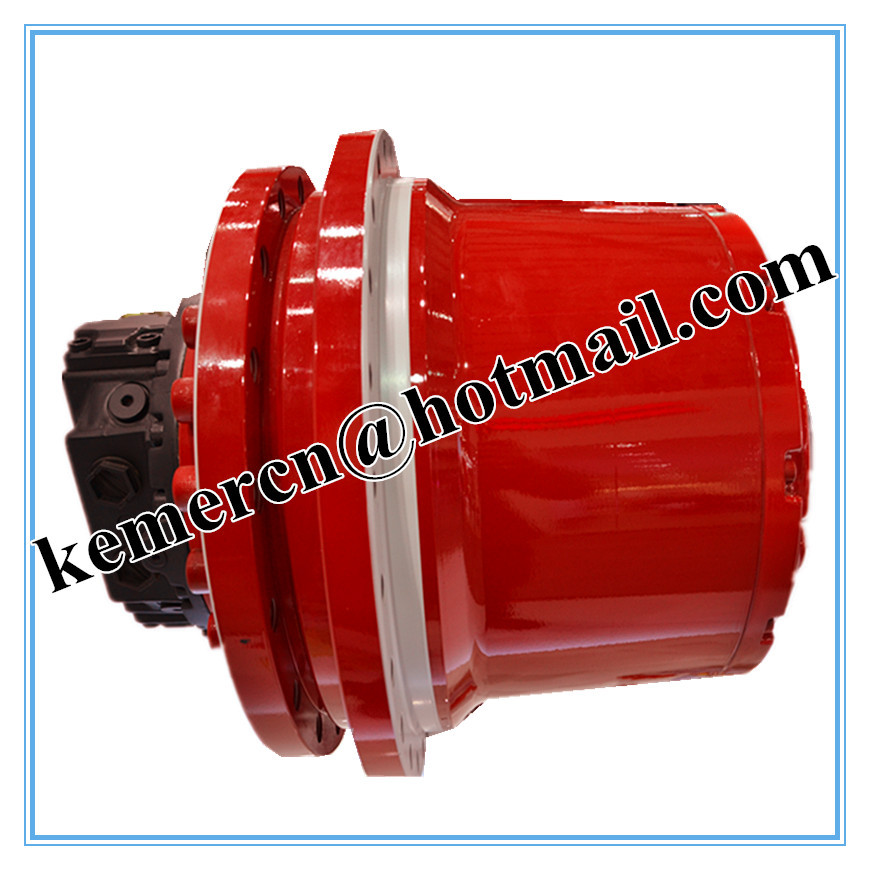

Product picture for reference

 Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox 11Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox 12Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox 13Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox 14Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox 15Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox 16Planetary gearbox GFT220T2 GFT220T3 series track drive gearbox 17
