free fall hydraulic winch manufacturer
| Place of Origin | china |
|---|---|
| Brand Name | kemercn@hotmail.com |
| Certification | ISO9001 |
| Model Number | GH series |
| Price | Negotiation |
| Packaging Details | case |
| Delivery Time | 3-20 days |
| Payment Terms | T/T or L/C |
| Supply Ability | on request |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pull Force | 500-60,000kgs | Rope Speed | 0-200m/min |
|---|---|---|---|
| Dimension | Custom Built | Contact | Cathy |
| Skype | Kemercathy | Kemercn@hotmail.com | |
| Cell | 008615168162360 | ||
| High Light | hydraulic winch,free fall hydraulic winch,piling rig hydraulic winch manufacturer |
||
Product Description
free fall hydraulic winch manufacturer, hydraulic winches, hoisting winch, marine winch, drilling rig winch, crane winch, power winch, hydraulic operated winch, dredger winch
free fall hydraulic winch manufacturer
piling rig hydraulic winch, drilling rig hydraulic winch, hoisting winch manufacturer, dredger winch, marine winch, hydraulic winch
Pull force: 500kgs-45000kgs
Company Introduction
We're one of leading manufacturers in China who are specialized in designing and manufacturing hydraulic winches, hydraulic motors, hydraulic slewing drives, planetary gearboxes, travel motors and wheel motors.
With strong research and development capability, we have achieved 14 invention patents and 30 practical innovation patents. Meanwhile, we have more than 250 sets of advanced production and inspection equipment, which ensures the quality of our products.
Our products have been widely used in Offshore Application, Agriculture Industry, Fishing Equipment, Construction Machinery, Petroleum Industry, Coal Mining, Geological Prospection, Marine Application, Metallurgical Engineering, Light Industry, as well as Environmental Protection and other industries.
As a trustworthy manufacturer and supplier, we have a dominating market share in China, and we also enjoy an increasing market share worldwide. Our products have been exported to:
-Europe: UK, Austria, Netherlands, Germany, Sweden
-North America: USA, Canada
-South America: Brazil, Argentina
-Russia, Australia,Turkey, Southeast Asia, Middle East, India, Korea and other countries in the world.

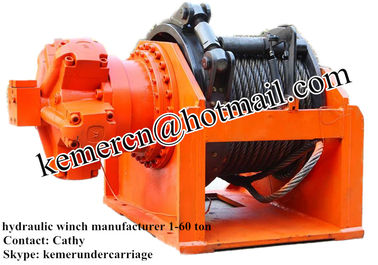

GW or GH series free fall hydraulic winch
With brake in the last stage, the GW or GH series free fall hydraulic winch can realize the emergency rapid free fall function. Thus it is widely used in pipe layer, crawler crane, motor crane, engineering driller, grab windlass, gravity crusher and any other hoisting equipment.
Features:
1. One-or two-stage planetary gearboxes, smooth operation and reasonable structure.
2. Normally closed friction type brake, high braking torque, safe and reliable operating.
3. Small volume, compact structure and high transmission efficiency.
4. Radial piston hydraulic motor with long life operating.
5. Mounting frame is available on request.
6. Balance valve, shuttle valve, limit switch and other accessories are also available on request.
7. With brake in the last stage, it can realize the emergency rapid free fall function.
For the following specification, it is for your reference, we can also design and manufacture the winch with pull force up to 60 ton based on your requirements.
Model | W.L.L. 1st layer | W.L.L. top layer | Rope Speed | Rope diam. | Capacity of Rope | Working Pressure | Max Supply Oil Flow |
kgf | kgf | m/min | mm | m | Mpa | L/min | |
GH1000 | 1000 | 860 | 25 | 10 | 60 | 15 | 25 |
GH2000 | 2000 | 1700 | 25 | 12 | 50 | 14 | 50 |
GH3000 | 3000 | 2500 | 35 | 15 | 65 | 16 | 95 |
GH4000 | 4000 | 3300 | 35 | 16 | 65 | 14 | 125 |
GH5000 | 5000 | 4200 | 40 | 20 | 87 | 14 | 175 |
GH6000 | 6000 | 4900 | 40 | 21.5 | 68 | 14 | 215 |
GH8000 | 8000 | 6700 | 40 | 24 | 100 | 14 | 270 |
GH10000 | 10000 | 7800 | 40 | 28 | 90 | 13 | 380 |
GH12000 | 12000 | 10000 | 30 | 30 | 176 | 17 | 270 |
GH15000 | 15000 | 12000 | 30 | 34 | 153 | 18 | 320 |
GH18000 | 18000 | 15000 | 30 | 38 | 143 | 18 | 375 |
GH20000 | 20000 | 16000 | 32 | 40 | 150 | 18 | 440 |
GH24000 | 24000 | 19000 | 32 | 42 | 140 | 17 | 480 |
GH25000 | 25000 | 20000 | 14 | 42 | 110 | 14 | 360 |
GH28000 | 28000 | 23000 | 14 | 44 | 105 | 14 | 380 |
GH30000 | 30000 | 25000 | 16 | 44 | 155 | 18 | 370 |
GH35000 | 35000 | 29000 | 16 | 46 | 150 | 18 | 390 |
GH40000 | 40000 | 33000 | 16 | 48 | 145 | 18 | 440 |
