custom built wireline hydraulic winch with pull force from 1-100 ton
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPull Force | 1-10 Ton | Driving Motor | Orbital Motor |
---|---|---|---|
Name | Hoisting Hydraulic Winch | Cathyhsu@foxmail.com |
China high quality hydraulic winch manufacturer

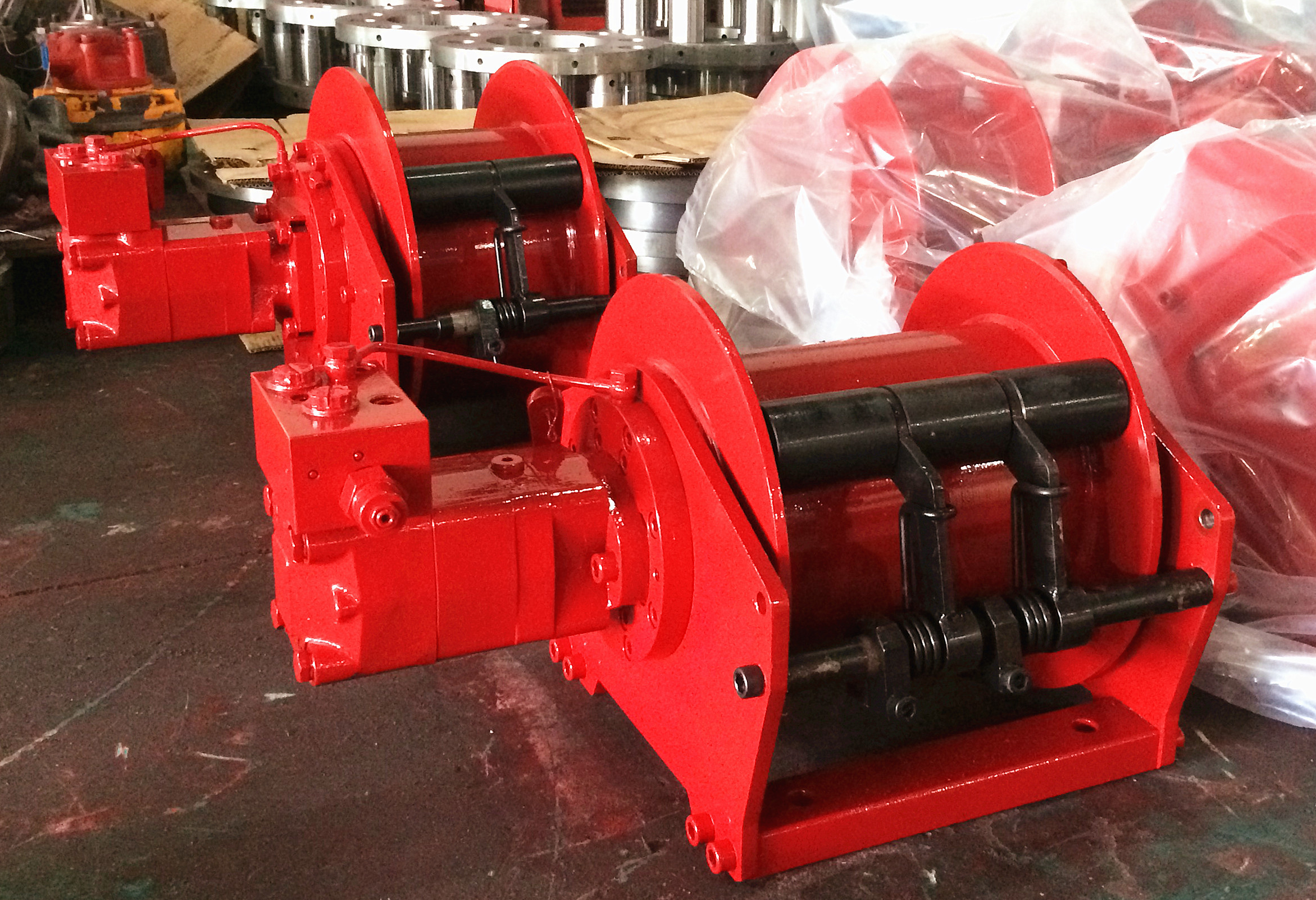

For the winch in the picture, it is our BG series hydraulic winch, whichare widely used in overhead working truck, lorry mounted crane, drill machine, mirror crane, ship equipments and so on. It is the best choice for those situations that requires the narrow space and light weight.
Special Features:
♦Floating type planetary gearbox, smooth operation and reasonable structure.
♦ Normally closed friction type brake, high braking torque, safe and reliable operating.
♦ Small volume, compact structure and high transmission efficiency.
♦ Long life Danfoss hydraulic orbit motor
♦ Mounting frame is available on request.
♦ Balance valve, shuttle valve, limit switch and other accessories are also available on request.
Custom design service
We Provide Customized Services For Various Capacity Of Hydraulic Winches From 1 Ton (2200 lbs) To 50 Tons(110000 lbs)!*
The dimension and specification of hydrauic winch can be desgined based on customer requirements.
Model |
Pull Force (KN) |
Rope Speed (m/min) |
Diameter of rope (mm) |
Capacity of rope (m) |
Working pressures diff. (Mpa) |
Flow Rate (L/min) |
|
1st layer |
top layer |
||||||
BG500 |
500 |
380 |
63 |
6 |
67 |
14 |
40 |
BG800 |
800 |
680 |
54 |
8 |
53 |
14 |
50 |
BG1100 |
1100 |
870 |
41 |
8 |
53 |
14 |
50 |
BG1300 |
1300 |
1000 |
45 |
9 |
48 |
14 |
55 |
BG1500 |
1500 |
1200 |
42 |
10 |
60 |
21 |
55 |
BG2000 |
2000 |
1600 |
35 |
10 |
60 |
21 |
55 |
BG2500 |
2500 |
2000 |
52 |
12 |
52 |
21 |
100 |
BG2600 |
2600 |
2000 |
54 |
12 |
76 |
21 |
100 |

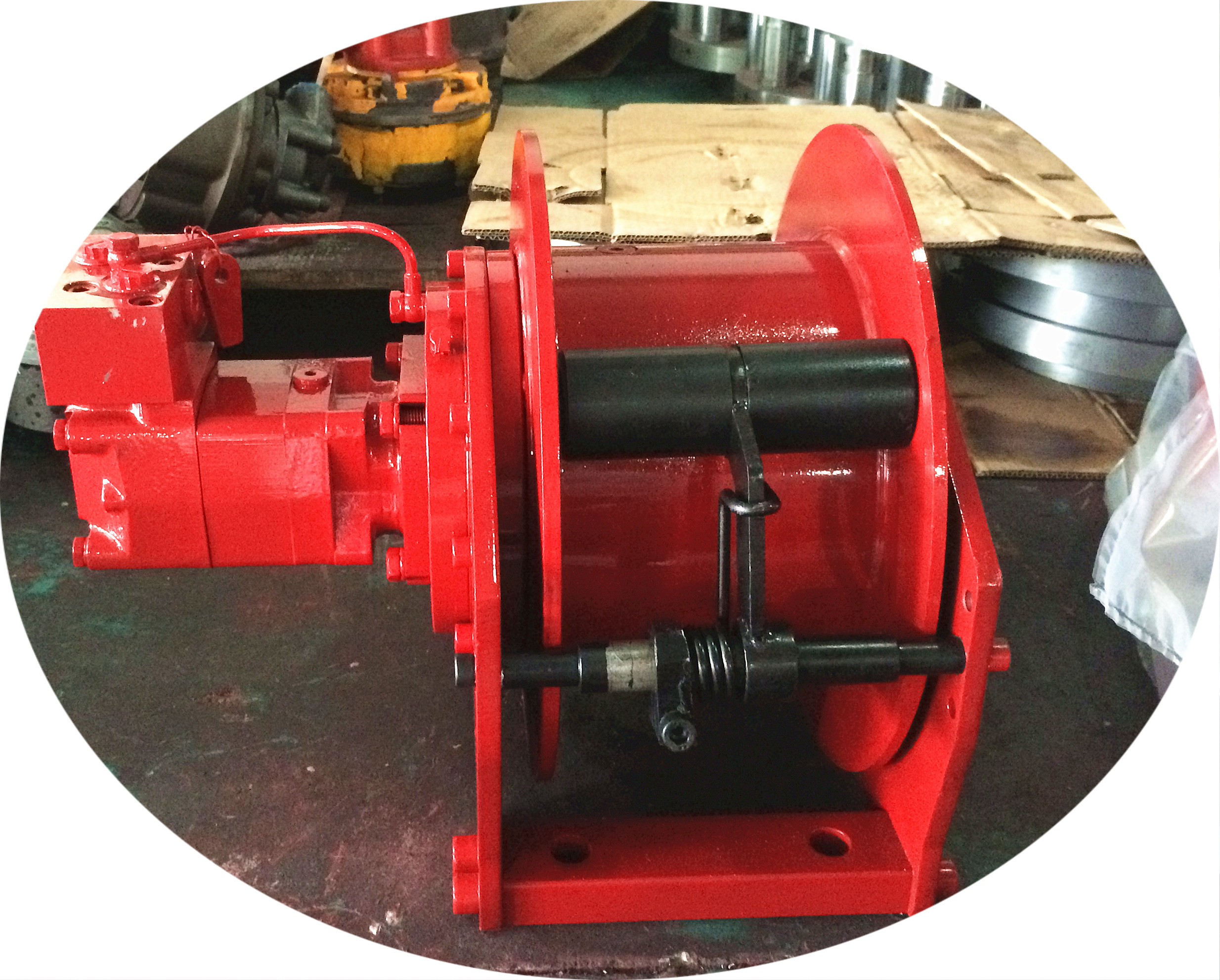

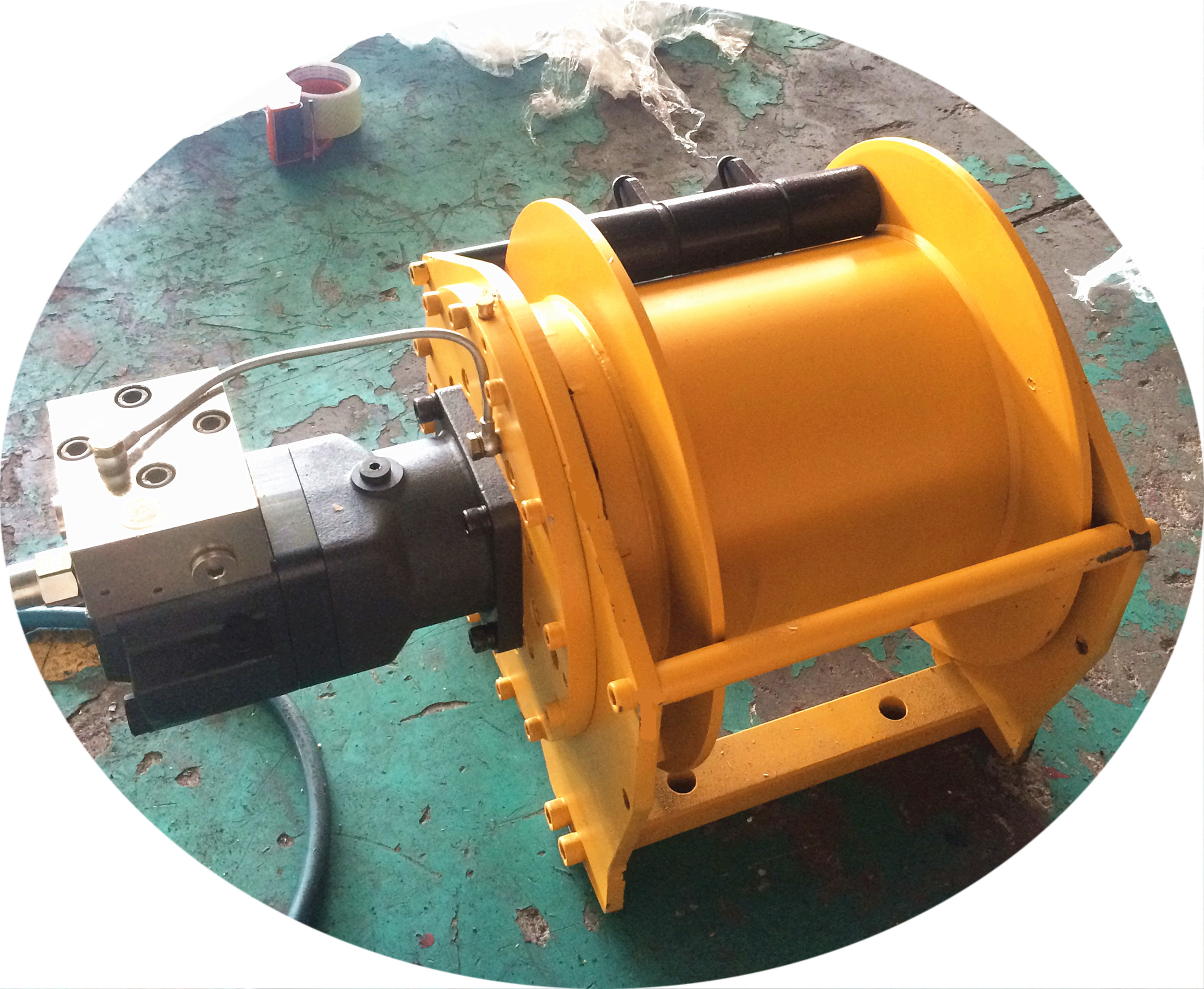

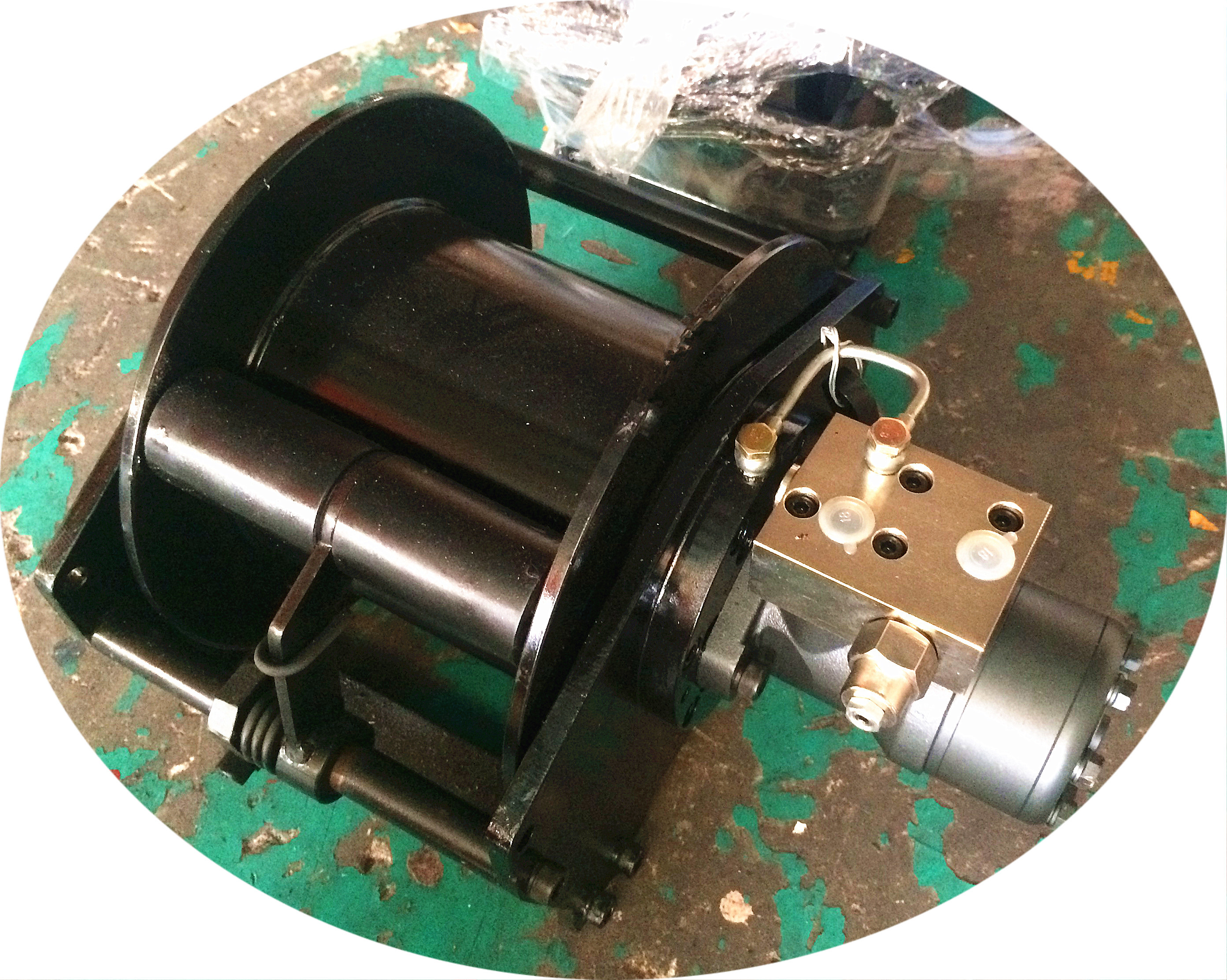

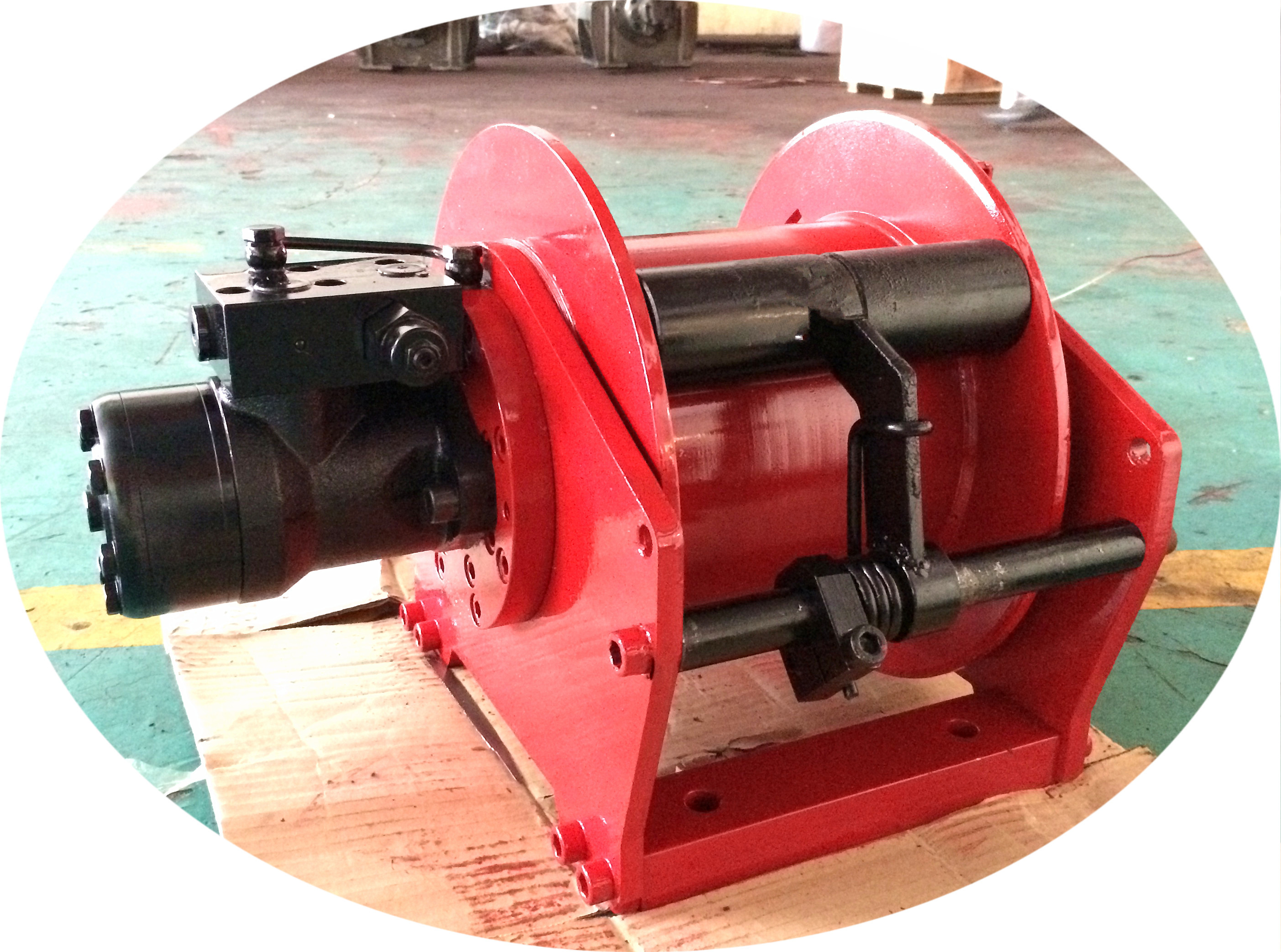

Detail of hydraulic winch
Application of hydraulic winch
Our hydraulic winches can be widely used in conveyor tensioning device and mechanical engineering from heavy machinery such as truck crane, crawler crane, aerial vehicles, forestry crane, and shipping ports such as port cranes, floating crane, dredger, cranes, davits, and can for large play equipment such as oil rigs and offshore oil drilling platform, piling machinery rotary drilling rig, drilling, core drilling, hydrostatic pressure pile machine and so on.
Factory overview
Q: Are you trading company or manufacturer ?
A: We are factory of hydraulic winch.
Q: How long is your delivery time?
A: Generally it is 5-25 days if the goods is the standard dimension.
Q: Can you custom make the product?
A: Yes, all dimensions and specifications of hydraulic winch can be designed and made based on your requirements.
Q: How to order?
A: To make sure the offered hydraulic winch is suitable for your application, please offer the following details:
1. pull force of inner layer (kg):
2. rope speed of inner layer (m/min):
3. rope diameter (mm):
4. length of rope (m):
5. drum diameter (mm):
6. with or without groove:
7. with or without brake:
If you have another question about the hydraulic winch, pls feel free to contact us.
