Product Details
Pull Force 1-10 Ton Driving Motor Orbital Motor
Name Hoisting Hydraulic Winch Email Cathyhsu@foxmail.com
Leave a Message
Product Description

China high quality hydraulic winch manufacturer




We are the china hydraulic winch manufacturer (hydraulic winch, hoisting winch, wireline winch, cargo winch, drilling rig winch, crane winch, marine winch, dredger winch, hydraulic winches, compact winch, free fall hydraulic winch) with more than 10 years experience in designing and manufacturing different types of hydraulic winches fro widely application.

We are the group company in China, the registered capacity is 6,000,000 and the factory area is about 6000sqm. Staffed with 150 employees, including 10 engineers.

The products are widely used in engineering machinery, ship-, petroleum-, mining industry, metallurgical machinery, light industry, agriculture, enviroment.

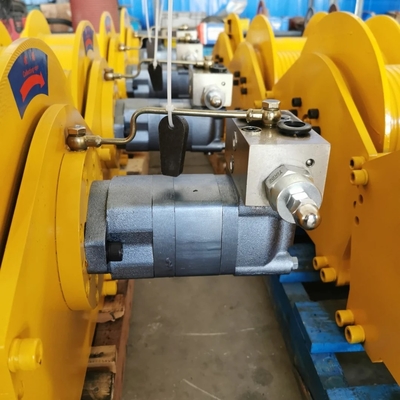

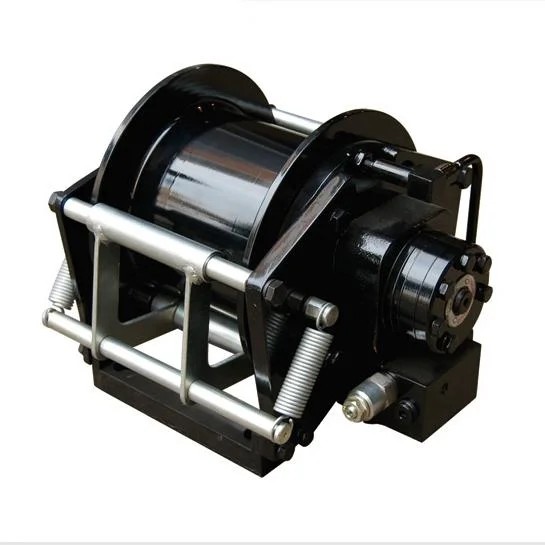

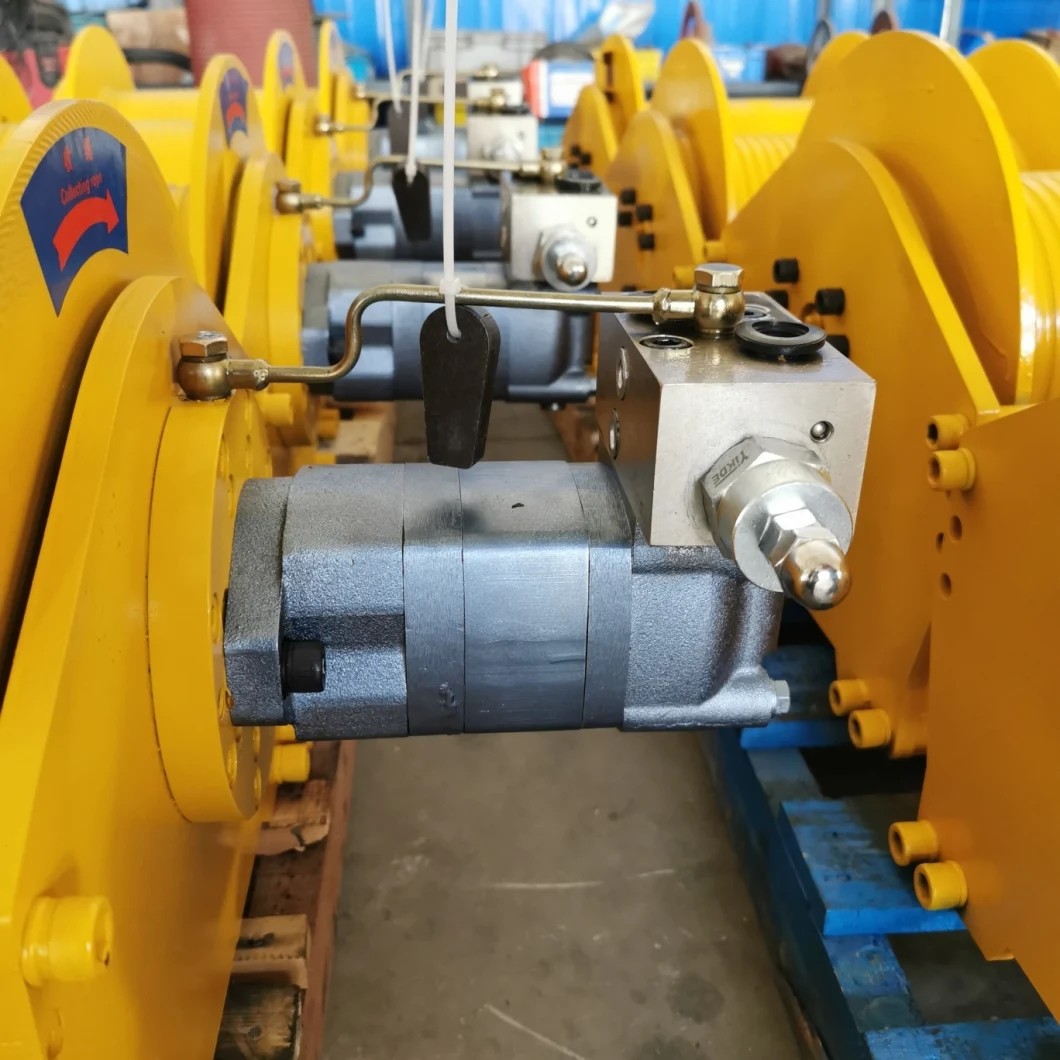

For the winch in the picture, it is our BG series hydraulic winch, whichare widely used in overhead working truck, lorry mounted crane, drill machine, mirror crane, ship equipments and so on. It is the best choice for those situations that requires the narrow space and light weight.


hydraulic winch, hoisting winch, wireline winch, cargo winch, drilling rig winch, crane winch, marine winch, dredger winch, hydraulic winches, compact winch, free fall hydraulic winch
Special Features:
Floating type planetary gearbox, smooth operation and reasonable structure.
♦ Normally closed friction type brake, high braking torque, safe and reliable operating.
♦ Small volume, compact structure and high transmission efficiency.
♦ Long life Danfoss hydraulic orbit motor
♦ Mounting frame is available on request.
♦ Balance valve, shuttle valve, limit switch and other accessories are also available on request.


Custom design service
We Provide Customized Services For Various Capacity Of Hydraulic Winches From 1 Ton (2200 lbs) To 50 Tons(110000 lbs)!*


The dimension and specification of hydrauic winch can be desgined based on customer requirements.



Model

Pull Force (KN)

Rope Speed (m/min)

Diameter of rope (mm)

Capacity of rope (m)

Working pressures diff. (Mpa)

Flow Rate (L/min)

1st layer

top layer

BG500

500

380

63

6

67

14

40

BG800

800

680

54

8

53

14

50

BG1100

1100

870

41

8

53

14

50

BG1300

1300

1000

45

9

48

14

55

BG1500

1500

1200

42

10

60

21

55

BG2000

2000

1600

35

10

60

21

55

BG2500

2500

2000

52

12

52

21

100

BG2600

2600

2000

54

12

76

21

100

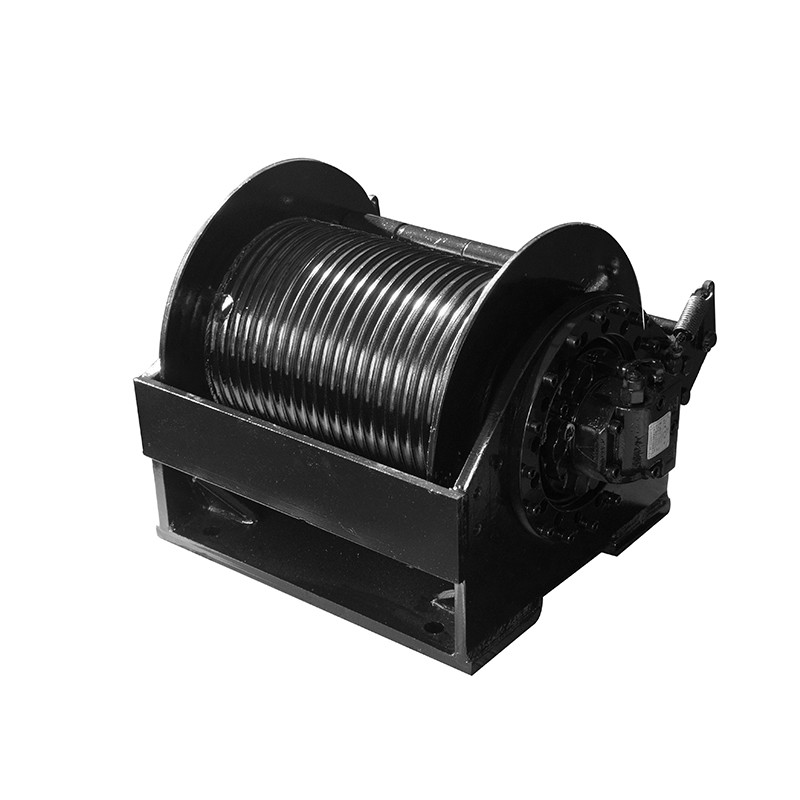

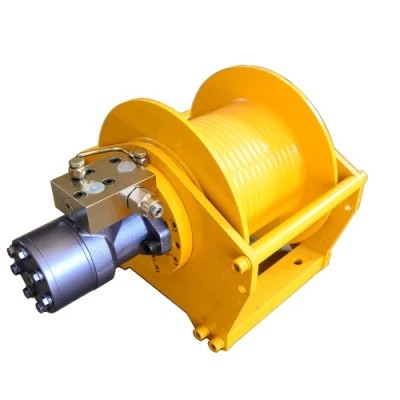

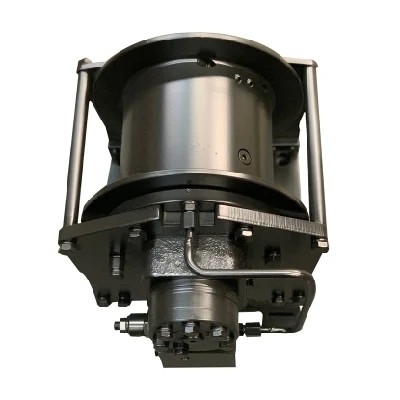

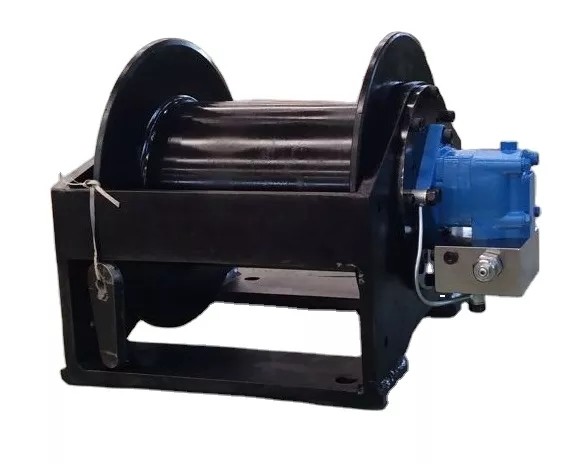

Detail of hydraulic winch


hydraulic winch drilling rig winch crane winch marine winch dredger winch
crane winch drilling rig winch crane winch wireline winch dredger winchcrane winch drilling rig winch crane winch wireline winch dredger winch


Application of hydraulic winch



Our hydraulic winches can be widely used in conveyor tensioning device and mechanical engineering from heavy machinery such as truck crane, crawler crane, aerial vehicles, forestry crane, and shipping ports such as port cranes, floating crane, dredger, cranes, davits, and can for large play equipment such as oil rigs and offshore oil drilling platform, piling machinery rotary drilling rig, drilling, core drilling, hydrostatic pressure pile machine and so on.



crane winch drilling rig winch crane winch wireline winch dredger winch


china crane winch manufacturer 5

Factory overview


china crane winch manufacturer 6
china crane winch manufacturer 7


FAQ:

Q: Are you trading company or manufacturer ?

A: We are factory of hydraulic winch.

Q: How long is your delivery time?

A: Generally it is 5-25 days if the goods is the standard dimension.

Q: Can you custom make the product?

A: Yes, all dimensions and specifications of hydraulic winch can be designed and made based on your requirements.

Q: How to order?

A: To make sure the offered hydraulic winch is suitable for your application, please offer the following details:
1. pull force of inner layer (kg):
2. rope speed of inner layer (m/min):
3. rope diameter (mm):
4. length of rope (m):
5. drum diameter (mm):
6. with or without groove:
7. with or without brake:
If you have another question about the hydraulic winch, pls feel free to contact us.
