winch drive gearbox GFT160W2 GFT160W3 series

Place of Origin Ningbo
Brand Name kemercn@hotmail.com
Certification ISO9001
Model Number GFT160W series
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details case
Delivery Time 3-20 days
Payment Terms T/T or L/C
Supply Ability on request

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

GFT160W2, GFT160W3 winch drive gearbox

Our factory mass produced Rexroth GFT series compact high speed travel drive from GFT 13T2 to GFT 330T3 (13000-330000 N.m)


Overview


MOBILEX GFT-W is an ideal driving component for hoisting mechanism. It has been widely applied in winding gear of truck crane, crawler crane, ship crane and harbor crane. Because of its compact structure, it can be installed in reel for saving space. Meanwhile, different motor connectors and dimensions are available on request. It is an ideal replacement of Rexroth products.


Special Features:
1.  Compact two-, three- or four-stage planetary gearboxes
2.  Cageless planetary gear bearing
3.  Robust main bearing
4.  Optimized seals
5.  Integr. multi-disc parking brake
6.  Optional for mounting Rexroth fixed or variable motors (A2FM/E, A6VM/E, A10VM/E)
7.  Interchangeable with Rexroth on performance and dimension.
8.  More than 80% components can be interchanged with those of Rexroth (planet gear, Cageless planetary gear bearing, planet carrier, ring gear and so on).

Technical parameters
winch drive gearbox GFT160W2 GFT160W3 series 0








Type/Version
    GFT 0013 W2 GFT 0017 W2 GFT 0017 W3 GFT 0024W3 GFT 0026 W2
Output Torque
T2
max
Nm
9500
14000
14000
19000
18000
winch drive gearbox GFT160W2 GFT160W3 series 1
Ratio

I
16.3-37.6
26.4-45.4
77.9-102.6
90.1-137.2
42.9-62
winch drive gearbox GFT160W2 GFT160W3 series 2
Hydraulic Motor


A2FE63
A6VE55
A2FE63
A6VE55
A2FE63
A6VE55
A2FE63
A6VE55
A2FE90
A6VE107
winch drive gearbox GFT160W2 GFT160W3 series 3
Cable force

KN
 50
67
74
99
84
winch drive gearbox GFT160W2 GFT160W3 series 4
Weight without Motor
(approx.)

kg
85
105

115
130
140
Type/Version
    GFT 0036 W3 GFT 0040 W2 GFT 0050 W3 GFT 0060 W3 GFT 0080 W3
Output Torque
T2
max
Nm
26000
27000
37500
42500
67000
winch drive gearbox GFT160W2 GFT160W3 series 5
Ratio

I
67-138.9
35.9-59.1
84.2-146.4
63.8-169.9
61.3-185.4
winch drive gearbox GFT160W2 GFT160W3 series 6
Hydraulic Motor


A2FE90
A6VE80
A2FE125
A6VE160
A2FE125
A6VE160
A2FE90
A2FM250
A6VE107
A6VM250
A2FE180
A2FM200
A6VE160
A6VM250
winch drive gearbox GFT160W2 GFT160W3 series 7
Cable force

KN
118
108
150
164
231
winch drive gearbox GFT160W2 GFT160W3 series 4
Weight without Motor
(approx.)

kg
155
219
238
230
430
Type/Version
    GFT 0110 W3 GFT 0160 W3 GFT 0220 W3 GFT 0330 W3
Output Torque
T2
max
Nm
100000
140000
200000
275000

winch drive gearbox GFT160W2 GFT160W3 series 6
Ratio

I
79.5-215
161.8-251
97.7-293
168.9-302.4

winch drive gearbox GFT160W2 GFT160W3 series 10
Hydraulic Motor


A2FE180
A2FM250
A6VE160
A6VM250
A2FE180
A6VE160
A2FE180
A2FM200
A6VE160
A6VM250
A2FE250
A6VE250

winch drive gearbox GFT160W2 GFT160W3 series 6
Cable force

KN
300
373
471
595

winch drive gearbox GFT160W2 GFT160W3 series 4
Weight without Motor
(approx.)

kg
515
680
850
1380

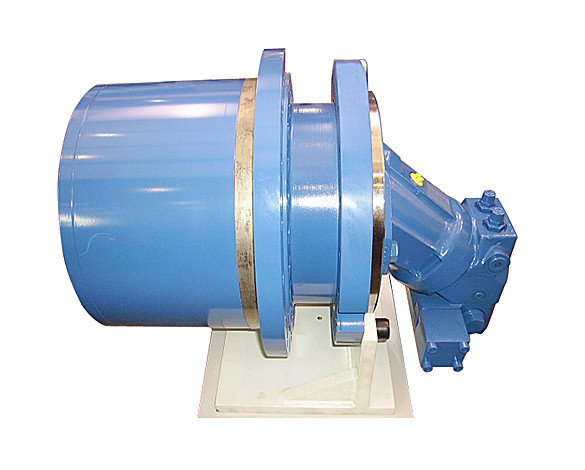

Product picture for reference winch drive gearbox GFT160W2 GFT160W3 series 13winch drive gearbox GFT160W2 GFT160W3 series 14winch drive gearbox GFT160W2 GFT160W3 series 15winch drive gearbox GFT160W2 GFT160W3 series 16winch drive gearbox GFT160W2 GFT160W3 series 17winch drive gearbox GFT160W2 GFT160W3 series 18winch drive gearbox GFT160W2 GFT160W3 series 19
