hydraulic winch (10 ton) drilling rig hydraulic winch dredger winch
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Pull Force | 500-60,000kgs | Rope Speed | 0-200m/min |
---|---|---|---|
Dimension | Custom Built | Contact | Cathy |
Skype | Kemercathy | Kemercn@hotmail.com | |
Cell | 008615168162360 | ||
High Light | 10 ton hydraulic winch,crane hydraulic winch,drilling rig hydraulic winch manufacturer |
Product Description
hydraulic winch manufacturer, hydraulic winches, hoisting winch, marine winch, drilling rig winch, crane winch, power winch, hydraulic operated winch, dredger winch
hydraulic winch manufacturer 1-60 ton
We are the China-based manufacturer of hydraulic winch (hydraulic winch, hoisting winch, wireline winch, cargo winch, drilling rig winch, crane winch, marine winch, dredger winch, hydraulic winches, compact winch, free fall hydraulic winch) with more than 10 years experience in designing and manufacturing different types of hydraulic winches fro widely application.
We are the group company in China, the registered capacity is 6,000,000 and the factory area is about 6000sqm. Staffed with 150 employees, including 10 engineers.
The products are widely used inengineering machinery, ship-, petroleum-, mining industry, metallurgical machinery, light industry, agriculture, enviroment.
Now we are stepping into the international market, our products are being exported toGermany, USA, CANADA, ITALY, NETHERLAND, KOREAM, SINGAPORE, TURKEY, AUSTRALIA, INDIA, INDONESIA and others.
Specification of hydraulic winch:
1. Pull force of 1st layer: 1-60 ton
2. Rope speed: 0-200m/min
3. Option for the winch with groove or without groove

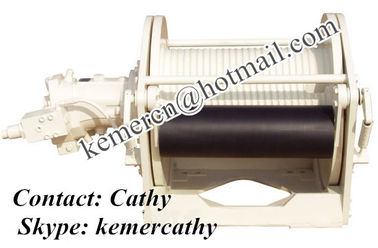

For the winch in the picture, it is our AF series hydraulic winch, which is widely used in ship crane, harbor, petroleum, drill machine, engineering machinery, geological exploration and construction machinery. It is the best choice for those situations which requires large power, high speed and high security.
Special Features:
1.Two-or three-stage planetary gearboxes, smooth operation and reasonable structure.
2.Normally closed friction type brake, high braking torque, safe and reliable operating.
3.Small volume, compact structure and high transmission efficiency.
4.Axial fixed or variable hydraulic motor with long life operating.
5.Mounting frame is available on request.
6.Balance valve, shuttle valve, limit switch and other accessories are also available on request.
For the folowing specification in the table, it is for your reference. We can also manufacture the winch with pull force up to 60,000kgs based on your requirements.
hydraulic winch manufacturer 1-60 ton
Model | Pull Force (KN) | Rope Speed (m/min) | Diameter of rope (mm) | Capacity of rope (m) | Working pressures diff. (Mpa) | Flow Rate (L/min) | |
1st layer | toplayer | ||||||
AF5700 | 5700 | 4500 | 60 | 16 | 107 | 25 | 160 |
AF7700 | 7700 | 6000 | 52 | 18 | 118 | 25 | 180 |
AF9600 | 9600 | 7500 | 43 | 20 | 118 | 25 | 180 |
AF12800 | 12800 | 9800 | 43 | 24 | 118 | 27 | 220 |
AF15000 | 15000 | 12800 | 39 | 24 | 110 | 25 | 220 |
AF18500 | 18500 | 14600 | 85.3 | 28 | 162 | 27 | 380 |
AF25000 | 25000 | 19500 | 48.1 | 30 | 162 | 27 | 380 |
AF30000 | 30000 | 23000 | 32 | 32 | 169 | 30 | 380 |
AF45000 | 45000 | 34700 | 32 | 42 | 169 | 30 | 380 |
