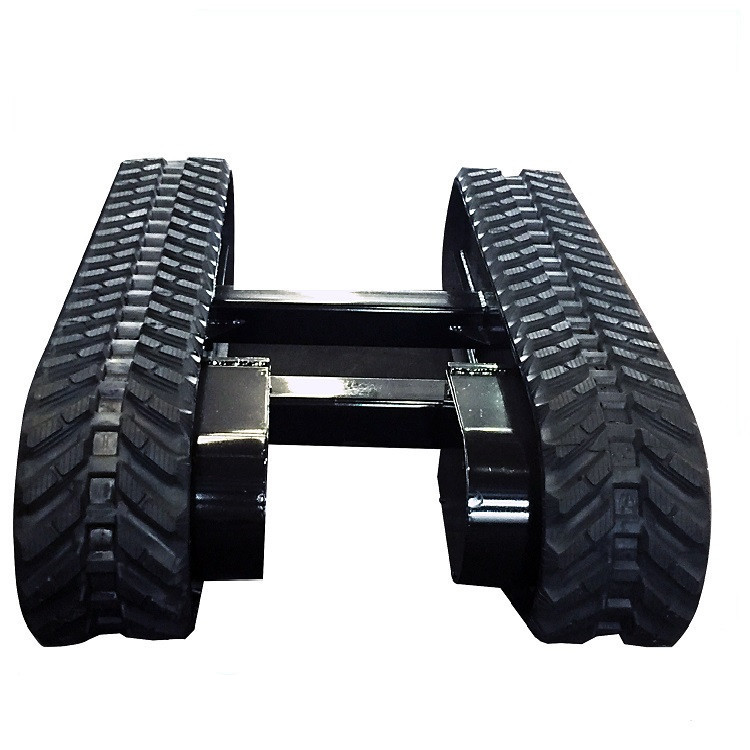

China Rubber Track Undercarriage Manufacturer

Place of Origin	Ningbo
Brand Name	cathyhsu@foxmail.com
Certification	ISO9001
Model Number	RT series
Price	Negotiation
Packaging Details	pallet
Delivery Time	3-20 days
Payment Terms	T/T or L/C
Supply Ability	on request

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Load Capacity	1-100 Ton	Track Drive	Single Speed Or Dual Speed On Request
Material	Steel	Warranty	1 Year
Application	Excavator,Crane,Bulldozer,Crusher，Drill Rig, Piling Rig	Condition	100%new
Type	Rubber Track Assembly/Rubber Crawler Chassis/Undercarriage

Leave a Message

Product Description

steel track undercarriage steel crawler undercarriage tracked undercarriage undercarriage system

Rubber Crawler Track undercarriage manufacturer

Rubber track undercarriage, Rubber track frame, Rubber track chassis, rubber track system, rubber crawler undercarriage, rubber tracked undercarriage, drilling rig rubber track undercarriage, crusher rubber trackundercarriage, excavator track undercarriage, rubber track frame, rubber track system, crawler track system

Why to choose us?

We are the manufacturer and factory of rubber track undercarriage and steel track undercarriage. We have experienced engineers with more than 10 years' experience in design and manufacturing different types of undercarriage for drilling rig, crusher, shredder, etc.

steel track undercarriage, steel crawler undercarriage, steel track system, steel track under carriage

We are an experienced company specialized in manufacturing steel track undercarriage and rubber track undercarriage. we make custom track systems for your mobility needs, and our track undercarriage can carry up to 50ton,and supporting dual-speed final drive and travel 0-7km/h at grades up to 60%.

Specification of track undercarriage:

1.Load capacity: 500kgs-50,000kgs

2.walking speed: 0-10km/hr

3.travel drive: dual speed final drive or single speed, Rexroth GFT gearbox

6.delivery time: 3-20 days

7.Custom built: we can design and manufacture track undercarriage according to your specificdimension requirements.

We are an experienced company specialized in manufacturing steel track undercarriage and rubber trackundercarriage. We make custom track systems for your mobility needs, and our track undercarriage cancarry up to 50ton, and supporting dual-speed final drive and travel 0-7km/h at grades up to 100%.

Application

Special design catered to customer specifications. With years of experience we can offer the track designflexibility, rapid response and solutions that are always highly effective.

For application on drilling rigs, excavators, crushers, cranes, aerial platform, etc. with high efficiency andadaption of vile working condition.

Customize Solution

We have many professional engineers devoting to design the track undercarriages to meet differentcustomers' requirements. With our years of experience, we can take your concept from prototype toproduction. We are committed to our goal of exceeding your expectations and requirements for quality,reliability, and on-time delivery.

Competitive Price

We can provide our track undercarriage with most competitive price, great quality and best service.

If you have any question or need any help, please feel free to contact with us. Our service team is ready toprovide best service for you.

Specification

For the following dimension and specification, it is just for your reference, we can also design andmanufacture the RUBBER TRACK UNDERCARRIAGE based on your requirements.

RT-RUBBER TRACK UNDERCARRIAGE

Please note: the load capacity mentioned below is including the weight of undercarriage

MODEL	Dinamic capacity	Static capacity	Weight kg.	Press.Bar	oil flow L/min	Torque Nm to engine	Grad.	Speed km/h
RT-1500	1200	1500	330	270	17	2000	65%	1.7
RT-2500	2500	3000	380	220	35	4723	65%	2/3.2
RT-3500	3500	4000	650	220	35	4723	65%	2/3.5
RT-5000	5000	6000	900	220	55	8330	65%	2/3.7
RT-6000	6000	7000	1280	220	55	8330	65%	2/3.7
RT-8000	8000	9500	1550	300	82	11700	65%	2.8/4.7

China Rubber Track Undercarriage Manufacturer 3

MODEL	A Length	B Center Distance	C Height	D Total Width	E Width of track shoe	F Height of Cross beam	No. of roller
RT-1500	1420	1066	350	980	230	165	3+3
RT-2500	1850	1370	480	1220	250	245	4+4
RT-3500	1980	1511	500	1520	300	250	5+5
RT-5000	2500	1950	550	1800	350	265	6+6
RT-6000	2905	2355	550	1800	400	265	7+7
RT-8000	2950	2450	600	1800	400	310	7+7

Frame connection type of rubber track undercarriage

Bracketed Frame	A bracketed frame with machined plates provide a simple bolt on interface reducing assembly time. Standard bracketed models are available in many sizes.
Weld-On Frame (Unbracketed)	A plain sided frame for your own connection method. This style can be incorporated into your chassis design allowing for the narrowest machine width. Our substantial frames allow a secure interface.
Oscillating Frame	Oscillating frames, typically found on drilling rigs, precision manufactured to your specific requirements, or a collaboratively engineered solution.
Cross Beam Track Systems	Our fabricated cross beam chassis design offers the customer the ultimate in assembly simplicity. This connection method allows the machine to simply be placed on top and fixed in place.

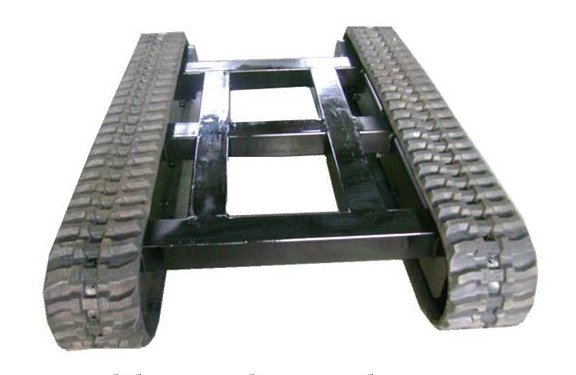

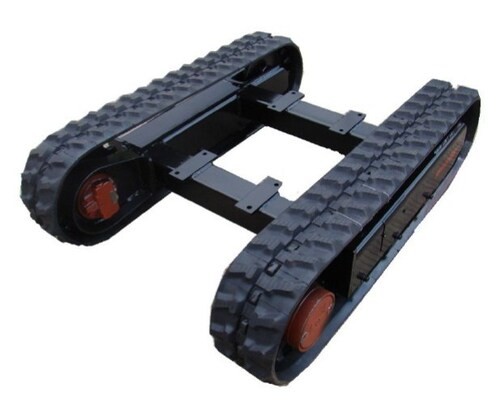

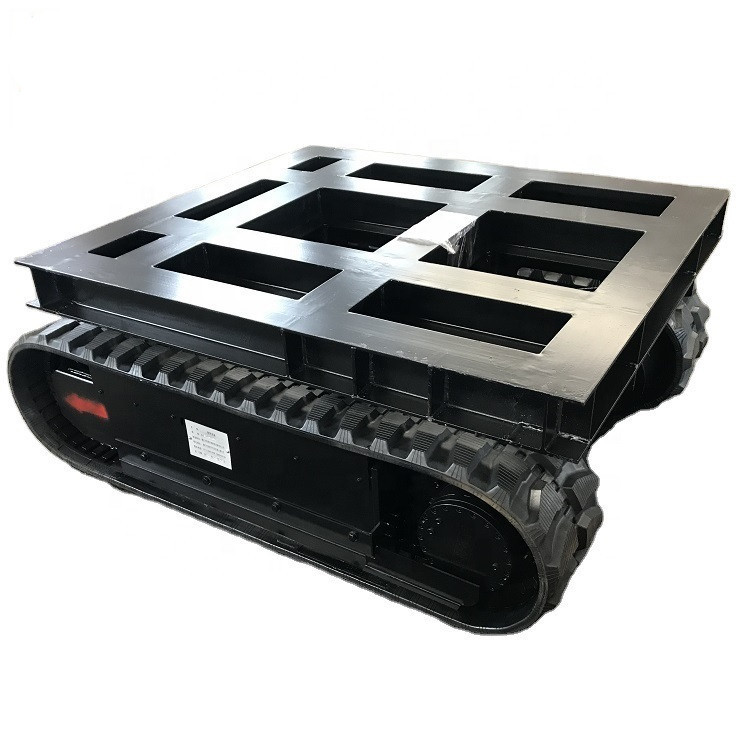

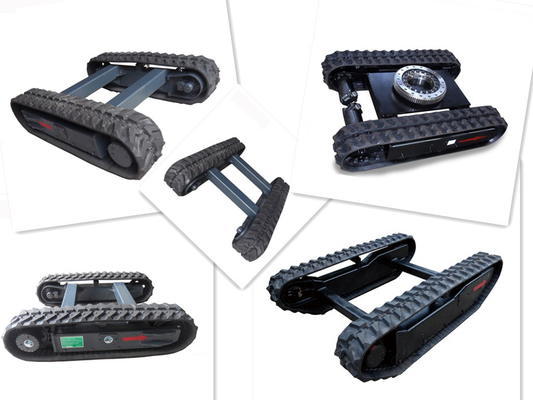

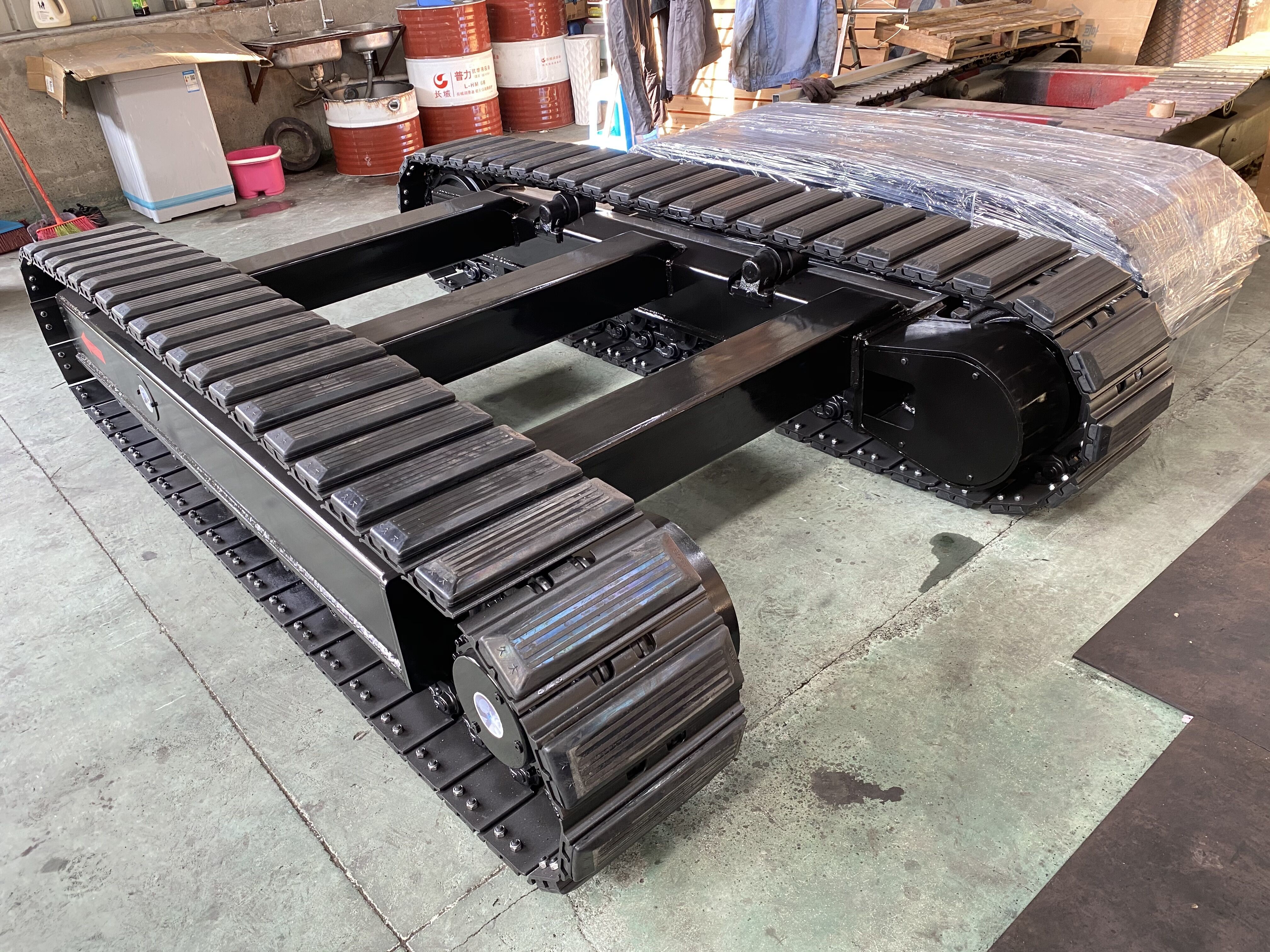

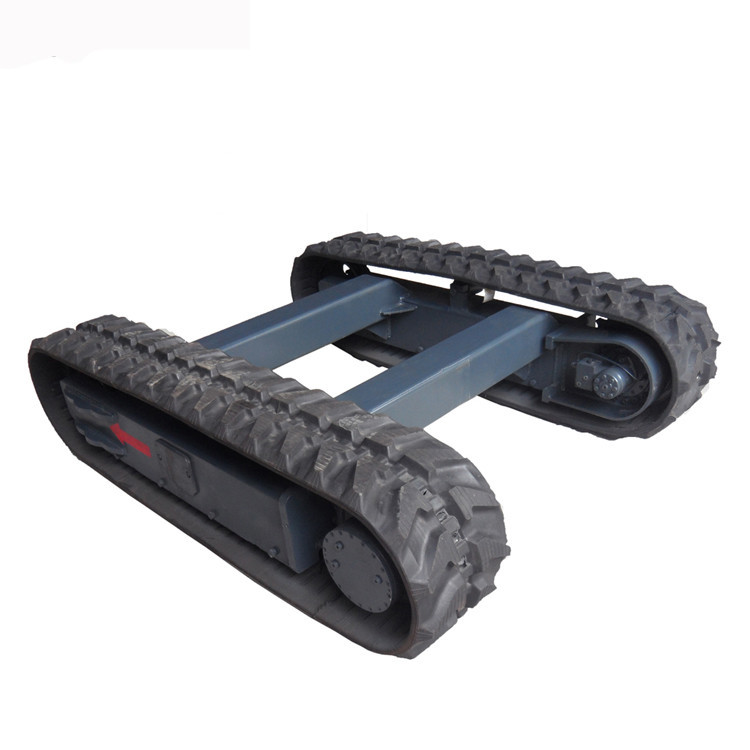

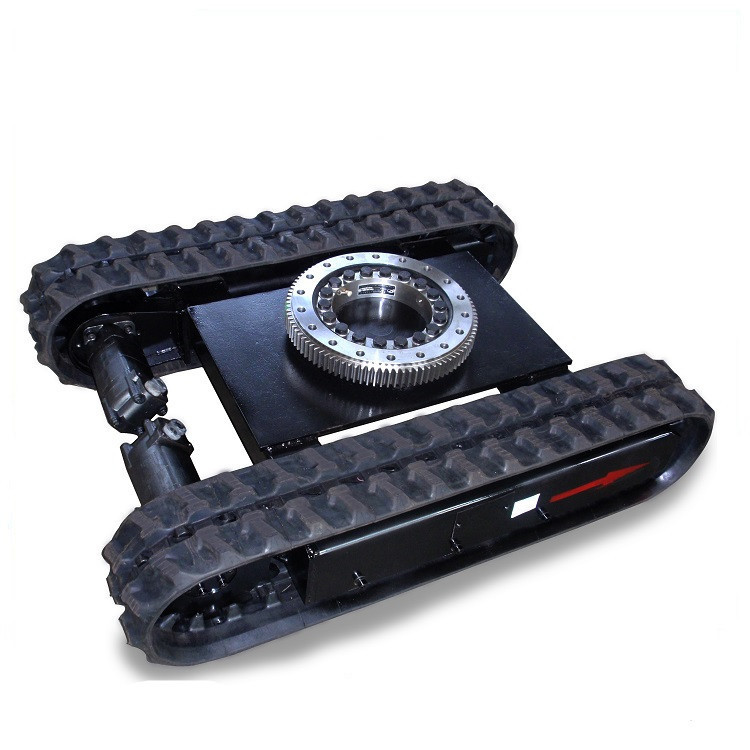

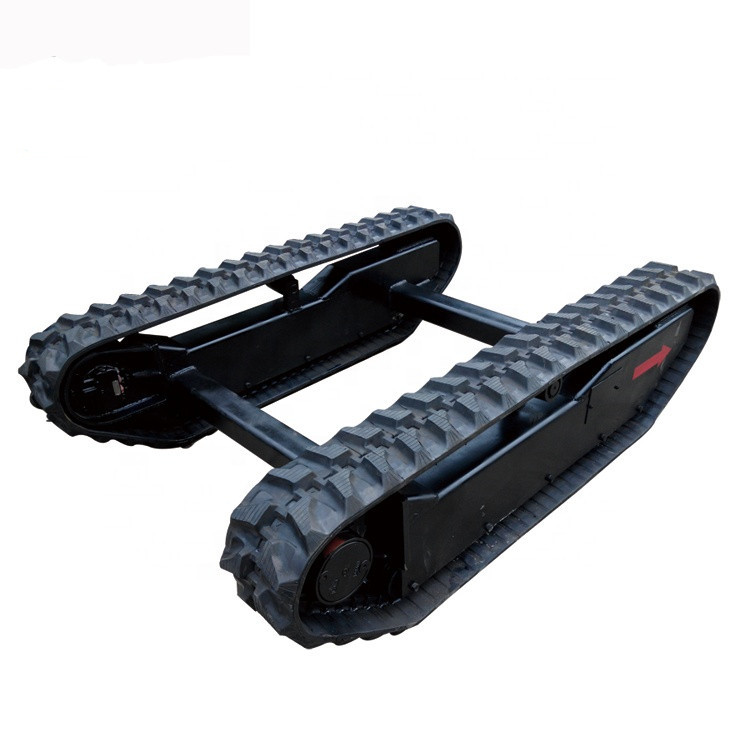

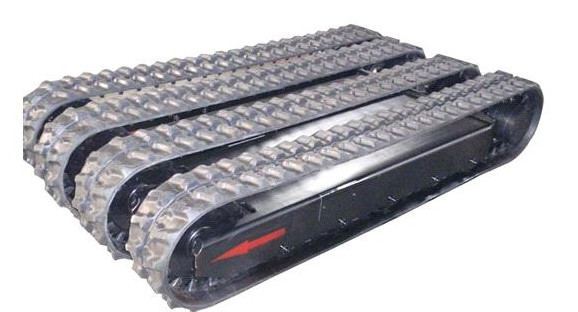

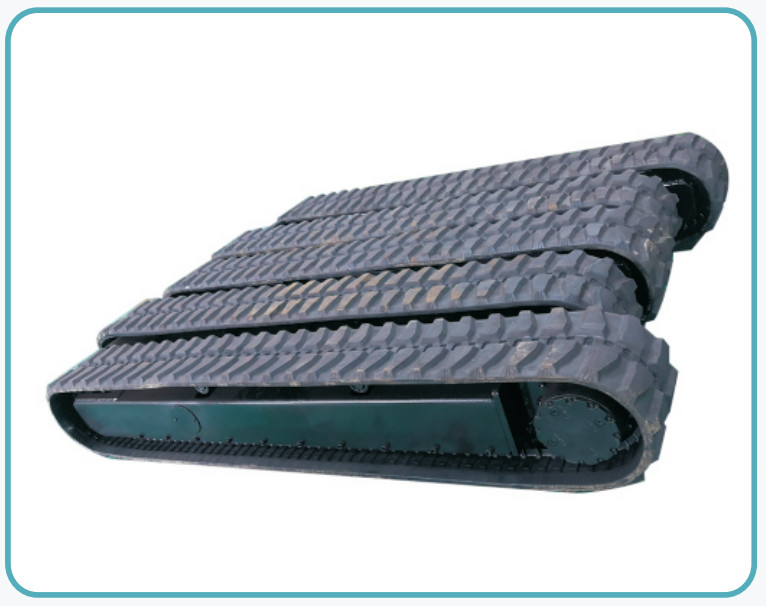

Picture of undercarriage for reference

China Rubber Track Undercarriage Manufacturer 8

FAQ

1. Are you the manufacturer or trader?

We are the manufacturer with more than 20 years experience engaged in designing and manufacturing of undercarriage.

2. How long is the delivery?

Usually it is 20 days for the production.

3. What's the warranty of your product?

We can offer you 12 months quality guarantee period after receipt of product.

4. Can you custom make the product?

Yes, all dimensions and specifications can be designed and made based on your requirements.

5. How to order?

To make sure the offered undercarriage is suitable for your application, please offer the following details:

1. Rubber or steel track undercarriage:

2. What is the payload of undercarriage:

Note: it is the weight of machine excluding the weight of undercarriage.

3. length of track undercarriage (mm):

4. width of each side of track undercarriage (mm):

5. height of track undercarriage (mm):

6. total width of track undercarriage (mm):
7. working flow rate per each side of undercarriage (L/min):
8. working pressure (MPa):

9. travelling speed (km/hr):

10. climbing capacity:
