Lifting Equipment 2/3/4/5/6/8/10/12/15/20/30 Ton Hydraulic Winch for Truck/Tractor/Drilling Rig/Excavator/Marine Boat/Cr
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPull Force | 500-60,000kgs | Rope Speed | 0-200m/min |
---|---|---|---|
Dimension | Custom Built | Contact | Cathy |
Skype | Kemercathy | Kemercn@hotmail.com; Cathyhsu@foxmail.com | |
+8613486645746 | Application | Cranes,petroleum,drill Machine,drill Rig,harbor | |
Capacity | 1000 - 100000kgs | Power Source | Hydraulic |
Material | Steel | Product Name | Hydraulic Winch |
We are the manufacturer of hydraulic winch from Ningbo, China.
We have more than 20 years' experiences in designing and manufacturing different kinds of hydraulic winch for widely application.
Production procedure: designing the drawing-confirmation by customer-production
For the hydraulic winch, it is the custom product. Each customer has different requirements for the pull force, rope speed, rope diameter, drum capacity and dimension of hydraulic winch. We have experienced engineering tems who can offer special design for each application.
How to get suitable hydraulic winch?
To make sure the winch we offered is suitable for your application, please offer:
1. pull force of inner layer (kg):
2. rope speed of inner layer (m/min):
3. rope diameter (mm):
4. length of rope (m):
5. drum diameter (mm):
6. with or without groove:
7. with or without brake:
For more, please send inquiry to:
Cathy Hsu
Sales manager
Email: cathyhsu@foxmail.com
Skype: kemercathy
Whatsapp/wechat/tel: +86 134 8664 5746

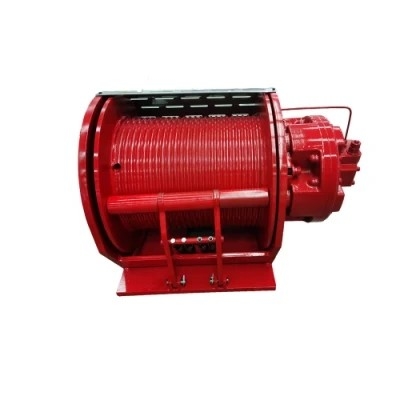

Here what we describe is our GW series hydraulic winch which is driven by radial piston hydraulic motor.
♦ Normally closed friction type brake, high braking torque, safe and reliable operating.
♦ Small volume, compact structure and high transmission efficiency.
♦ Radial piston hydraulic motor with long life operating.
♦ Mounting frame is available on request.
♦ Balance valve, shuttle valve, limit switch and other accessories are also available on request
Specification
For the folowing specification in the table, it is for your reference. We can also manufacture the winch with pull force up to 60,000kgs based on your requirements.
Model | W.L.L. 1st layer |
W.L.L. top layer |
Rope Speed |
Rope diam. |
Capacity of Rope |
Working Pressure |
Max Supply Oil Flow |
|
kgf | kgf | m/min | mm | m | Mpa | L/min |
|
|
GW1000 | 1000 | 860 | 30 | 10 | 60 | 16 | 40 | |
GW2000 | 2000 | 1680 | 30 | 12 | 50 | 16 | 70 | |
GW3000 | 3000 | 2526 | 35 | 15 | 65 | 16 | 80 | |
GW4000 | 4000 | 3335 | 35 | 16 | 65 | 17 | 100 | |
GW5000 | 5000 | 4167 | 40 | 20 | 87 | 16 | 160 | |
GW6000 | 6000 | 4922 | 40 | 21.5 | 68 | 16 | 190 | |
GW8000 | 8000 | 6698 | 40 | 24 | 100 | 16 | 260 | |
GW10000 | 10000 | 7846 | 40 | 28 | 90 | 16 | 310 | |
GW12000 | 12000 | 10080 | 30 | 30 | 175 | 17 | 270 | |
GW15000 | 15000 | 9880 | 25 | 34 | 150 | 20 | 240 | |
GW18000 | 18000 | 14700 | 30 | 38 | 143 | 18 | 360 |
Custom service
The above specification is just for your reference. We can also design and manufacture the hydraulic winch based on your detail requirements.
Detail of hydraulic winch
Company overview
Application of hydraulic winch
Our hydraulic winches can be widely used in conveyor tensioning device and mechanical engineering from heavy machinery such as truck crane, crawler crane, aerial vehicles, forestry crane, and shipping ports such as port cranes, floating crane, dredger, cranes, davits, and can for large play equipment such as oil rigs and offshore oil drilling platform, piling machinery rotary drilling rig, drilling, core drilling, hydrostatic pressure pile machine and so on.
Q: Are you trading company or manufacturer ?
A: We are factory of hydraulic winch.
Q: How long is your delivery time?
A: Generally it is 15-35 days if the goods is the standard dimension.
Q: Can you custom make the product?
A: Yes, all dimensions and specifications of hydraulic winch can be designed and made based on your requirements.
Q: How to order?
A: To make sure the offered hydraulic winch is suitable for your application, please offer the following details:
1. pull force of inner layer (kg):
2. rope speed of inner layer (m/min):
3. rope diameter (mm):
4. length of rope (m):
5. drum diameter (mm):
6. with or without groove:
7. with or without brake:
If you have another question about the hydraulic winch, pls feel free to contact us.
