China Lifting Equipment 2/3/4/5/6/8/10/12/15/20/30 Ton Truck/Tractor/Drilling Rig/Excavator/Marine Boat/Crane Hydraulic Winch

  • China Lifting Equipment 2/3/4/5/6/8/10/12/15/20/30 Ton Truck/Tractor/Drilling Rig/Excavator/Marine Boat/Crane Hydraulic Winch
  • China Lifting Equipment 2/3/4/5/6/8/10/12/15/20/30 Ton Truck/Tractor/Drilling Rig/Excavator/Marine Boat/Crane Hydraulic Winch
  • China Lifting Equipment 2/3/4/5/6/8/10/12/15/20/30 Ton Truck/Tractor/Drilling Rig/Excavator/Marine Boat/Crane Hydraulic Winch
  • China Lifting Equipment 2/3/4/5/6/8/10/12/15/20/30 Ton Truck/Tractor/Drilling Rig/Excavator/Marine Boat/Crane Hydraulic Winch
  • China Lifting Equipment 2/3/4/5/6/8/10/12/15/20/30 Ton Truck/Tractor/Drilling Rig/Excavator/Marine Boat/Crane Hydraulic Winch
  • China Lifting Equipment 2/3/4/5/6/8/10/12/15/20/30 Ton Truck/Tractor/Drilling Rig/Excavator/Marine Boat/Crane Hydraulic Winch
Place of Origin CHINA
Brand Name cathyhsu@foxmail.com
Certification ISO9001
Model Number GW series hydraulic winch
Minimum Order Quantity 1 set
Price contact me for discussion
Packaging Details plywood case
Delivery Time 7-40 days
Payment Terms L/C, T/T
Supply Ability 500 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material STEEL Color On Request
Rope Speed 0-300m/min On Request Application Heavy-duty Lifting And Pulling
Rated Line Pull 500-80,000kgs Braking System Disc Brake
Motor Type Hydraulic Motor Power Source Hydraulic
Leave a Message
Product Description

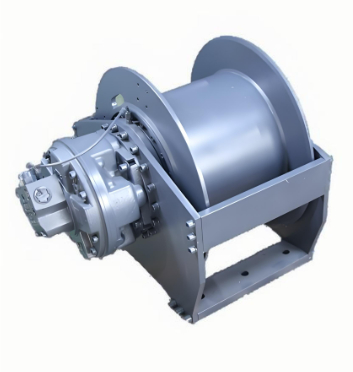

China Lifting Equipment 2/3/4/5/6/8/10/12/15/20/30 Ton Truck/Tractor/Drilling Rig/Excavator/Marine Boat/Crane Hydraulic Winch 0

GW hydraulic winch for oil drilling rig use the patent technique of our company and consist of a variety of valve blocks with function of braking and single counterbalance valve, high speed hydraulic motor, Z type brake, GFR type or GFP type planetary gearbox,drum,frame and clutch. The user only needs to provide a hydraulic power pack and directional valve. Due to the industrial Hydraulic Winch fitted with diversified valve block, it not only simplified the hydraulic system, but also improved the reliability of the winch. In addition, the industrial Hydraulic Winch feature a high efficiency and power, low noise and energy consumption,and have a compact figure and good economic valve. Therefore, the series have been widely applied to construction,petroleum,mining,geological drilling, ship and deck machinery. GW series industrial Hydraulic Winch have been well sold in China, and also have been exported to the Middle-east, south-east Asia India, Korea, Russia, Australia. US Netherlands and so on.

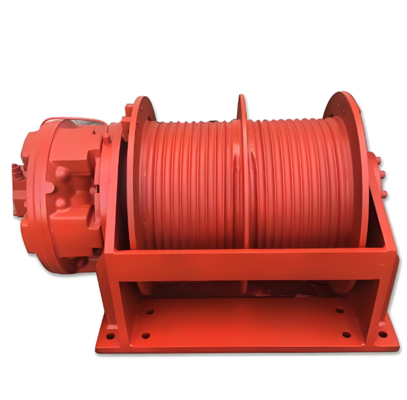

China Lifting Equipment 2/3/4/5/6/8/10/12/15/20/30 Ton Truck/Tractor/Drilling Rig/Excavator/Marine Boat/Crane Hydraulic Winch 1



Special Features
1) One-or two-stage planetary gearboxes, smooth operation and reasonable structure.
2) Normally closed friction type brake, high braking torque, safe and reliable operating.
3) Small volume, compact structure and high transmission efficiency.
4) Radial piston hydraulic motor with long life operating.
5) Mounting frame is available on request.
6) Balance valve, shuttle valve, limit switch and other accessories are also available on request.



Application:
GW series hydraulic winches are widely used in marine deck machinery, harbor, petroleum, drill machine, engineering machinery, mining, geological exploration and construction machinery

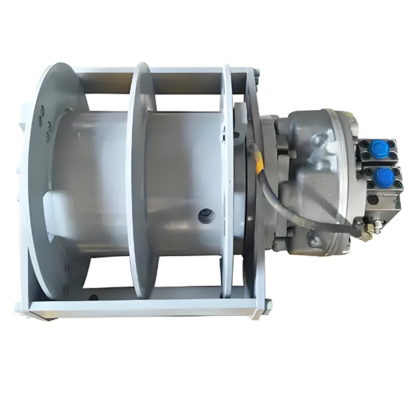

China Lifting Equipment 2/3/4/5/6/8/10/12/15/20/30 Ton Truck/Tractor/Drilling Rig/Excavator/Marine Boat/Crane Hydraulic Winch 2



Technical parameters:

Model the 1st layer Diameter of reel bottom (mm) Diameter of rope (mm) Capacity of rope (mm) Hydraulic motor Gearbox Model
Pull Force (KN) Rope Speed (m/min)
GW2.5-10-60-10-ZP 10 0-30 238 10 60 GM05-110D51 C2.5-5
GW2.5-20-50-12-ZP 20 0-30 238 12 50 GM05-200D51 C2.5-5.5
GW3-30-65-15-ZP 30 0-35 305 15 65 GM2-420D51 C3-5
GW3-40-60-16-ZP 40 0-35 305 16 60 GM2-500D51 C3-5.5
GW4-50-70-20-ZP 50 0-40 380 20 70 GM3-900D240101 C4-5
GW4-60-68-21.5-ZP 60 0-40 380 21.5 68 GM3-1000D240101 C4-5.5
GW5-80-100-24-ZP 80 0-40 470 24 100 GM5-1800D240101 C5-5
GW5-100-90-28-ZP 100 0-40 470 28 90 GM5-2000D240101 C5-5.5
GW6-120-176-30-ZP 120 0-30 600 30 175 GM6-3000D480101 C6-5.5
GW6-150-150-34-ZP 150 0-25 600 34 150 GM6-3000D480101 C6-5.5



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory of hydraulic winch.

Q: How long is your delivery time?

A: Generally it is 5-25 days if the goods is the standard dimension.

Q: Can you custom make the product?

A: Yes, all dimensions and specifications of hydraulic winch can be designed and made based on your requirements.

Q: How to order?

A: To make sure the offered hydraulic winch is suitable for your application, please offer the following details:

1. pull force of inner layer (kg):

2. rope speed of inner layer (m/min):

3. rope diameter (mm):

4. length of rope (m):

5. drum diameter (mm):

6. with or without groove:

7. with or without brake:
