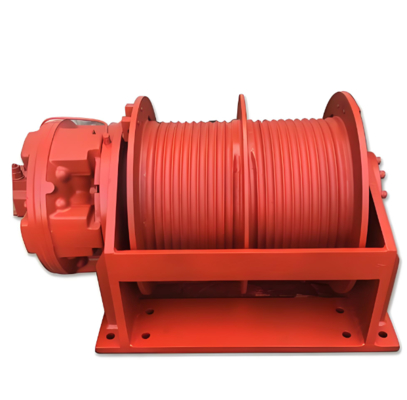

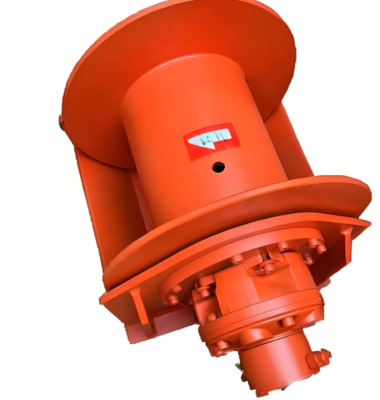

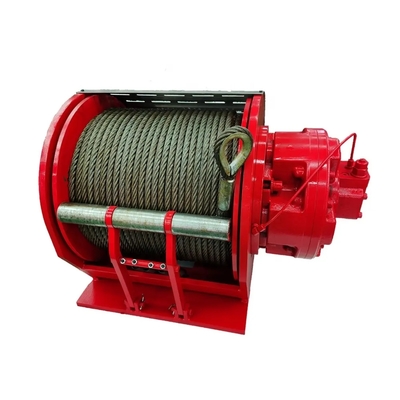

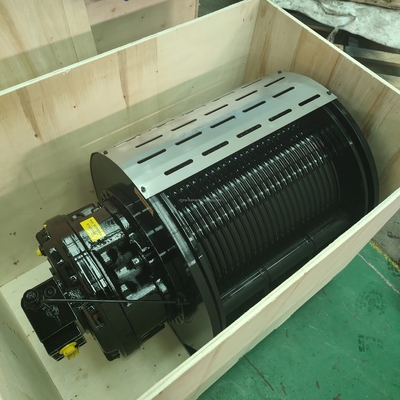

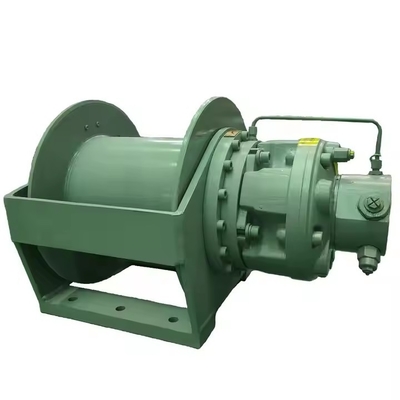

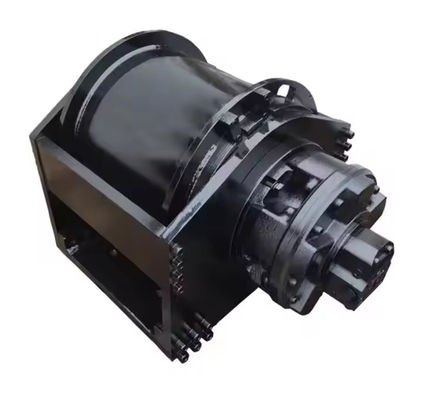

China 0.8 Ton 1 Ton 1.5 Ton 2 5 8 10 20 50 Ton Hydraulic Winch for Drilling Rig

GW hydraulic winch for oil drilling rig use the patent technique of our company and consist of a variety of valve blocks with function of braking and single counterbalance valve, high speed hydraulic motor, Z type brake, GFR type or GFP type planetary gearbox,drum,frame and clutch. The user only needs to provide a hydraulic power pack and directional valve. Due to the industrial Hydraulic Winch fitted with diversified valve block, it not only simplified the hydraulic system, but also improved the reliability of the winch. In addition, the industrial Hydraulic Winch feature a high efficiency and power, low noise and energy consumption,and have a compact figure and good economic valve. Therefore, the series have been widely applied to construction,petroleum,mining,geological drilling, ship and deck machinery. GW series industrial Hydraulic Winch have been well sold in China, and also have been exported to the Middle-east, south-east Asia India, Korea, Russia, Australia. US Netherlands and so on.

hydraulic winch key components

A hydraulic winch is mainly composed of the following key components:
- **Hydraulic Motor**: Provides the driving force by converting hydraulic energy into mechanical rotational motion.
- **Gearbox/Reducer**: Reduces the high speed of the hydraulic motor to increase torque, suitable for heavy lifting or pulling.
- **Drum**: Wraps the rope or cable, which rotates to wind or unwind the rope for lifting or pulling operations.
- **Hydraulic Control System**: Includes valves (such as directional control valves, flow control valves, pressure relief valves) to regulate the direction, speed, and pressure of the hydraulic fluid, thus controlling the winch's start, stop, forward, and reverse movements.
- **Frame/Base**: Supports and fixes all the components, ensuring the stability of the winch during operation.
- **Brake System**: Usually consists of a hydraulic brake or mechanical brake to prevent the drum from rotating when the winch stops, ensuring safe load holding.
- **Rope Guide (Optional)**: Helps evenly distribute the rope on the drum to avoid rope jamming or overlapping.
eries of winches features a compact and elegant figure, small size and lightweight, high efficiency and power, low noise, and good operating performance, and the two single brakes can give the winches good safety. This series of hydraulic winches has been approved by CCS and BV, and they can be used for shore applications to live people. Technical specifications follow international conventions on the law of the sea.

Special Features
1) One-or two-stage planetary gearboxes, smooth operation and reasonable structure.
2) Normally closed friction type brake, high braking torque, safe and reliable operating.
3) Small volume, compact structure and high transmission efficiency.
4) Radial piston hydraulic motor with long life operating.
5) Mounting frame is available on request.
6) Balance valve, shuttle valve, limit switch and other accessories are also available on request.


Application:
GW series hydraulic winches are widely used in marine deck machinery, harbor, petroleum, drill machine, engineering machinery, mining, geological exploration and construction machinery

Technical parameters:

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory of hydraulic winch.

Q: How long is your delivery time?

A: Generally it is 5-25 days if the goods is the standard dimension.

Q: Can you custom make the product?

A: Yes, all dimensions and specifications of hydraulic winch can be designed and made based on your requirements.

Q: How to order?

A: To make sure the offered hydraulic winch is suitable for your application, please offer the following details:

1. pull force of inner layer (kg):

2. rope speed of inner layer (m/min):

3. rope diameter (mm):

4. length of rope (m):

5. drum diameter (mm):

6. with or without groove:

7. with or without brake:
