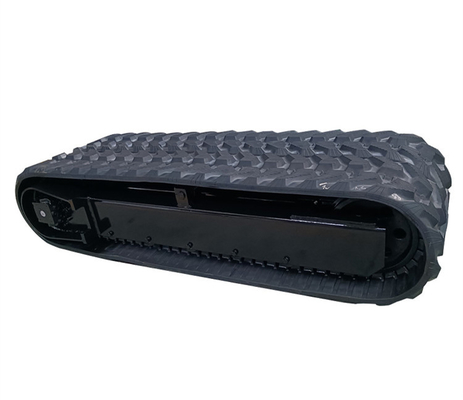

Custom Built Rubber Crawler Assembly

Place of Origin CHINA
Brand Name cathyhsu@foxmail.com
Certification ISO9001
Model Number rubber crawler assembly
Minimum Order Quantity 1 set
Price contact me for discussion
Packaging Details pallet
Delivery Time 25-40 days
Payment Terms L/C, T/T
Supply Ability 1000 pairs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Payload 500 Kgs - 16000kgs Travelling Speed 0-5km/hr
Dimension Custom Built For Length*width*height Application Drilling Rig, Crusher, Excavator, Crane, Aerial Work Platform, Etc.
Leave a Message
Product Description



We are specialized in designing and manufacturing rubber crawler assembly, including engineering machinery undercarriage, driling rig rubber crawler assembly, crusher rubber crawler assembly, excavator rubber crawler assembly, aerial work platform rubber crawler assembly, skid steer rubber crawler assembly, agricultural machinery rubber crawler assembly, garden rubber crawler assembly, etc.



rubber track undercarriage; rubber track chassis; rubber track system; rubber track frame; rubber trcked undercarriage; rubber crawler undercarriage, drilling rig track undercarriage; crusher track undercarriage

China manufacturer of rubber crawler assembly



Load capacity: 500 kgs to 16,000kgs

Dimension: custom built for length*width*height

Type rubber crawler assembly
Applied for drilling rig, crusher, crane, excavator, piling rig, aerial work platform machinery; minging machinery, etc.
Travelling speed 0-6km/hr
Travel motor single speed, dual speed on request
Selection of cross beam cross beam; with slew bearing; with slew drive; on request



We are specialized rubber crawler assembly manufacturer and supplier from China. We have been specialized in designing and manufacturing the rubber crawler assembly (rubber track chassis) for more than 15 years. The dimension can be customized design based on real application of customer’s.



Since the establishment, we keep the whole world in view and blaze steadily new trails. By now, we have developed various Custom Built Track Undercarriage and the load capacity is from 0.5 ton to 80 ton. Meanwhile, we have a lot of experience engineers who can provide you technical support and technical consultancy to meet your needs.



Features of Custom Built rubber crawler assembly


1. Adopt high strength engineering rubber track.

2. The track motor of rubber track undercarriage can be fixed displacement or variable displacement concealed planetary gearbox and hydraulic motor. If you need, we can also provide track motor made by our own factory.

3. The beam of 1 ton rubber track undercarriage is made of Q345B with high loading capacity.

4. It can also be designed and manufactured on customers' request for the rubber track undercarriage.



Technical parameters of rubber crawler assembly


MODEL Dynamic
capacity
Static
capacity
Weight
kg.
Press.Bar oil flow
L/min
Torque
Nm to
engine
Grad. Speed
km/h
RT-1500 1200 1500 330 270 17 2000 65% 1.7
RT-2500 2500 3000 380 220 35 4723 65% 2/3.2
RT-3500 3500 4000 650 220 35 4723 65% 2/3.5
RT-5000 5000 6000 900 220 55 8330 65% 2/3.7
RT-6000 6000 7000 1280 220 55 8330 65% 2/3.7
RT-8000 8000 9500 1550 300 82 11700 65%

2.8/4.7

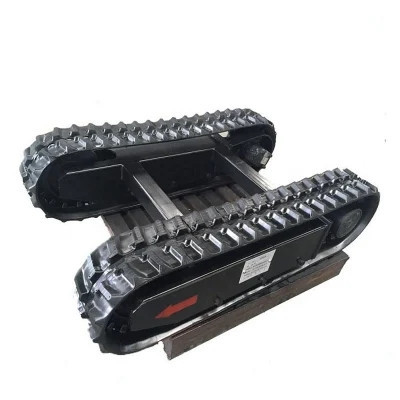

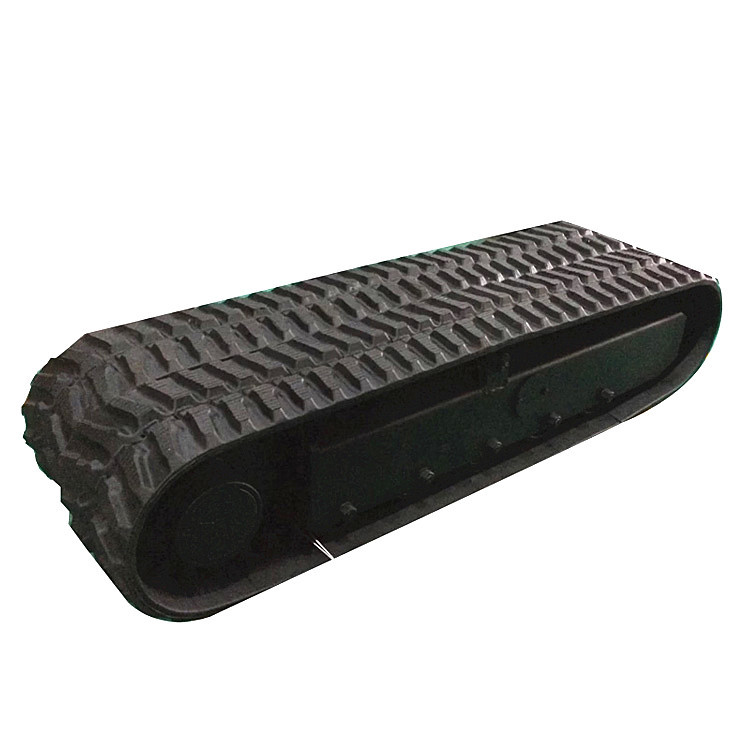

 Custom Built Rubber Crawler Assembly 1

MODEL A
Length
B
Center Distance
C
Height
D
Total Width
E
Width of track shoe
F
Height of Cross beam
No. of
roller
RT-1500 1420 1066 350 980 230 165 3+3
RT-2500 1850 1370 480 1220 250 245 4+4
RT-3500 1980 1511 500 1520 300 250 5+5
RT-5000 2500 1950 550 1800 350 265 6+6
RT-6000 2905 2355 550 1800 400 265 7+7
RT-8000 2950 2450 600 1800 400 310 7+7





Structure of track undercarriage

Custom Built Rubber Crawler Assembly 2

Type of track undercarriage for selection:

  • Steel track undercarriage;
  • Rubber track undercarriage;
  • Steel track undercarriage with rubber pads

Custom Built Rubber Crawler Assembly 3



Application of Custom Built  rubber crawler assembly



Drilling machine: Anchor drilling rig, water well drilling rig, core drilling rig, Jet drilling rig, down-hole drilling rig, hydraulic crawler drilling rig, for poling rig, multipurpose drilling rig, no-dig drilling rig, etc.
Construction machinery machine: mini excavator, mini pilling machine, Aerial work platform, Small transport loading equipment, etc.
Coaling machine: slag-raking machine, tunnel drilling rig, hydraulic drilling machine, rock loader, etc
Mining machine: mobile crusher, heading machine, conveying equipment, etc.
Agriculture machine: Sugar cane harvester, lawn mower, compost turner, ditching machine, etc

Custom Built Rubber Crawler Assembly 4

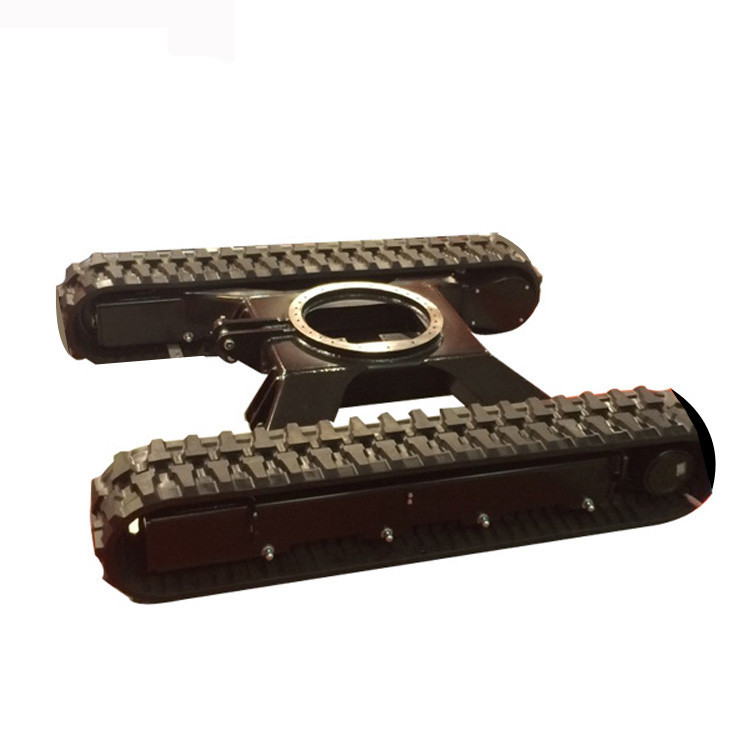

Type of cross member for selection

Custom Built Rubber Crawler Assembly 5

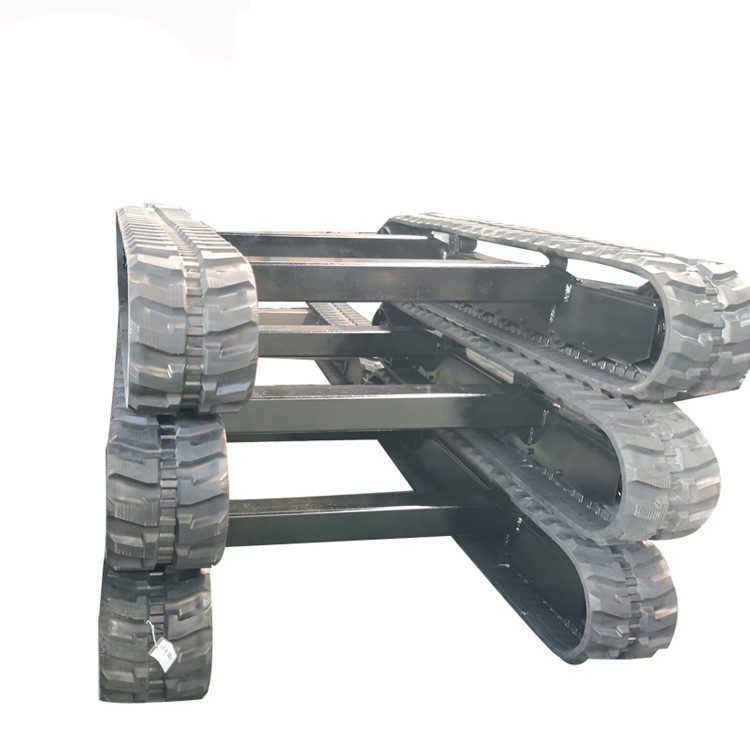

Package of rubber track undercarriage

Custom Built Rubber Crawler Assembly 6





FAQ


1. Are you the manufacturer or trader of Custom Built rubber crawler assembly?

We are the manufacturer with more than 20 years experience engaged in designing and manufacturing of rubber crawler assembly.

2. How long is the delivery?

Usually it is 25 days for the production.

3. What's the warranty of your product?

We can offer you 12 months quality guarantee period after receipt of product.

4. Can you custom make the product?

Yes, all dimensions and specifications of Track Undercarriage can be designed and made based on your requirements.

5. How to order?

To make sure the offered Custom Built rubber crawler assembly is suitable for your application, please offer the following details:

1. Rubber or steel crawler assembly:
2. What is the payload of undercarriage:
Note: it is the weight of machine excluding the weight of undercarriage.
3. length of track undercarriage (mm):
4. width of each side of track undercarriage (mm):
5. height of track undercarriage (mm):
6. total width of track undercarriage (mm):
7. working flow rate per each side of undercarriage (L/min):
8. working pressure (MPa):
9. travelling speed (km/hr):
10. climbing capacity:
