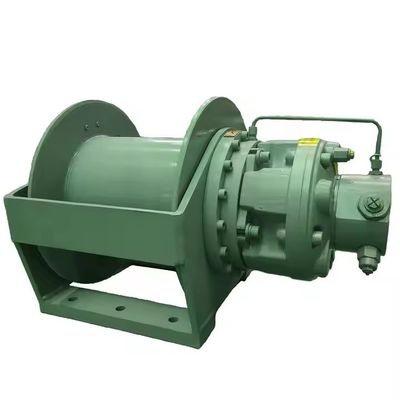

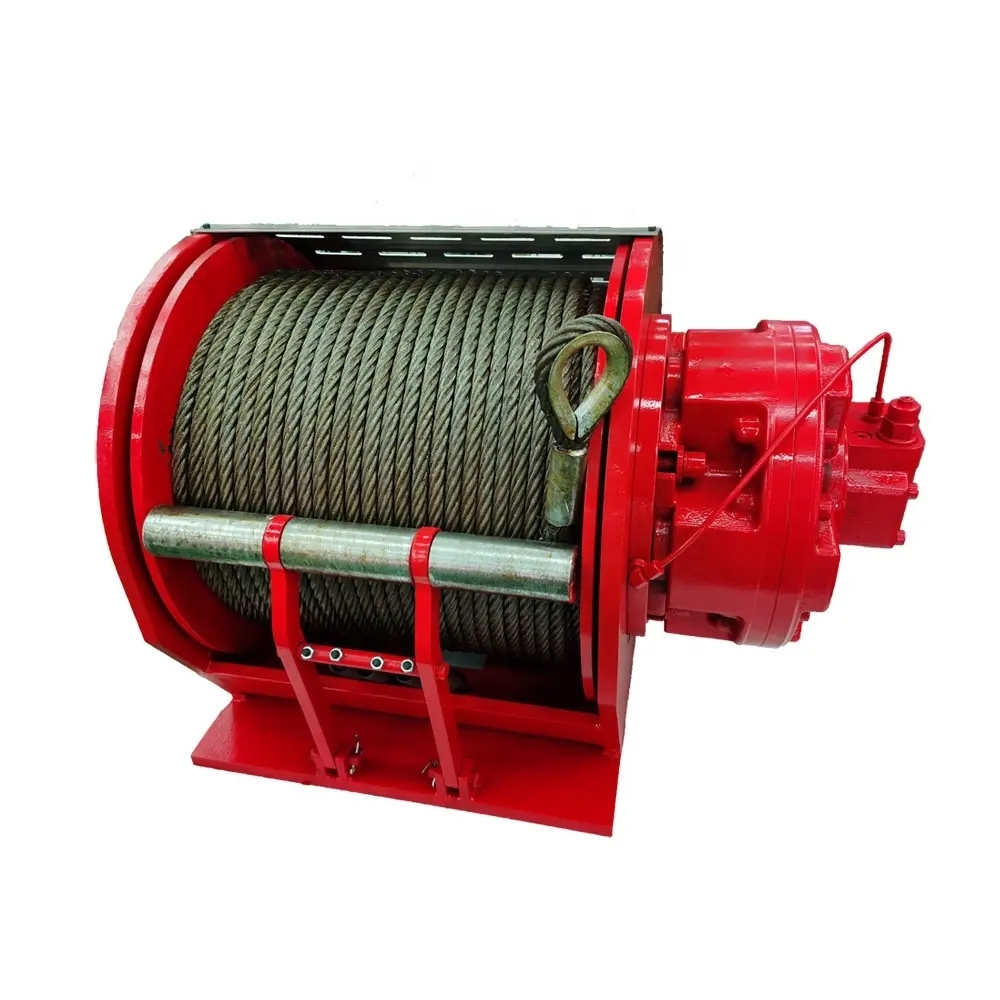

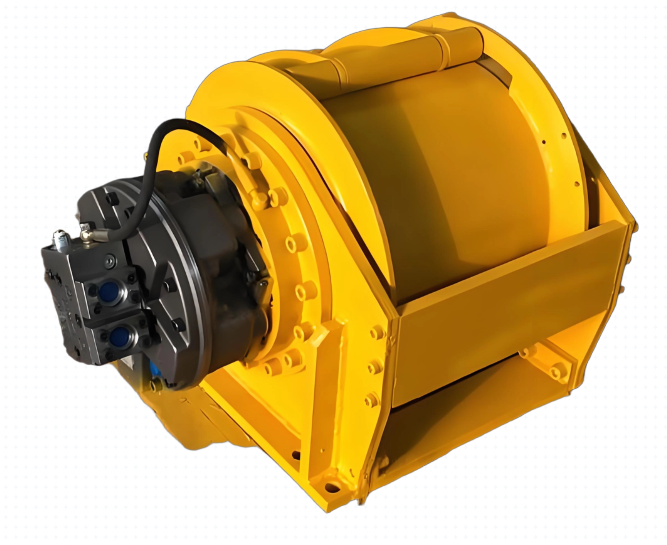

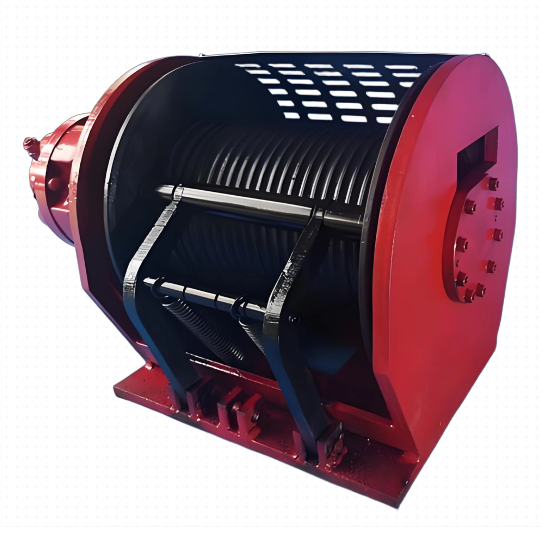

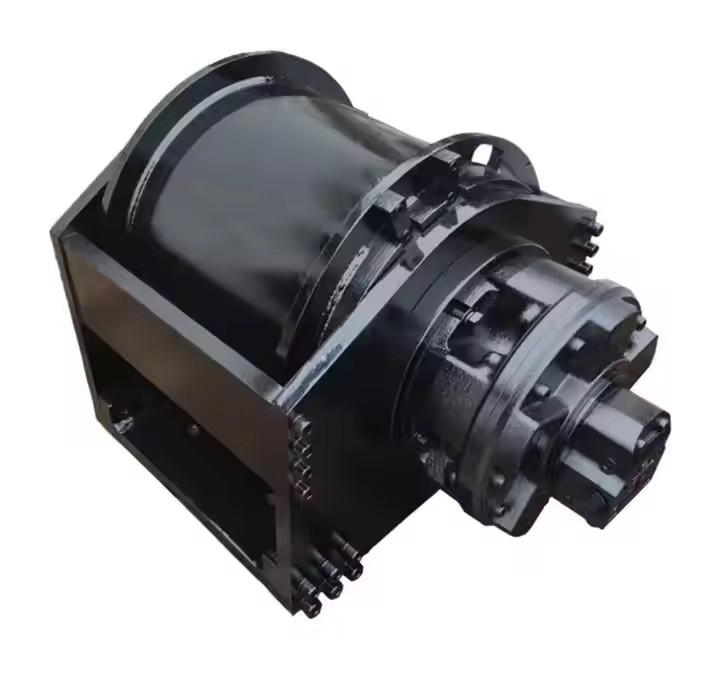

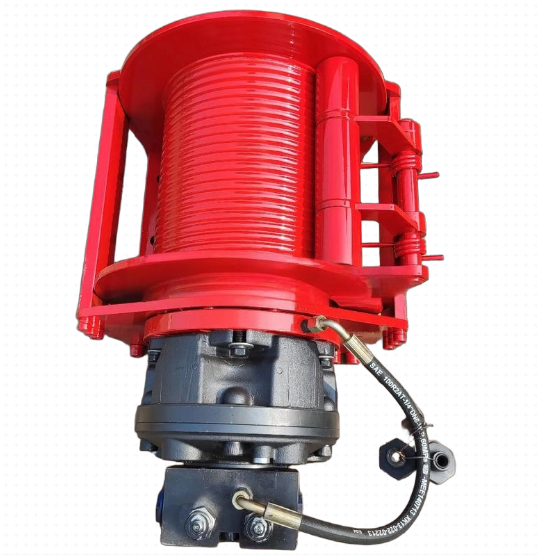

GW Series Industrial Hydraulic Winch for Oil Drilling Rigs & Heavy Machinery
| Place of Origin | CHINA |
|---|---|
| Brand Name | cathyhsu@foxmail.com |
| Certification | ISO9001 |
| Model Number | GW series hydraulic winch |
| Minimum Order Quantity | 1 set |
| Price | contact me for discussion |

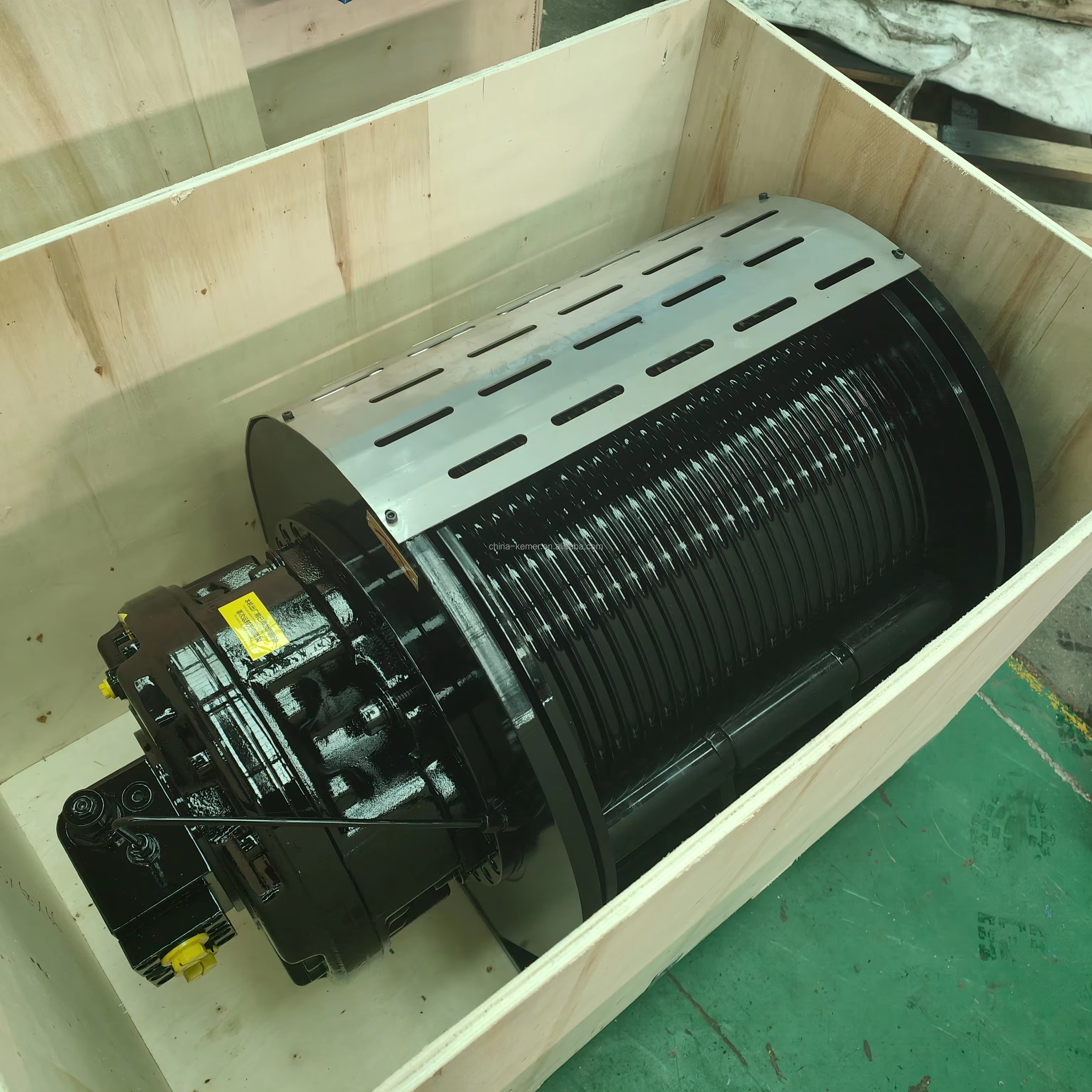

| Packaging Details | plywood case |
| Delivery Time | 7-40 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 500 units per month |
Product Details
| Material | STEEL | Color | On Request |
|---|---|---|---|
| Rope Speed | 0-300m/min On Request | Application | Heavy-duty Lifting And Pulling |
| Rated Line Pull | 500-80,000kgs | Braking System | Disc Brake |
| Motor Type | Hydraulic Motor | Power Source | Hydraulic |

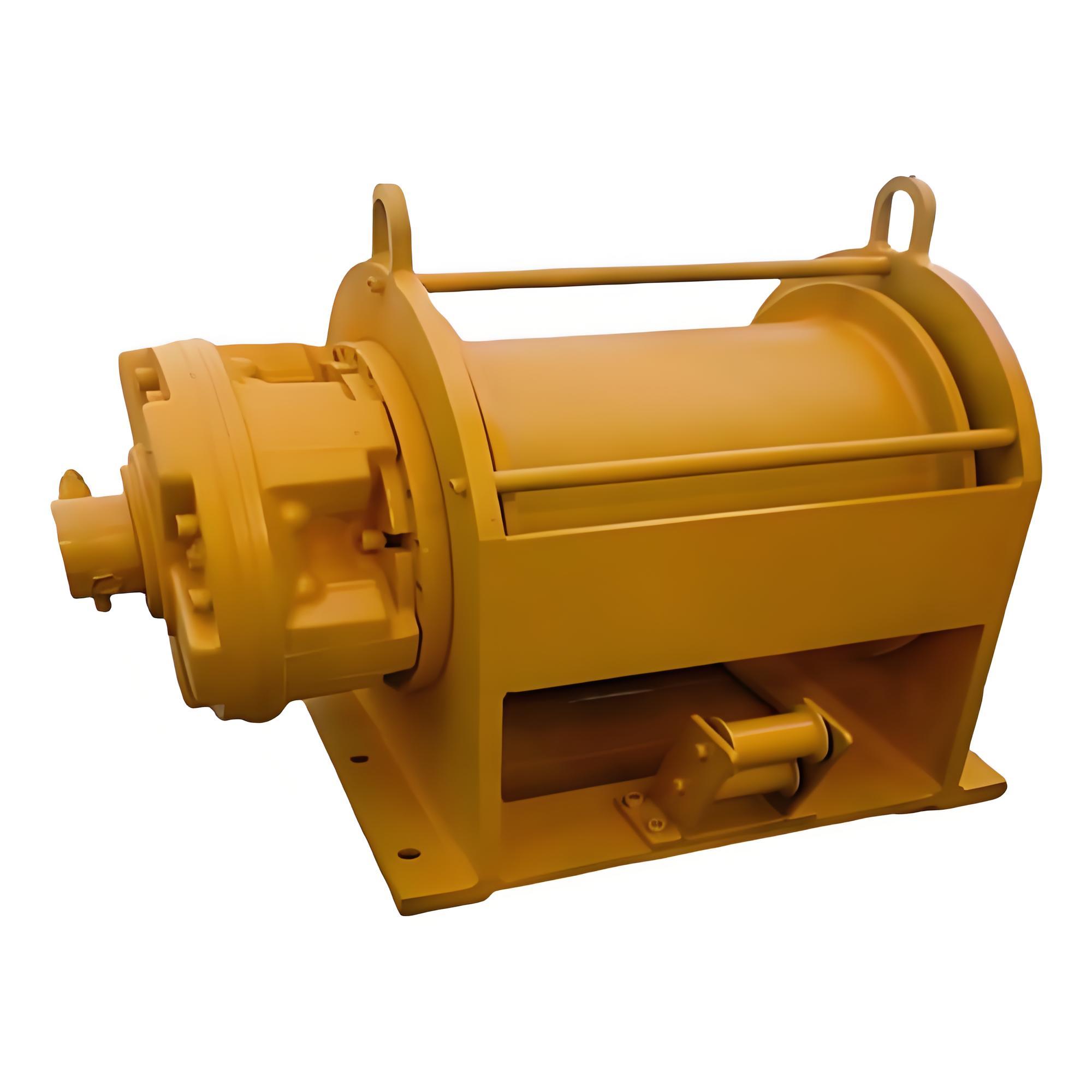

Product Description
GW hydraulic winches for oil drilling rigs adopt our patented technology. They integrate functional valve blocks with braking and single counterbalance valves, high-speed hydraulic motors, Z-type brakes, GFR/GFP planetary gearboxes, drums, frames, and clutches. Users only need to equip a hydraulic power pack and directional valve.
Equipped with diversified valve blocks, these industrial hydraulic winches simplify the hydraulic system and enhance overall reliability. They feature high efficiency, strong power, low noise, low energy consumption, a compact structure, and excellent cost-effectiveness.
They are widely used in construction, petroleum, mining, geological drilling, ships, and deck machinery. GW series hydraulic winches sell well across China and are exported to the Middle East, Southeast Asia, India, Korea, Russia, Australia, the US, the Netherlands, and other countries and regions.

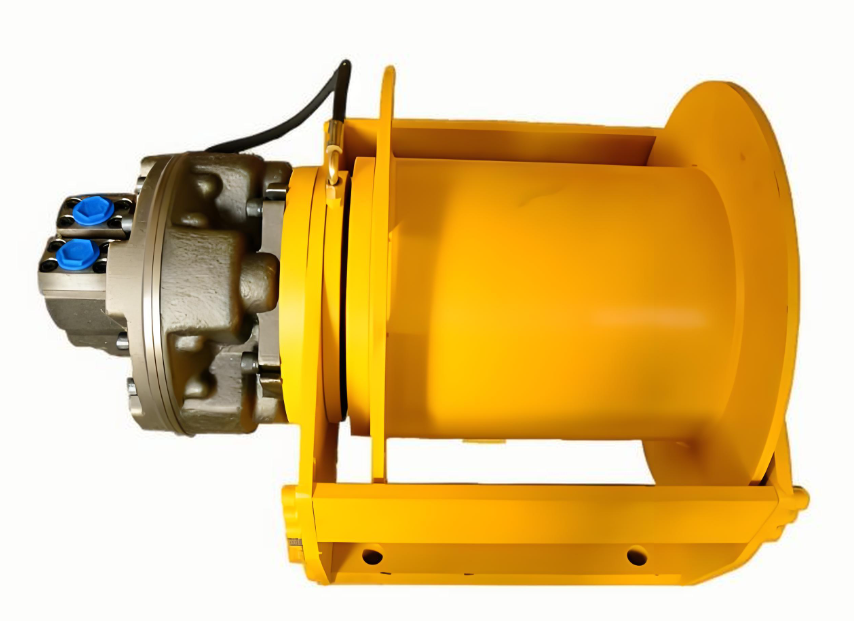

hydraulic winch key components
A hydraulic winch is mainly composed of the following key components:
- **Hydraulic Motor**: Provides the driving force by converting hydraulic energy into mechanical rotational motion.
- **Gearbox/Reducer**: Reduces the high speed of the hydraulic motor to increase torque, suitable for heavy lifting or pulling.
- **Drum**: Wraps the rope or cable, which rotates to wind or unwind the rope for lifting or pulling operations.
- **Hydraulic Control System**: Includes valves (such as directional control valves, flow control valves, pressure relief valves) to regulate the direction, speed, and pressure of the hydraulic fluid, thus controlling the winch's start, stop, forward, and reverse movements.
- **Frame/Base**: Supports and fixes all the components, ensuring the stability of the winch during operation.
- **Brake System**: Usually consists of a hydraulic brake or mechanical brake to prevent the drum from rotating when the winch stops, ensuring safe load holding.
- **Rope Guide (Optional)**: Helps evenly distribute the rope on the drum to avoid rope jamming or overlapping.

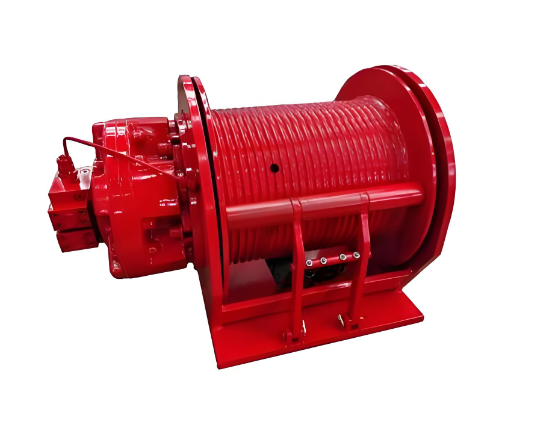

eries of winches features a compact and elegant figure, small size and lightweight, high efficiency and power, low noise, and good operating performance, and the two single brakes can give the winches good safety. This series of hydraulic winches has been approved by CCS and BV, and they can be used for shore applications to live people. Technical specifications follow international conventions on the law of the sea.
Special Features
1) One-or two-stage planetary gearboxes, smooth operation and reasonable structure.
2) Normally closed friction type brake, high braking torque, safe and reliable operating.
3) Small volume, compact structure and high transmission efficiency.
4) Radial piston hydraulic motor with long life operating.
5) Mounting frame is available on request.
6) Balance valve, shuttle valve, limit switch and other accessories are also available on request.
Application:
GW series hydraulic winches are widely used in marine deck machinery, harbor, petroleum, drill machine, engineering machinery, mining, geological exploration and construction machinery
Technical parameters:
| Model | the 1st layer | Diameter of reel bottom (mm) | Diameter of rope (mm) | Capacity of rope (mm) | Hydraulic motor | Gearbox Model | |
| Pull Force (KN) | Rope Speed (m/min) | ||||||
| GW2.5-10-60-10-ZP | 10 | 0-30 | 238 | 10 | 60 | GM05-110D51 | C2.5-5 |
| GW2.5-20-50-12-ZP | 20 | 0-30 | 238 | 12 | 50 | GM05-200D51 | C2.5-5.5 |
| GW3-30-65-15-ZP | 30 | 0-35 | 305 | 15 | 65 | GM2-420D51 | C3-5 |
| GW3-40-60-16-ZP | 40 | 0-35 | 305 | 16 | 60 | GM2-500D51 | C3-5.5 |
| GW4-50-70-20-ZP | 50 | 0-40 | 380 | 20 | 70 | GM3-900D240101 | C4-5 |
| GW4-60-68-21.5-ZP | 60 | 0-40 | 380 | 21.5 | 68 | GM3-1000D240101 | C4-5.5 |
| GW5-80-100-24-ZP | 80 | 0-40 | 470 | 24 | 100 | GM5-1800D240101 | C5-5 |
| GW5-100-90-28-ZP | 100 | 0-40 | 470 | 28 | 90 | GM5-2000D240101 | C5-5.5 |
| GW6-120-176-30-ZP | 120 | 0-30 | 600 | 30 | 175 | GM6-3000D480101 | C6-5.5 |
| GW6-150-150-34-ZP | 150 | 0-25 | 600 | 34 | 150 | GM6-3000D480101 | C6-5.5 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory of hydraulic winch.
Q: How long is your delivery time?
A: Generally it is 5-25 days if the goods is the standard dimension.
Q: Can you custom make the product?
A: Yes, all dimensions and specifications of hydraulic winch can be designed and made based on your requirements.
Q: How to order?
A: To make sure the offered hydraulic winch is suitable for your application, please offer the following details:
1. pull force of inner layer (kg):
2. rope speed of inner layer (m/min):
3. rope diameter (mm):
4. length of rope (m):
5. drum diameter (mm):
6. with or without groove:
7. with or without brake:
