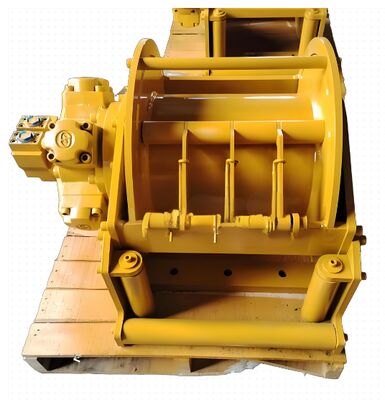

Hydraulic Dredger Winch | Custom Design | Factory Supply
| Place of Origin | CHINA |
|---|---|
| Brand Name | cathyhsu@foxmail.com |
| Certification | ISO9001 |
| Model Number | GW series hydraulic winch |
| Minimum Order Quantity | 1 set |
| Price | contact me for discussion |
| Packaging Details | plywood case |
| Delivery Time | 7-40 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 500 units per month |
Product Details
| Material | STEEL | Color | On Request |
|---|---|---|---|
| Rope Speed | 0-300m/min On Request | Application | Heavy-duty Lifting And Pulling |
| Rated Line Pull | 500-80,000kgs | Braking System | Disc Brake |
| Motor Type | Hydraulic Motor | Power Source | Hydraulic |
Product Description
Hydraulic Dredger Winch with Custom Design & Factory Supply
We provide professional hydraulic dredger winch for various dredging vessels, including cutter suction dredgers, trailing suction hopper dredgers, and other marine engineering ships. With custom design service, we can customize the pulling force, rope capacity, speed, structure, and control system according to your working conditions. As a professional factory supply, we offer direct sales, stable quality, competitive price, and after-sales support.
Features of Our Hydraulic Dredger Winch
- Heavy-duty hydraulic drive system
- Stable performance for long-term dredging work
- Safe and reliable braking system
- Easy operation and maintenance
Custom Design Hydraulic Dredger Winch
We support full custom design for your hydraulic dredger winch.
You can customize:
- Loading capacity (tonnage)
- Rope length and diameter
- Installation space and structure
Factory Supply & Advantage
As a direct factory supply, we have our own production workshop and professional technical team.
Our advantages:
- Factory direct price, no middleman
- Strict quality control
- Short delivery time
- Custom solution available
hydraulic winch key components
A hydraulic winch is mainly composed of the following key components:
- **Hydraulic Motor**: Provides the driving force by converting hydraulic energy into mechanical rotational motion.
- **Gearbox/Reducer**: Reduces the high speed of the hydraulic motor to increase torque, suitable for heavy lifting or pulling.
- **Drum**: Wraps the rope or cable, which rotates to wind or unwind the rope for lifting or pulling operations.
- **Hydraulic Control System**: Includes valves (such as directional control valves, flow control valves, pressure relief valves) to regulate the direction, speed, and pressure of the hydraulic fluid, thus controlling the winch's start, stop, forward, and reverse movements.
- **Frame/Base**: Supports and fixes all the components, ensuring the stability of the winch during operation.
- **Brake System**: Usually consists of a hydraulic brake or mechanical brake to prevent the drum from rotating when the winch stops, ensuring safe load holding.
- **Rope Guide (Optional)**: Helps evenly distribute the rope on the drum to avoid rope jamming or overlapping.
eries of winches features a compact and elegant figure, small size and lightweight, high efficiency and power, low noise, and good operating performance, and the two single brakes can give the winches good safety. This series of hydraulic winches has been approved by CCS and BV, and they can be used for shore applications to live people. Technical specifications follow international conventions on the law of the sea.
Special Features
1) One-or two-stage planetary gearboxes, smooth operation and reasonable structure.
2) Normally closed friction type brake, high braking torque, safe and reliable operating.
3) Small volume, compact structure and high transmission efficiency.
4) Radial piston hydraulic motor with long life operating.
5) Mounting frame is available on request.
6) Balance valve, shuttle valve, limit switch and other accessories are also available on request.
Application:
GW series hydraulic winches are widely used in marine deck machinery, harbor, petroleum, drill machine, engineering machinery, mining, geological exploration and construction machinery
Technical parameters:
| Model | the 1st layer | Diameter of reel bottom (mm) | Diameter of rope (mm) | Capacity of rope (mm) | Hydraulic motor | Gearbox Model | |
| Pull Force (KN) | Rope Speed (m/min) | ||||||
| GW2.5-10-60-10-ZP | 10 | 0-30 | 238 | 10 | 60 | GM05-110D51 | C2.5-5 |
| GW2.5-20-50-12-ZP | 20 | 0-30 | 238 | 12 | 50 | GM05-200D51 | C2.5-5.5 |
| GW3-30-65-15-ZP | 30 | 0-35 | 305 | 15 | 65 | GM2-420D51 | C3-5 |
| GW3-40-60-16-ZP | 40 | 0-35 | 305 | 16 | 60 | GM2-500D51 | C3-5.5 |
| GW4-50-70-20-ZP | 50 | 0-40 | 380 | 20 | 70 | GM3-900D240101 | C4-5 |
| GW4-60-68-21.5-ZP | 60 | 0-40 | 380 | 21.5 | 68 | GM3-1000D240101 | C4-5.5 |
| GW5-80-100-24-ZP | 80 | 0-40 | 470 | 24 | 100 | GM5-1800D240101 | C5-5 |
| GW5-100-90-28-ZP | 100 | 0-40 | 470 | 28 | 90 | GM5-2000D240101 | C5-5.5 |
| GW6-120-176-30-ZP | 120 | 0-30 | 600 | 30 | 175 | GM6-3000D480101 | C6-5.5 |
| GW6-150-150-34-ZP | 150 | 0-25 | 600 | 34 | 150 | GM6-3000D480101 | C6-5.5 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory of hydraulic winch.
Q: How long is your delivery time?
A: Generally it is 5-25 days if the goods is the standard dimension.
Q: Can you custom make the product?
A: Yes, all dimensions and specifications of hydraulic winch can be designed and made based on your requirements.
Q: How to order?
A: To make sure the offered hydraulic winch is suitable for your application, please offer the following details:
1. pull force of inner layer (kg):
2. rope speed of inner layer (m/min):
3. rope diameter (mm):
4. length of rope (m):
5. drum diameter (mm):
6. with or without groove:
7. with or without brake:
If you are looking for a reliable hydraulic dredger winch with professional custom design and direct factory supply, welcome to contact us for quotation, drawing, and technical support.
