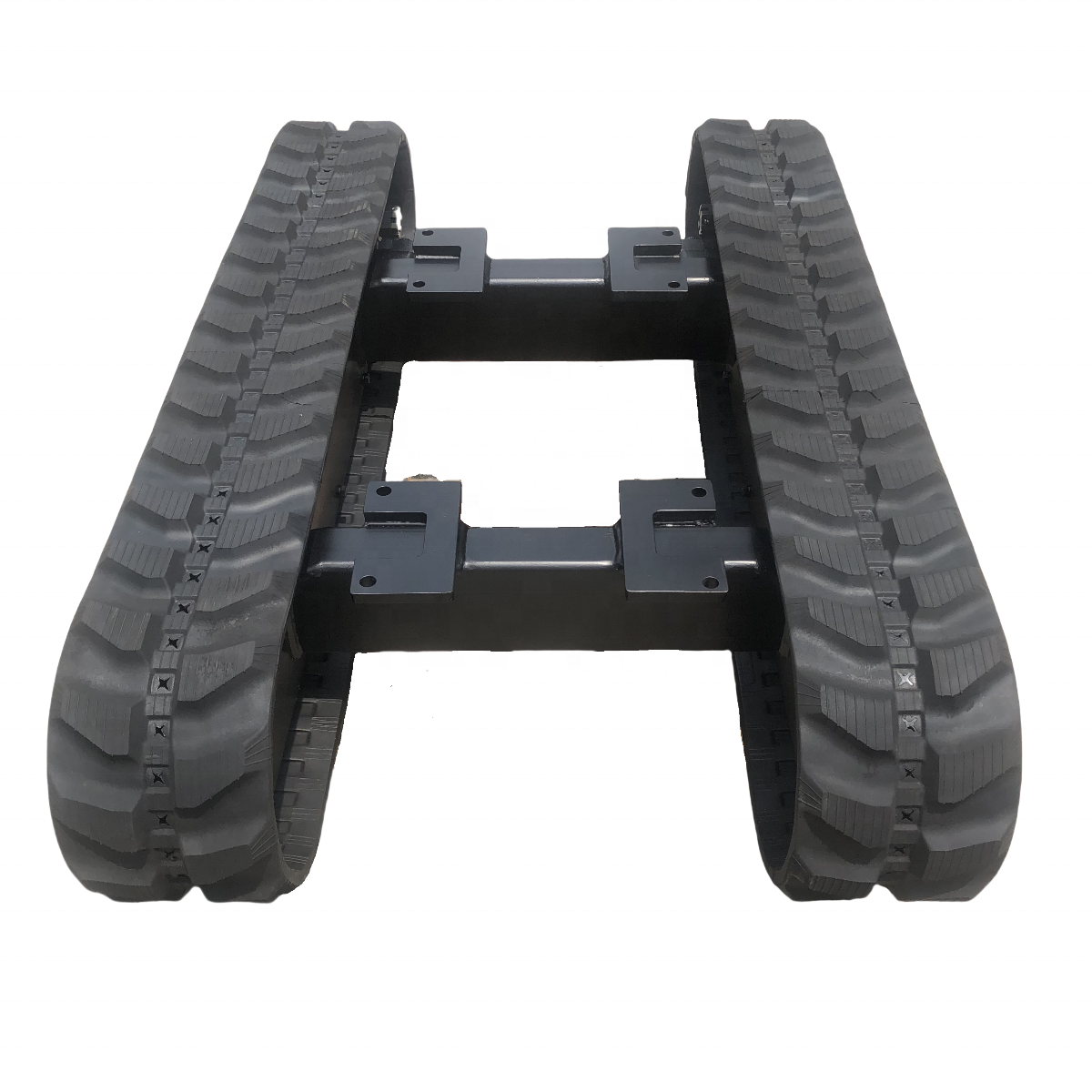

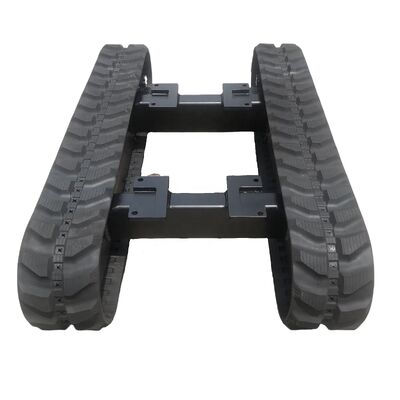

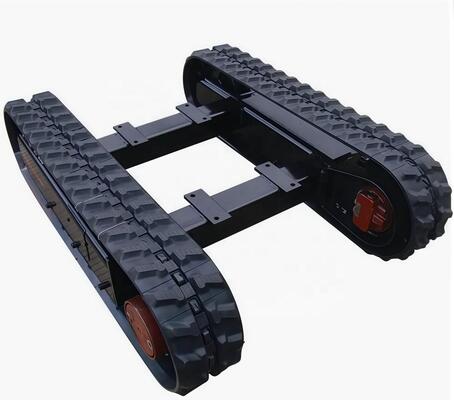

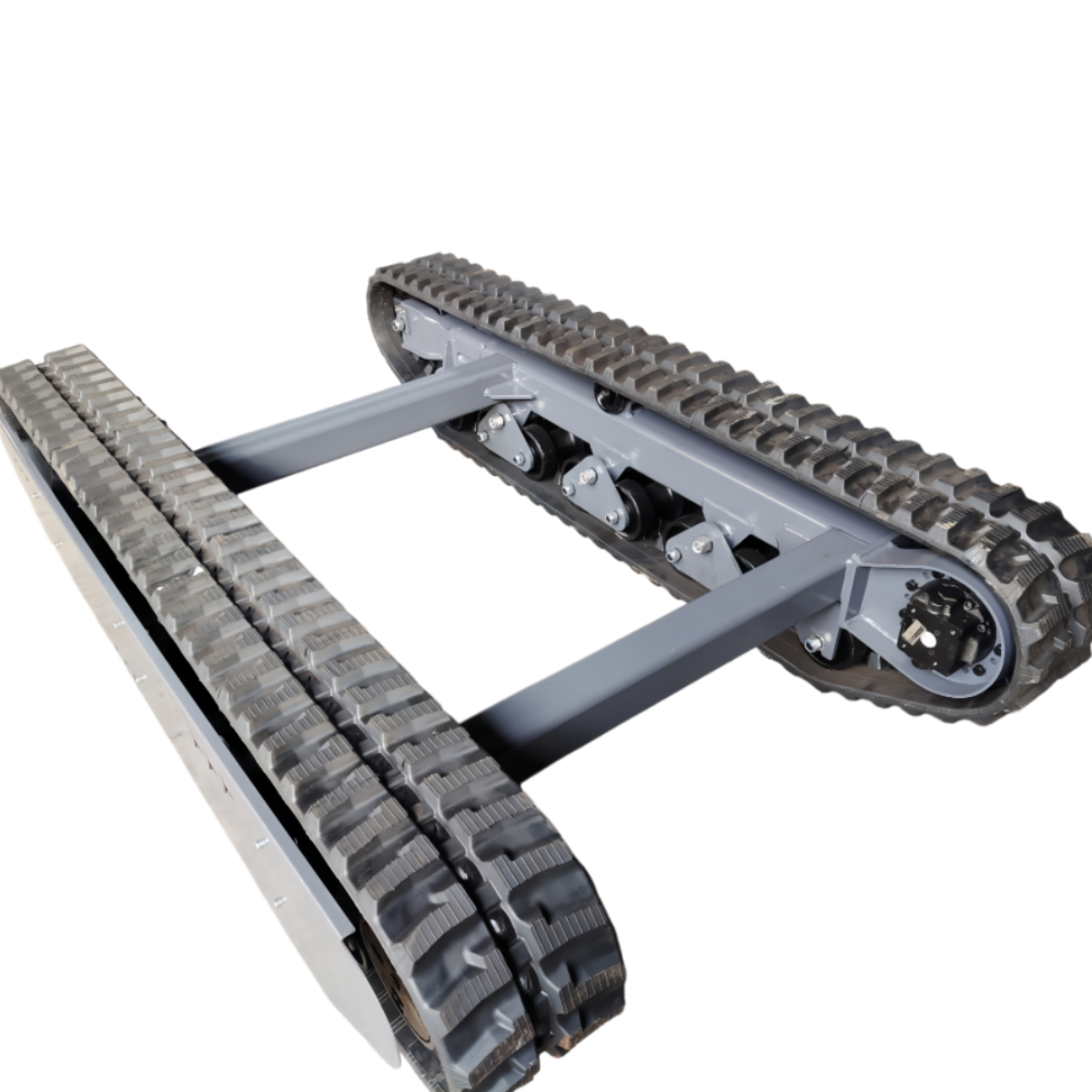

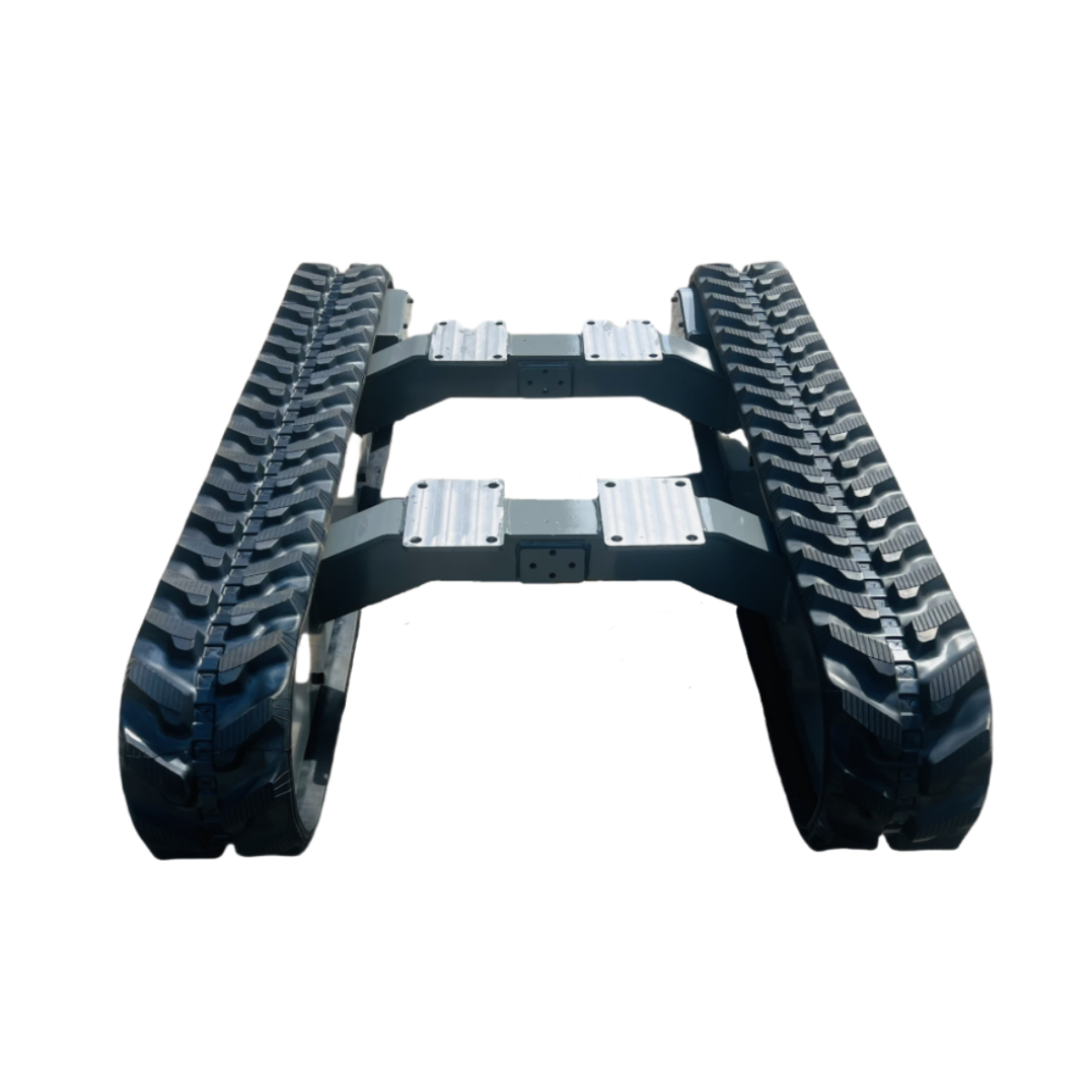

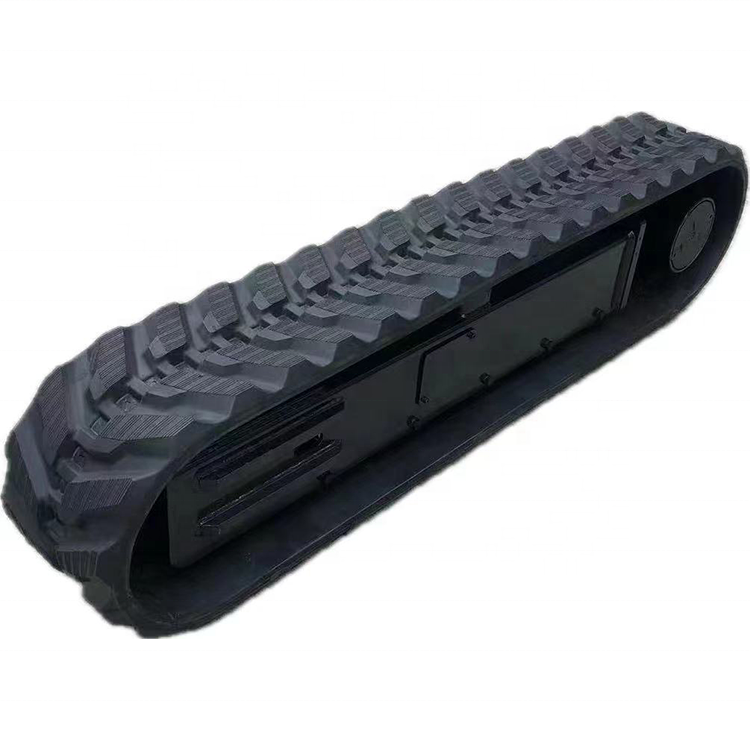

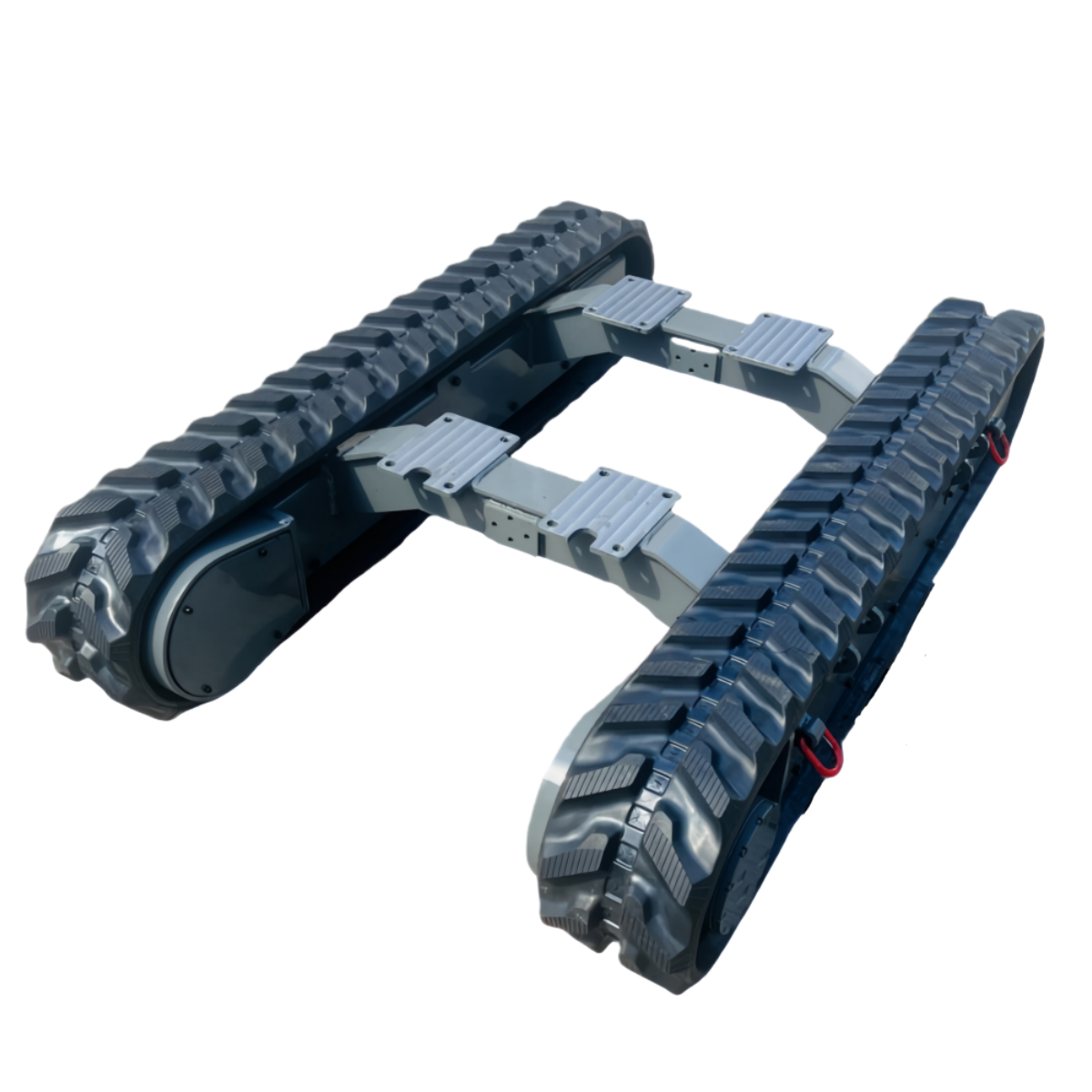

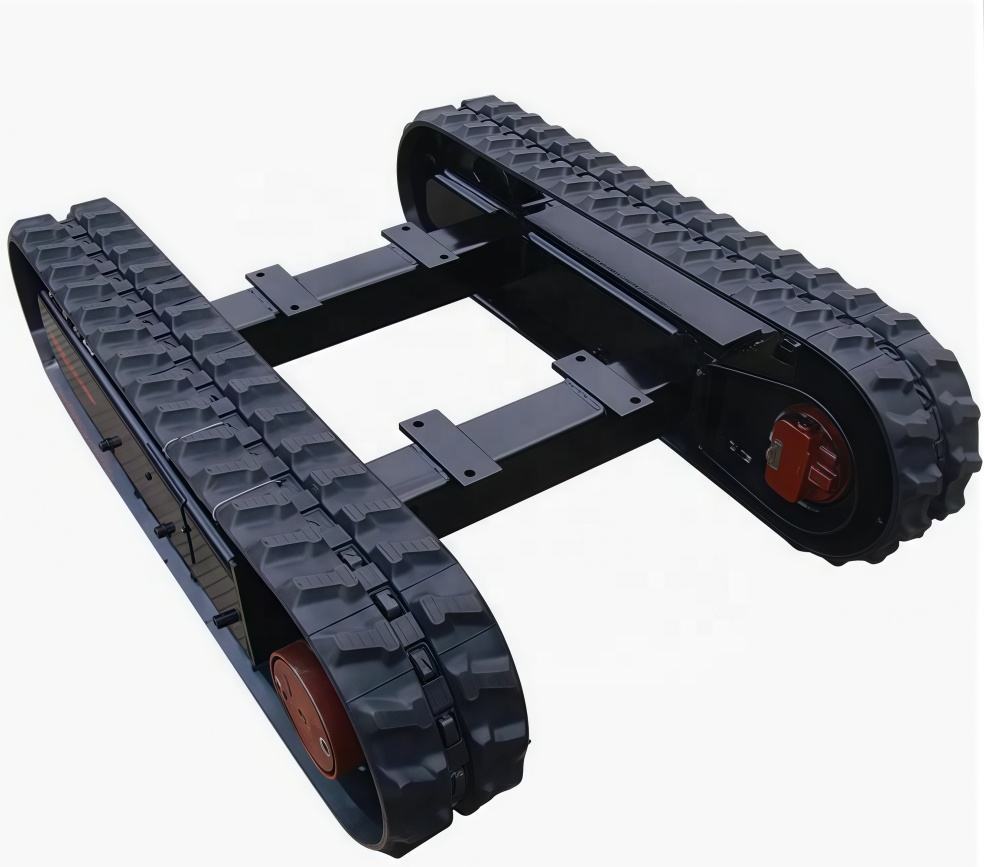

Drilling Rig Rubber Track Undercarriage | Custom Factory Supply

  • Drilling Rig Rubber Track Undercarriage | Custom Factory Supply
  • Drilling Rig Rubber Track Undercarriage | Custom Factory Supply
  • Drilling Rig Rubber Track Undercarriage | Custom Factory Supply
  • Drilling Rig Rubber Track Undercarriage | Custom Factory Supply
  • Drilling Rig Rubber Track Undercarriage | Custom Factory Supply
  • Drilling Rig Rubber Track Undercarriage | Custom Factory Supply
  • Drilling Rig Rubber Track Undercarriage | Custom Factory Supply
Place of Origin CHINA
Brand Name cathyhsu@foxmail.com
Certification ISO9001
Model Number RT series rubber crawler undercarriage
Minimum Order Quantity 1 set
Price contact me for discussion
Packaging Details pallet
Delivery Time 25-40 days
Payment Terms L/C, T/T
Supply Ability 500 units per month
Product Details
Leave a Message
Product Description

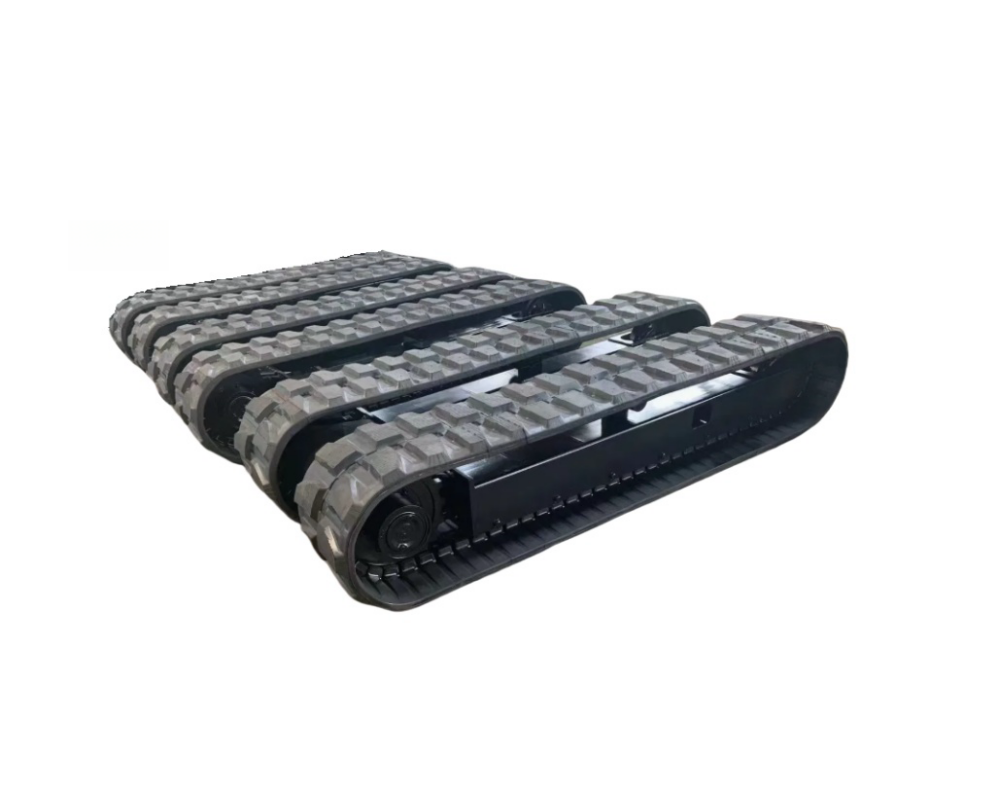

Drilling Rig Rubber Track Undercarriage | Custom Factory Supply



We are a professional manufacturer specialized in rubber track undercarriage, steel track undercarriage and complete undercarriage assembly. We provide custom rubber track system, rubber track frame and rubber crawler undercarriage for all kinds of construction machinery.

Our rubber crawler chassis and rubber crawler track undercarriage are widely used for drilling rigs, excavators, crushers, cranes, aerial work platforms and other equipment. We can design and produce custom track systems according to your mobility requirements. Our track undercarriage features strong stability, large load capacity and excellent performance in harsh working conditions.


Key Specifications of Our Rubber Track Undercarriage

  • Load capacity: from 500kgs up to 50,000kgs
  • Travel speed: 0‑10km/hr
  • Travel drive: single speed or dual‑speed final drive, equipped with Rexroth GFT gearbox
  • Custom built: available in custom size, structure and configuration
  • Delivery time: 3‑20 days


Applications


Our drilling rig rubber track undercarriage and crawler undercarriage are specially designed according to customer specifications. With professional design and manufacturing experience, we provide flexible solutions, fast response and stable performance.

They are widely applied to drilling rigs, excavators, crushers, lifting cranes, aerial platforms and other engineering machinery, with high efficiency and strong adaptability to severe working environments.


Custom Solutions


We have a professional engineering team dedicated to designing and manufacturing rubber track undercarriage, rubber crawler chassis and complete undercarriage systems. We support customized design, dimension and structure to meet different customer demands.

From prototype to mass production, we provide reliable one‑stop solutions for your crawler undercarriage needs.


Quality & Price Advantage


We provide high‑quality rubber track system and undercarriage assembly with competitive factory price, stable performance and perfect after‑sales service.

If you have any inquiries about rubber track undercarriage, rubber crawler track undercarriage or custom drilling rig undercarriage, please feel free to contact us. Our sales team will provide you with professional solutions and best service.

Detail Specification

For the following dimension and specification, it is just for your reference, we can also design andmanufacture the RUBBER TRACK UNDERCARRIAGE based on your requirements.

RT-RUBBER TRACK UNDERCARRIAG


MODEL Dinamic
capacity		 Static
capacity		 Weight
kg.		 Press.Bar oil flow
L/min		 Torque
Nm to
engine		 Grad. Speed
km/h
RT-1500 1200 1500 330 270 17 2000 65% 1.7
RT-2500 2500 3000 380 220 35 4723 65% 2/3.2
RT-3500 3500 4000 650 220 35 4723 65% 2/3.5
RT-5000 5000 6000 900 220 55 8330 65% 2/3.7
RT-6000 6000 7000 1280 220 55 8330 65% 2/3.7
RT-8000 8000 9500 1550 300 82 11700 65% 2.8/4.7

Drilling Rig Rubber Track Undercarriage | Custom Factory Supply 0



MODEL A
Length		 B
Center Distance		 C
Height		 D
Total Width		 E
Width oftrack shoe		 F
Height of Cross beam		 No. of
roller
RT-1500 1420 1066 350 980 230 165 3+3
RT-2500 1850 1370 480 1220 250 245 4+4
RT-3500 1980 1511 500 1520 300 250 5+5
RT-5000 2500 1950 550 1800 350 265 6+6
RT-6000 2905 2355 550 1800 400 265 7+7
RT-8000 2950 2450 600 1800 400 310



Drilling Rig Rubber Track Undercarriage | Custom Factory Supply 1

Drilling Rig Rubber Track Undercarriage | Custom Factory Supply 2





Drilling Rig Rubber Track Undercarriage | Custom Factory Supply 3Drilling Rig Rubber Track Undercarriage | Custom Factory Supply 4

FAQ

1. Are you the manufacturer or trader?

We are the manufacturer with more than 20 years experience engaged in designing and manufacturing of undercarriage.

2. How long is the delivery?

Usually it is 20 days for the production.

3. What's the warranty of your product?

We can offer you 12 months quality guarantee period after receipt of product.

4. Can you custom make the product?

Yes, all dimensions and specifications can be designed and made based on your requirements.

5. How to order?

To make sure the offered undercarriage is suitable for your application, please offer the following details:

1. Rubber or steel track undercarriage:

2. What is the payload of undercarriage:

Note: it is the weight of machine excluding the weight of undercarriage.

3. length of track undercarriage (mm):

4. width of each side of track undercarriage (mm):

5. height of track undercarriage (mm):

6. total width of track undercarriage (mm):
7. working flow rate per each side of undercarriage (L/min):
8. working pressure (MPa):

9. travelling speed (km/hr):

10. climbing capacity:
