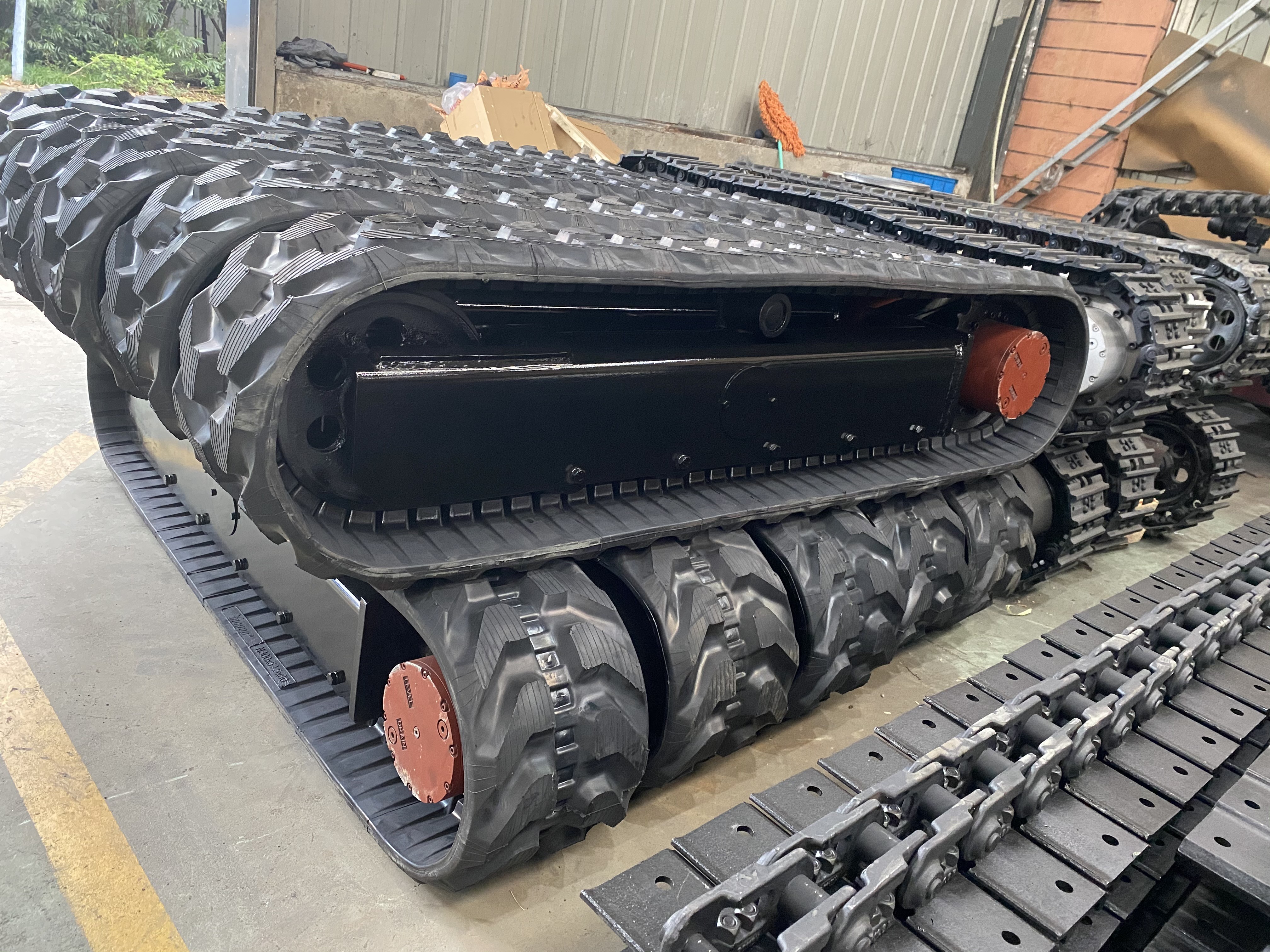

high quality rubber track undercarriage (rubber track system) 1-30 ton

Place of Origin Ningbo
Brand Name kemercn@hotmail.com
Certification ISO9001
Model Number KRT series
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details pallet
Delivery Time 3-20 days
Payment Terms T/T or L/C
Supply Ability on request
Product Details
Type Rubber Track Undercarriage Load Capacity 500-60,000kgs
Travelling Speed 0-10km/hr Dimension Custom Built
Contact Cathy Email Kemercn@hotmail.com
High Light

rubber track undercarriage

,

rubber track system

,

rubber track frame

Leave a Message
Product Description

Rubber Track undercarriage manufacturer

rubber track undercarriage, rubber track system, rubber track frame, rubber track chassis, rubber track undercarriage manufacturer, china undercarriage manufacturer


Rubber track undercarriage, rubber track system, rubber track frame, rubber crawler undercarriage, rubber crawler chasis, rubbercrawler track undercarriage, drilling rig rubber track undercarriage, undercarriage assembly

We are an experienced company specialized in manufacturing steel track undercarriage and rubber track undercarriage. we make custom track systems for your mobility needs, and our track undercarriage can carry up to 50ton,and supporting dual-speed final drive and travel 0-7km/h at grades up to 60%.

Specification of track undercarriage:


1.Load capacity: 500kgs-50,000kgs
2.walking speed: 0-10km/hr
3.travel drive: dual speed final drive or single speed, Rexroth GFT gearbox
6.delivery time: 3-20 days
7.Custom built: we can design and manufacture track undercarriage according to your specificdimension requirements.



Application


Special design catered to customer specifications. With years of experience we can offer the track designflexibility, rapid response and solutions that are always highly effective.
For application on drilling rigs, excavators, crushers, cranes, aerial platform, etc. with high efficiency andadaption of vile working condition.
Customize Solution
We have many professional engineers devoting to design the track undercarriages to meet differentcustomers' requirements. With our years of experience, we can take your concept from prototype toproduction. We are committed to our goal of exceeding your expectations and requirements for quality,reliability, and on-time delivery.
Competitive Price

We can provide our track undercarriage with most competitive price, great quality and best service.

If you have any question or need any help, please feel free to contact with us. Our service team is ready toprovide best service for you.



Detail Specification


For the following dimension and specification, it is just for your reference, we can also design andmanufacture the RUBBER TRACK UNDERCARRIAGE based on your requirements.

RT-RUBBER TRACK UNDERCARRIAGE

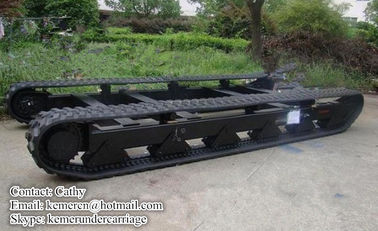

high quality rubber track undercarriage (rubber track system) 1-30 ton 1
MODEL Dinamic
capacity
Static
capacity
Weight
kg.
Press.Bar oil flow
L/min
Torque
Nm to
engine
Grad. Speed
km/h
RT-1500 1200 1500 330 270 17 2000 65% 1.7
RT-2500 2500 3000 380 220 35 4723 65% 2/3.2
RT-3500 3500 4000 650 220 35 4723 65% 2/3.5
RT-5000 5000 6000 900 220 55 8330 65% 2/3.7
RT-6000 6000 7000 1280 220 55 8330 65% 2/3.7
RT-8000 8000 9500 1550 300 82 11700 65% 2.8/4.7
MODEL A
Length
B
Center Distance
C
Height
D
Total Width
E
Width oftrack shoe
F
Height of Cross beam
No. of
roller
RT-1500 1420 1066 350 980 230 165 3+3
RT-2500 1850 1370 480 1220 250 245 4+4
RT-3500 1980 1511 500 1520 300 250 5+5
RT-5000 2500 1950 550 1800 350 265 6+6
RT-6000 2905 2355 550 1800 400 265 7+7
RT-8000 2950 2450 600 1800 400 310



high quality rubber track undercarriage (rubber track system) 1-30 ton 2

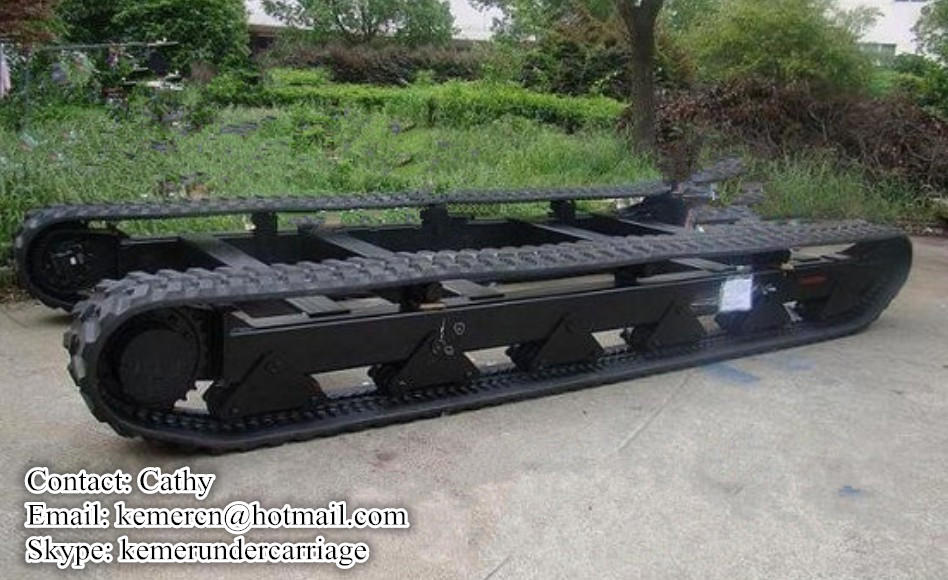

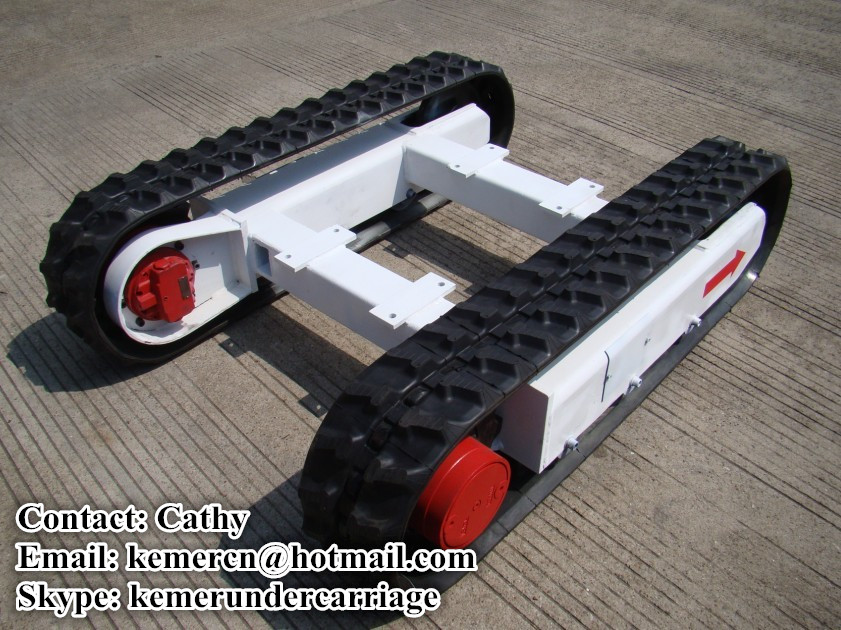

high quality rubber track undercarriage (rubber track system) 1-30 ton 3high quality rubber track undercarriage (rubber track system) 1-30 ton 4

FAQ

1. Are you the manufacturer or trader?

We are the manufacturer with more than 20 years experience engaged in designing and manufacturing of undercarriage.

2. How long is the delivery?

Usually it is 20 days for the production.

3. What's the warranty of your product?

We can offer you 12 months quality guarantee period after receipt of product.

4. Can you custom make the product?

Yes, all dimensions and specifications can be designed and made based on your requirements.

5. How to order?

To make sure the offered undercarriage is suitable for your application, please offer the following details:

1. Rubber or steel track undercarriage:

2. What is the payload of undercarriage:

Note: it is the weight of machine excluding the weight of undercarriage.

3. length of track undercarriage (mm):

4. width of each side of track undercarriage (mm):

5. height of track undercarriage (mm):

6. total width of track undercarriage (mm):
7. working flow rate per each side of undercarriage (L/min):
8. working pressure (MPa):

9. travelling speed (km/hr):

10. climbing capacity:
