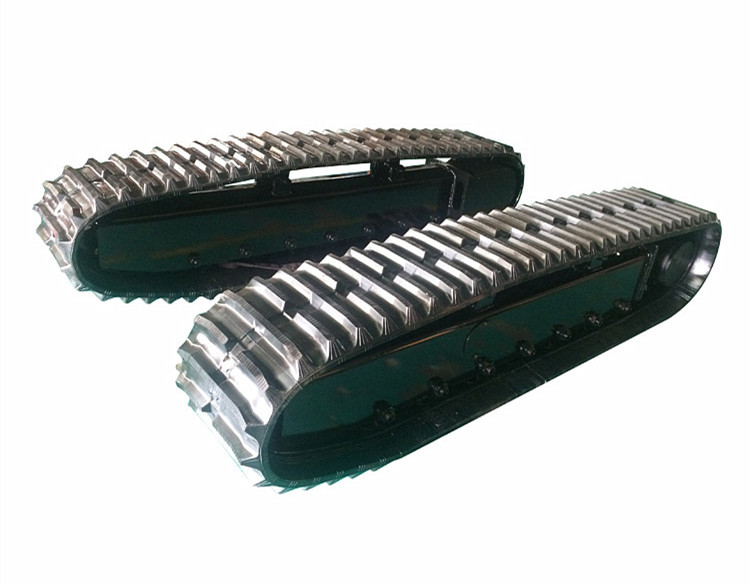

1-30 ton rubber track undercarriage with angle (KRT series)
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Rubber Track Undercarriage | Payload Capacity | 0.5-30 Ton |
---|---|---|---|
Dimension | Custom Built On Requirements | Applied For | Drilling Rig, Crusher, Crane, Aerial Platform, Etc |
Warranty | 1 Year | ||
High Light | rubber track undercarriage,rubber track system,rubber crawler undercarriage |

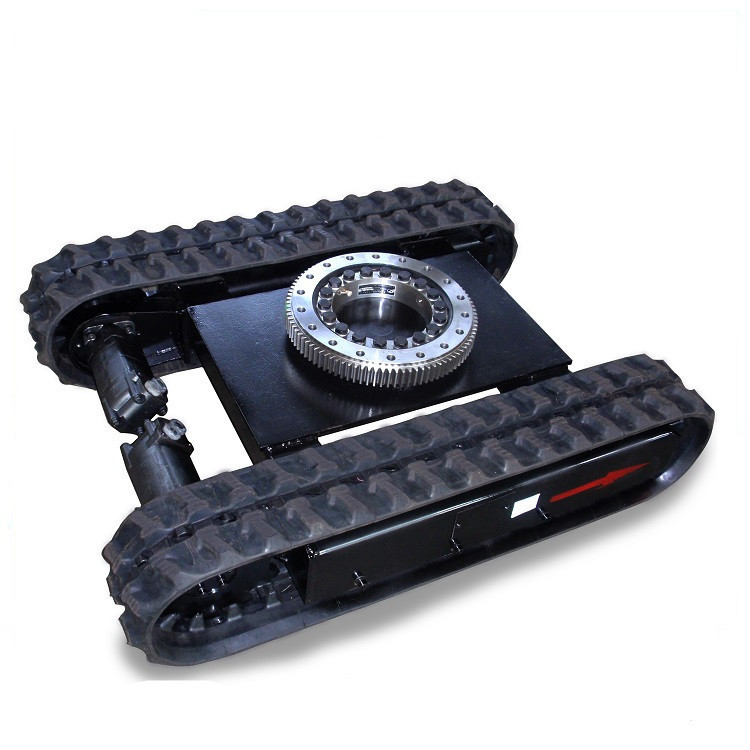

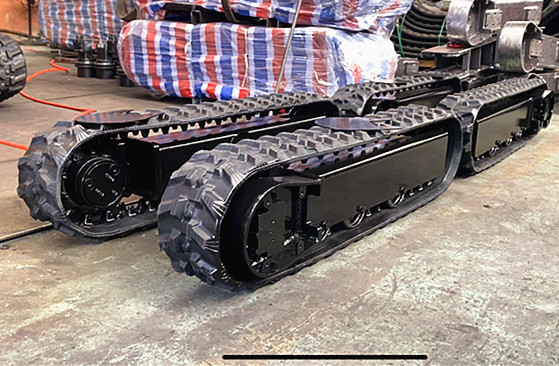

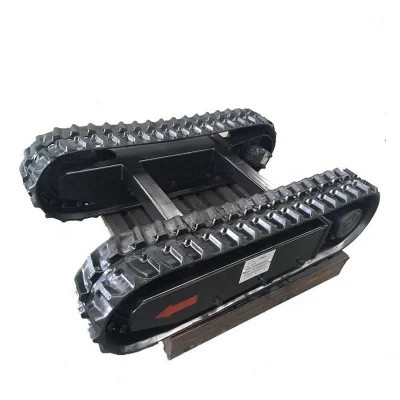

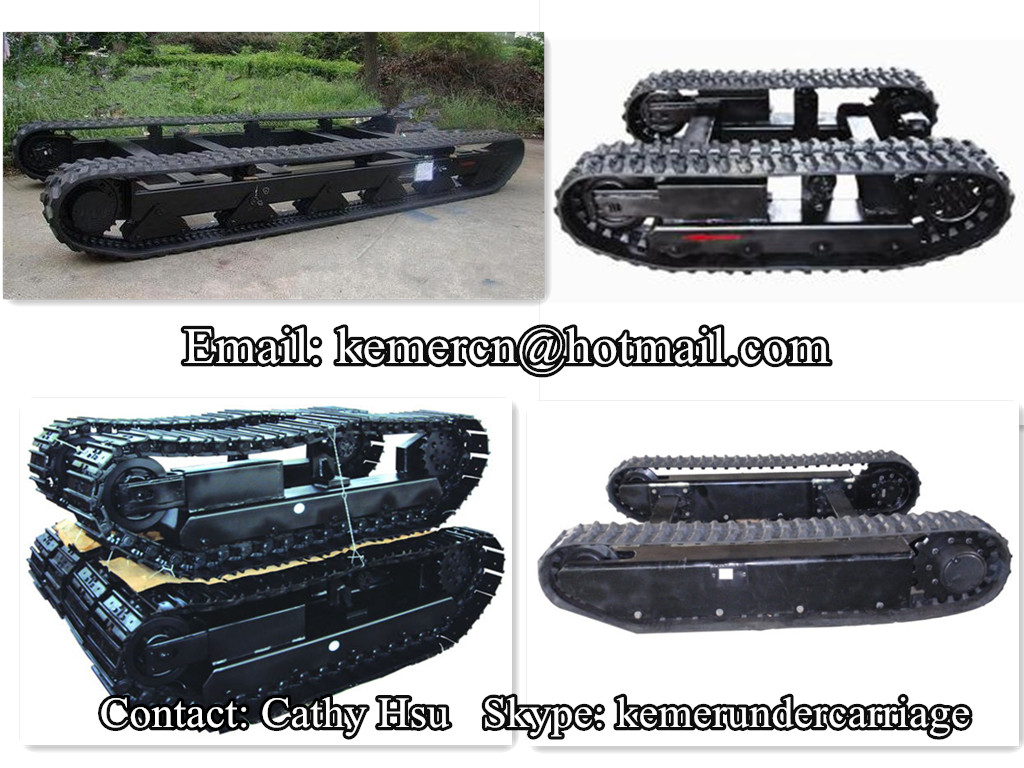

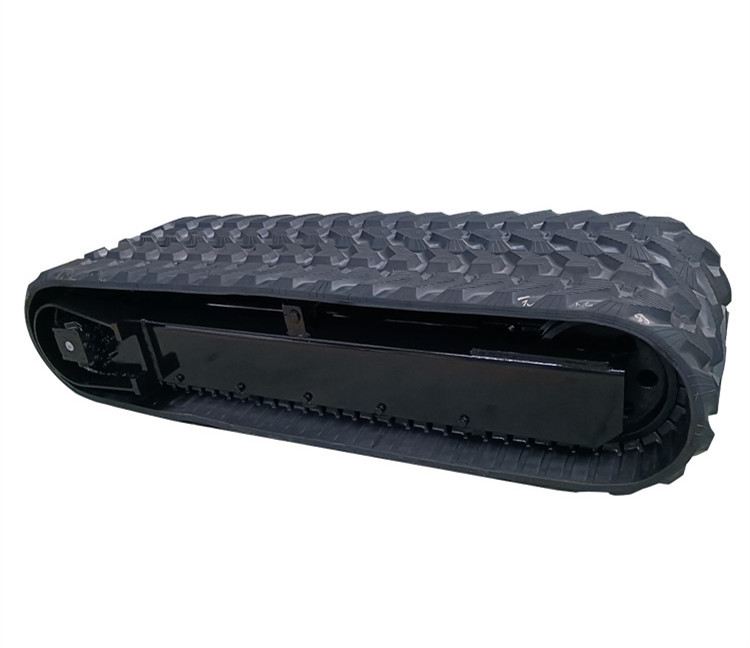

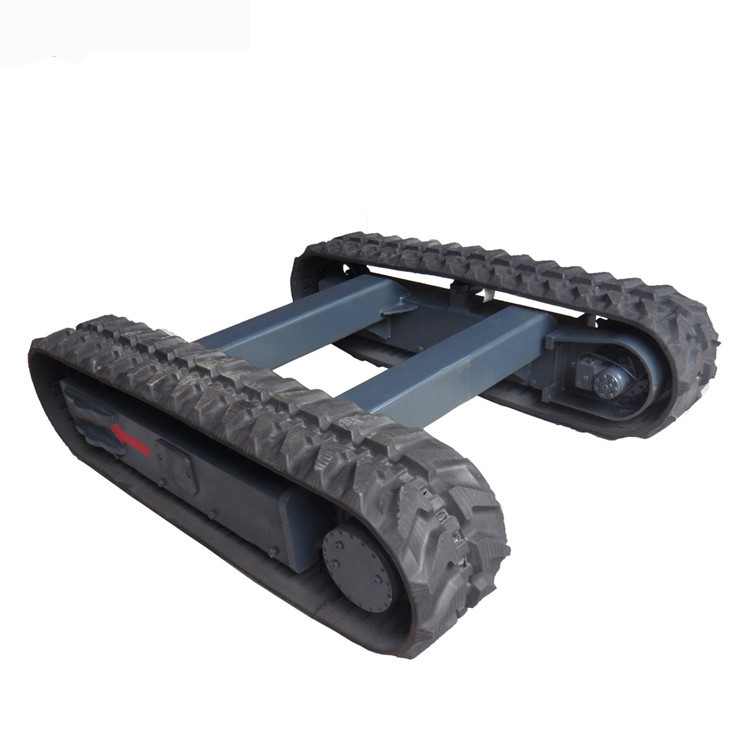

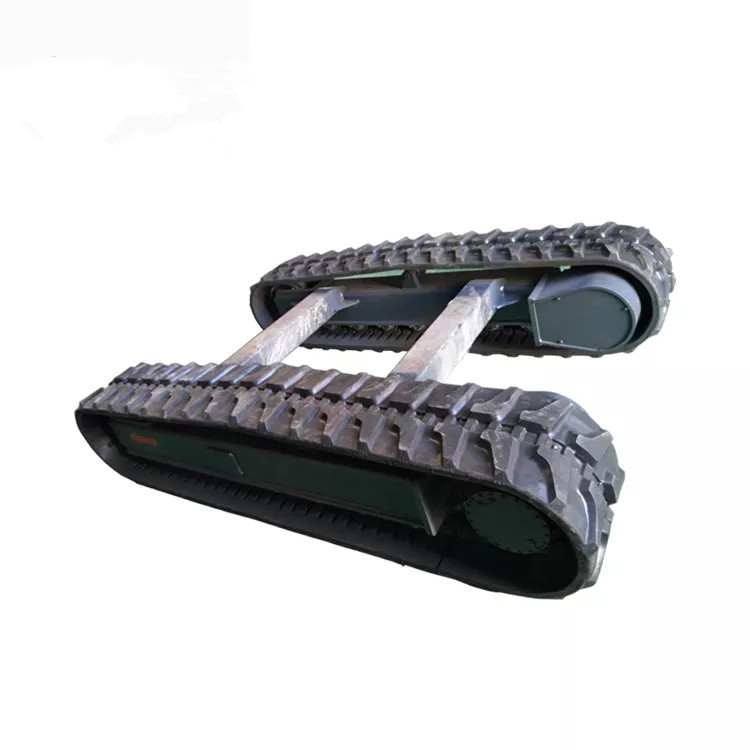

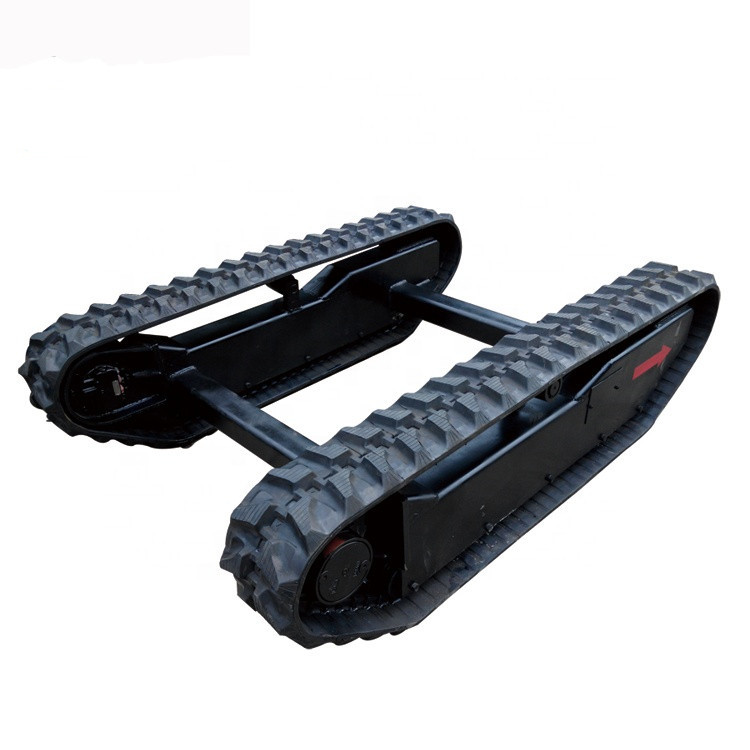

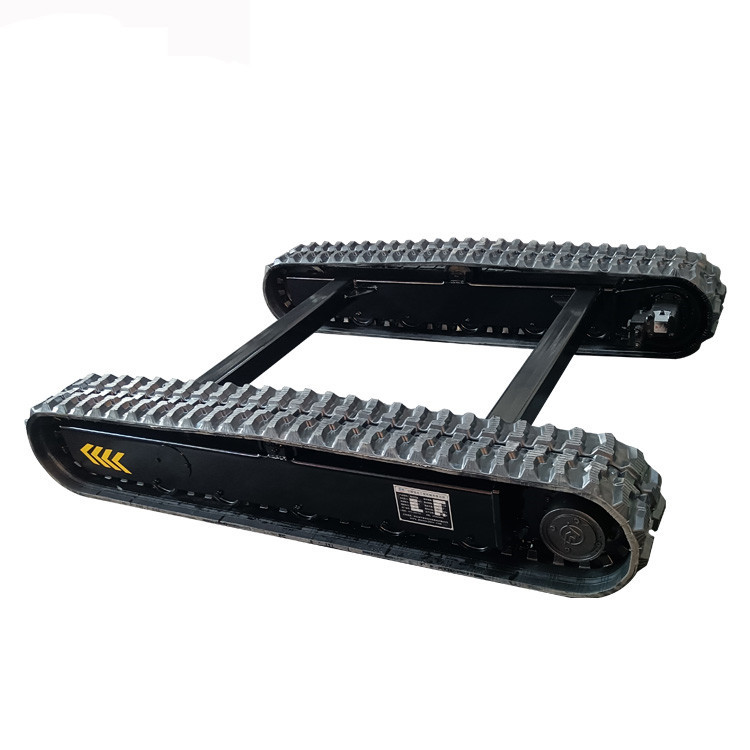

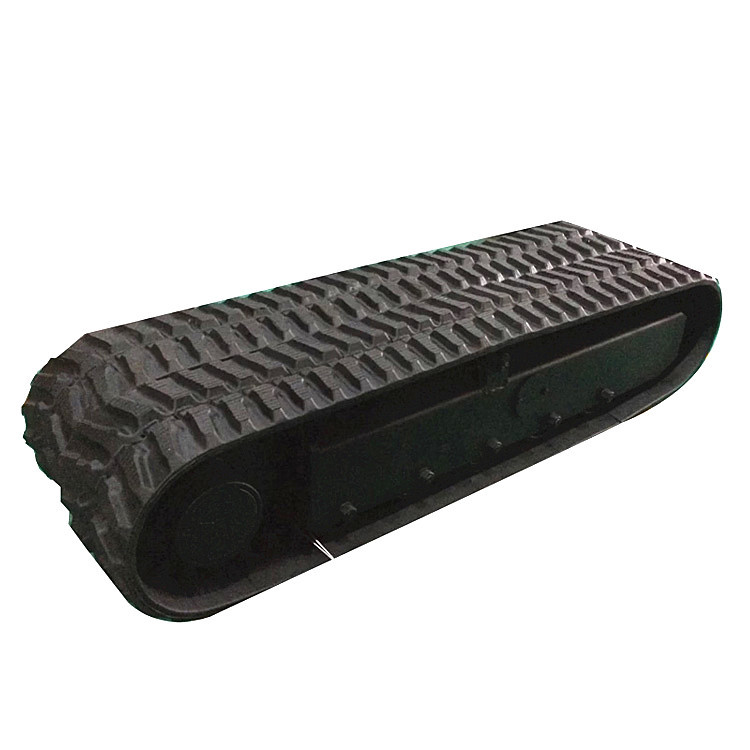

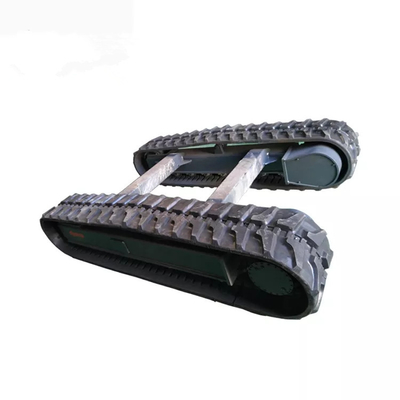

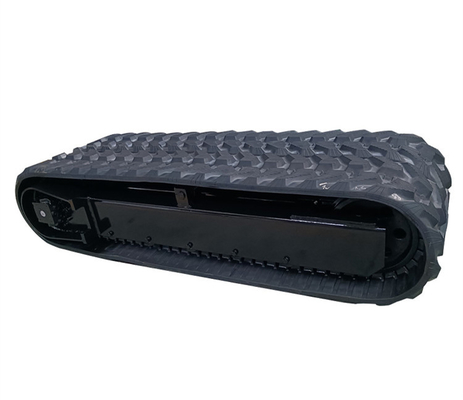

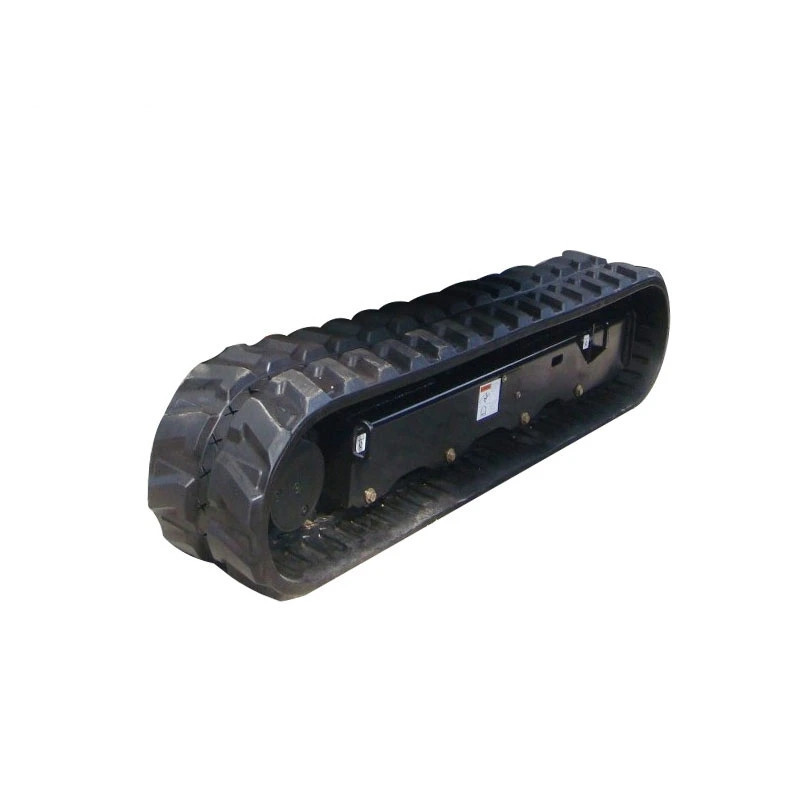

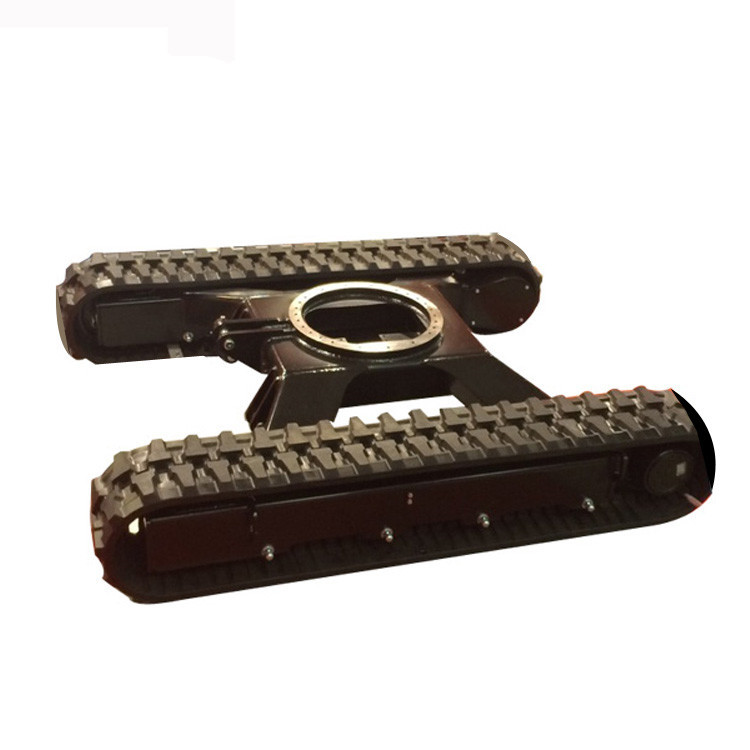

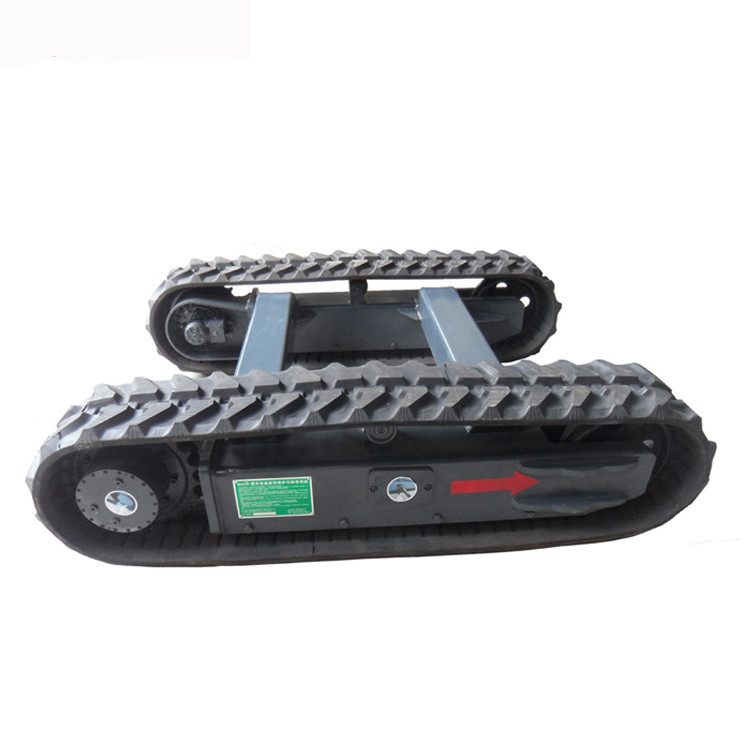

Rubber Track undercarriage manufacturer
Rubber track undercarriage, rubber track system, rubber track frame, rubber crawler undercarriage, rubber crawler chasis, rubbercrawler track undercarriage, drilling rig rubber track undercarriage, undercarriage assembly
We are an experienced company specialized in manufacturing steel track undercarriage and rubber track undercarriage. we make custom track systems for your mobility needs, and our track undercarriage can carry up to 50ton,and supporting dual-speed final drive and travel 0-7km/h at grades up to 60%.
Specification of track undercarriage:
Application
We can provide our track undercarriage with most competitive price, great quality and best service.
If you have any question or need any help, please feel free to contact with us. Our service team is ready toprovide best service for you.
Detail Specification
For the following dimension and specification, it is just for your reference, we can also design andmanufacture the RUBBER TRACK UNDERCARRIAGE based on your requirements.
MODEL
|
Dinamic
capacity |
Static
capacity |
Weight
kg. |
Press.Bar
|
oil flow
L/min |
Torque
Nm to engine |
Grad.
|
Speed
km/h |
RT-1500
|
1200
|
1500
|
330
|
270
|
17
|
2000
|
65%
|
1.7
|
RT-2500
|
2500
|
3000
|
380
|
220
|
35
|
4723
|
65%
|
2/3.2
|
RT-3500
|
3500
|
4000
|
650
|
220
|
35
|
4723
|
65%
|
2/3.5
|
RT-5000
|
5000
|
6000
|
900
|
220
|
55
|
8330
|
65%
|
2/3.7
|
RT-6000
|
6000
|
7000
|
1280
|
220
|
55
|
8330
|
65%
|
2/3.7
|
RT-8000
|
8000
|
9500
|
1550
|
300
|
82
|
11700
|
65%
|
2.8/4.7
|
MODEL
|
A
Length |
B
Center Distance |
C
Height |
D
Total Width |
E
Width oftrack shoe |
F
Height of Cross beam |
No. of
roller |
RT-1500
|
1420
|
1066
|
350
|
980
|
230
|
165
|
3+3
|
RT-2500
|
1850
|
1370
|
480
|
1220
|
250
|
245
|
4+4
|
RT-3500
|
1980
|
1511
|
500
|
1520
|
300
|
250
|
5+5
|
RT-5000
|
2500
|
1950
|
550
|
1800
|
350
|
265
|
6+6
|
RT-6000
|
2905
|
2355
|
550
|
1800
|
400
|
265
|
7+7
|
RT-8000
|
2950
|
2450
|
600
|
1800
|
400
|
310
|
FAQ
1. Are you the manufacturer or trader?
We are the manufacturer with more than 20 years experience engaged in designing and manufacturing of undercarriage.
2. How long is the delivery?
Usually it is 20 days for the production.
3. What's the warranty of your product?
We can offer you 12 months quality guarantee period after receipt of product.
4. Can you custom make the product?
Yes, all dimensions and specifications can be designed and made based on your requirements.
5. How to order?
To make sure the offered undercarriage is suitable for your application, please offer the following details:
1. Rubber or steel track undercarriage:
2. What is the payload of undercarriage:
Note: it is the weight of machine excluding the weight of undercarriage.
3. length of track undercarriage (mm):
4. width of each side of track undercarriage (mm):
5. height of track undercarriage (mm):
6. total width of track undercarriage (mm):
7. working flow rate per each side of undercarriage (L/min):
8. working pressure (MPa):
9. travelling speed (km/hr):
10. climbing capacity:
