high quality rubber crawler undercarriage rubber track chassis rubber track undercarriage

Place of Origin Ningbo
Brand Name cathyhsu@foxmail.com
Certification ISO9001
Model Number RT series
Minimum Order Quantity 1 unit
Price Negotiation
Packaging Details pallet
Delivery Time 3-20 days
Payment Terms T/T or L/C
Supply Ability on request
Product Details
Material Rubber Track Undercarriage Name Rubber Reawler Undercarriage Rubber Track Chassis
Load Capacity 1-100 Ton Application Drilling Rig, Crusher, Crane, Aerial Platform, Etc.
Dimensions Custom Built On Requirements
Leave a Message
Product Description

Rubber Track undercarriage manufacturer



We are an experienced company specialized in manufacturing steel track undercarriage and rubber track undercarriage. we make custom track systems for your mobility needs, and our track undercarriage can carry up to 50ton,and supporting dual-speed final drive and travel 0-7km/h at grades up to 60%.



Specification of track undercarriage:


1.Load capacity: 500kgs-50,000kgs
2.walking speed: 0-10km/hr
3.travel drive: dual speed final drive or single speed, Rexroth GFT gearbox
6.delivery time: 3-20 days
7.Custom built: we can design and manufacture track undercarriage according to your specificdimension requirements.

Application
Special design catered to customer specifications. With years of experience we can offer the track designflexibility, rapid response and solutions that are always highly effective.
For application on drilling rigs, excavators, crushers, cranes, aerial platform, etc. with high efficiency andadaption of vile working condition.
Customize Solution
We have many professional engineers devoting to design the track undercarriages to meet differentcustomers' requirements. With our years of experience, we can take your concept from prototype toproduction. We are committed to our goal of exceeding your expectations and requirements for quality,reliability, and on-time delivery.

Specification:
For the following dimension and specification, it is just for your reference, we can also design andmanufacture the RUBBER TRACK UNDERCARRIAGE based on your requirements.
RT-RUBBER TRACK UNDERCARRIAGE


MODEL
Dinamic
capacity
Static
capacity
Weight
kg.
Press.Bar



oil flow
L/min
Torque
Nm to
engine
Grad.
Speed
km/h
RT-1500
1200
1500
330
270
17
2000
65%
1.7
RT-2500
2500
3000
380
220
35
4723
65%
2/3.2
RT-3500
3500
4000
650
220
35
4723
65%
2/3.5
RT-5000
5000
6000
900
220
55
8330
65%
2/3.7
RT-6000
6000
7000
1280
220
55
8330
65%
2/3.7
RT-8000
8000
9500
1550
300
82
11700
65%
2.8/4.7



rubber track undercarriage track chassis crawler undercarriage crawler chassis

MODEL
A
Length
B
Center Distance
C
Height
D
Total Width
E
Width of track shoe
F
Height of Cross beam
No. of
roller
RT-1500
1420
1066
350
980
230
165
3+3
RT-2500
1850
1370
480
1220
250
245
4+4
RT-3500
1980
1511
500
1520
300
250
5+5
RT-5000
2500
1950
550
1800
350
265
6+6
RT-6000
2905
2355
550
1800
400
265
7+7
RT-8000
2950
2450
600
1800
400
310
7+7

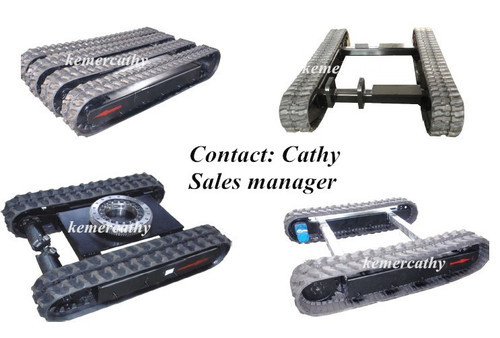

high quality rubber crawler undercarriage rubber track chassis rubber track undercarriage 1

Picture of undercarriage



high quality rubber crawler undercarriage rubber track chassis rubber track undercarriage 2high quality rubber crawler undercarriage rubber track chassis rubber track undercarriage 3

high quality rubber crawler undercarriage rubber track chassis rubber track undercarriage 4



FAQ




1. Are you the manufacturer or trader?

We are the manufacturer with more than 20 years experience engaged in designing and manufacturing of undercarriage.

2. How long is the delivery?

Usually it is 20 days for the production.

3. What's the warranty of your product?

We can offer you 12 months quality guarantee period after receipt of product.

4. Can you custom make the product?

Yes, all dimensions and specifications can be designed and made based on your requirements.

5. How to order?

To make sure the offered undercarriage is suitable for your application, please offer the following details:

1. Rubber or steel track undercarriage:

2. What is the payload of undercarriage:

Note: it is the weight of machine excluding the weight of undercarriage.

3. length of track undercarriage (mm):

4. width of each side of track undercarriage (mm):

5. height of track undercarriage (mm):

6. total width of track undercarriage (mm):
7. working flow rate per each side of undercarriage (L/min):
8. working pressure (MPa):

9. travelling speed (km/hr):

10. climbing capacity:
