manufacturer of 1 ton hydraulic winch (BG1100)

Place of Origin china
Brand Name kemercn@hotmail.com
Certification ISO9001
Model Number BG1100
Minimum Order Quantity 1 UNIT
Price Negotiation
Packaging Details case
Delivery Time 15 days
Payment Terms T/T or L/C
Supply Ability on request
Product Details
Pull Force 1 Ton Rope Speed 21m/min (can Be Adjusted)
Dimension Custom Built Contact Cathy
Skype Kemercathy Email Kemercn@hotmail.com
Cell 008613486645746
Leave a Message
Product Description
We are the China-based manufacturer of hydraulic winch (hydraulic winch, hoisting winch, wireline winch, cargo winch, drilling rig winch, crane winch, marine winch, dredger winch, hydraulic winches, compact winch, free fall hydraulic winch) with more than 10 years experience in designing and manufacturing different types of hydraulic winches fro widely application.



We are the group company in China, the registered capacity is 6,000,000 and the factory area is about 6000sqm. Staffed with 150 employees, including 10 engineers.



The products are widely used in engineering machinery, ship-, petroleum-, mining industry, metallurgical machinery, light industry, agriculture, enviroment.



Now we are stepping into the international market, our products are being exported to Germany, USA, CANADA, ITALY, NETHERLAND, KOREAM, SINGAPORE, TURKEY, AUSTRALIA, INDIA, INDONESIA and others.



Specification of hydraulic winch:
1. Pull force of 1st layer: 1-60 ton
2. Rope speed: 0-200m/min
3. Option for the winch with groove or without groove

Product introduction:


It is the type of winch widely applied for difference kinds of crane. So we called it crane used hydraulic winch. BG series hoisting winches are widely used in overhead working truck, lorry mounted crane, drill machine, mirror crane, ship equipments and so on. It is the best choice for those situations that requires the narrow space and light weight.



Special Features:


1. Floating type planetary gearbox, smooth operation and reasonable structure.
2. Normally closed friction type brake, high braking torque, safe and reliable operating.
3. Small volume, compact structure and high transmission efficiency.
4. Long life Danfoss hydraulic orbit motor
5. Mounting frame is available on request.
6. Balance valve, shuttle valve, limit switch and other accessories are also available on request.



Technical parameters:




Model W.L.L. 1st layer W.L.L. top layer Rope Speed Rope diam. Capacity of Rope Working Pressure Max Supply Oil Flow
  kgf kgf m/min mm m Mpa L/min
BG500 500 380 63 6 67 14 40
BG800 800 680 54 8 53 14 50
BG1100 1100 870 41 8 53 14 50
BG1300 1300 1000 45 9 48 14 55
BG1500 1500 1200 42 10 60 21 55
BG2000 2000 1600 35 10 60 21 55
BG2500 2500 2000 52 12 52 21 100
BG2600 2600 2000 54 12 76 21 100
BG3200 3200 2500 44 14 66 21 100
BG3600 3600 2800 40 14 66 21 100
BG4500 4500 3500 36 15 89 21 110
BG5700 5700 4500 26 16 102 21 120


For more products about BG Series Hydraulic Winch, please download our catalogue or contact us! Meanwhile, we can design and manufacture it on request.

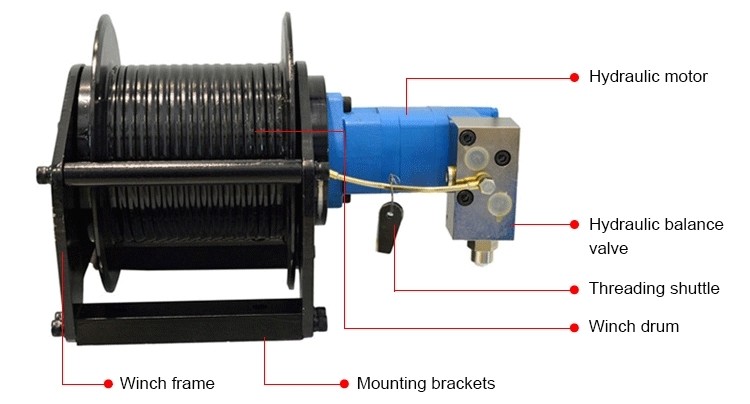

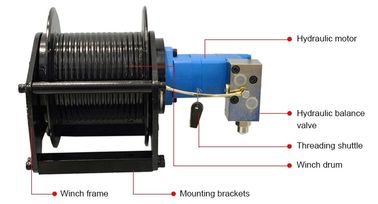

Detail of crane used hydraulic winch


manufacturer of 1 ton hydraulic winch (BG1100) 0



Widely application of crane used hydraulic winch


manufacturer of 1 ton hydraulic winch (BG1100) 1





Factory overview





manufacturer of 1 ton hydraulic winch (BG1100) 2
manufacturer of 1 ton hydraulic winch (BG1100) 3

Packing & Delivery
manufacturer of 1 ton hydraulic winch (BG1100) 4manufacturer of 1 ton hydraulic winch (BG1100) 5
manufacturer of 1 ton hydraulic winch (BG1100) 6

FAQ:

Q: Are you trading company or manufacturer ?

A: We are factory of hydraulic winch.

Q: How long is your delivery time?

A: Generally it is 5-25 days if the goods is the standard dimension.

Q: Can you custom make the product?

A: Yes, all dimensions and specifications of hydraulic winch can be designed and made based on your requirements.

Q: How to order?

A: To make sure the offered hydraulic winch is suitable for your application, please offer the following details:
1. pull force of inner layer (kg):
2. rope speed of inner layer (m/min):
3. rope diameter (mm):
4. length of rope (m):
5. drum diameter (mm):
6. with or without groove:
7. with or without brake:
If you have another question about the hydraulic winch, pls feel free to contact us.
