high quality 0.5 ton/5KN compact hydraulic winch (TYPE: BG500)

Place of Origin China
Brand Name kemercn@hotmail.com
Certification ISO9001
Model Number BG500
Minimum Order Quantity 1 unit
Price USD 700
Packaging Details CASE
Delivery Time 20 DAYS
Payment Terms Western Union
Supply Ability 1000UNIT PER MONTH
Product Details
Pull Force 500kgs/5KN/0.5TON Rope Speed 33m/min
Rope Capacity 6mm@60m Driving Motor OMR80
Static Braking Torque 420Nm Name Hoisting Hydraulic Winch
Email Kemercn@hotmail.com
Leave a Message
Product Description

China high quality hydraulic winch manufacturer


We are the China-based manufacturer of hydraulic winch (hydraulic winch, hoisting winch, wireline winch, cargo winch, drilling rig winch, crane winch, marine winch, dredger winch, hydraulic winches, compact winch, free fall hydraulic winch) with more than 10 years experience in designing and manufacturing different types of hydraulic winches fro widely application.
We are the group company in China, the registered capacity is 6,000,000 and the factory area is about 6000sqm. Staffed with 150 employees, including 10 engineers.
The products are widely used in engineering machinery, ship-, petroleum-, mining industry, metallurgical machinery, light industry, agriculture, enviroment.

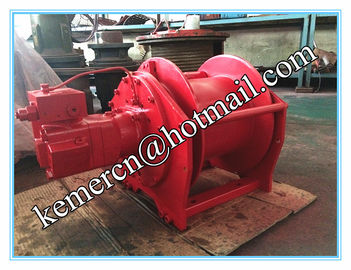

For the winch in the picture, it is our BG series hydraulic winch, whichare widely used in overhead working truck, lorry mounted crane, drill machine, mirror crane, ship equipments and so on. It is the best choice for those situations that requires the narrow space and light weight.

high quality 0.5 ton/5KN compact hydraulic winch (TYPE: BG500) 0
Special Features:
Floating type planetary gearbox, smooth operation and reasonable structure.
♦ Normally closed friction type brake, high braking torque, safe and reliable operating.
♦ Small volume, compact structure and high transmission efficiency.
♦ Long life Danfoss hydraulic orbit motor
♦ Mounting frame is available on request.
♦ Balance valve, shuttle valve, limit switch and other accessories are also available on request.


high quality 0.5 ton/5KN compact hydraulic winch (TYPE: BG500) 1


Layer Level 1st layer 2nd layer 3rd layer 4th layer
Pull force kgf 500 466 436 410
Max speed (15L/min) m/min 33 38 41 44
Rope capacity m 12.8 27 42 60
Motor displacement ml/r OMR-80
Hoisting pressure MPa 7
Max flow L/min 38
Max torqure of motor Nm 90
Max power of gearbox KW 12
Rope diameter mm 6
Ratio i 6.23:1
Static braking torque Nm 420

Custom design service

The dimension and specification of hydrauic winch can be desgined based on customer requirements.

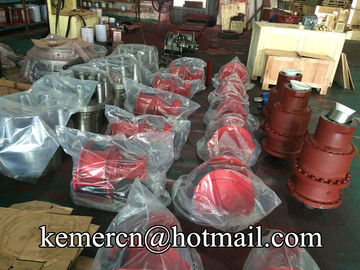

Factory overview

high quality 0.5 ton/5KN compact hydraulic winch (TYPE: BG500) 2
high quality 0.5 ton/5KN compact hydraulic winch (TYPE: BG500) 3

Packing & Delivery
high quality 0.5 ton/5KN compact hydraulic winch (TYPE: BG500) 4high quality 0.5 ton/5KN compact hydraulic winch (TYPE: BG500) 5
high quality 0.5 ton/5KN compact hydraulic winch (TYPE: BG500) 6


Q: Are you trading company or manufacturer ?

A: We are factory of hydraulic winch.

Q: How long is your delivery time?

A: Generally it is 5-25 days if the goods is the standard dimension.

Q: Can you custom make the product?

A: Yes, all dimensions and specifications of hydraulic winch can be designed and made based on your requirements.

Q: How to order?

A: To make sure the offered hydraulic winch is suitable for your application, please offer the following details:
1. pull force of inner layer (kg):
2. rope speed of inner layer (m/min):
3. rope diameter (mm):
4. length of rope (m):
5. drum diameter (mm):
6. with or without groove:
7. with or without brake:
If you have another question about the hydraulic winch, pls feel free to contact us.
