high quality 2 ton/20KN compact hydraulic winch (TYPE: BG2000)
| Place of Origin | China |
|---|---|
| Brand Name | cathyhsu@foxmail.com |
| Certification | ISO9001 |
| Model Number | BG2000 |
| Minimum Order Quantity | 1 unit |
| Price | USD 700 |
| Packaging Details | CASE |
| Delivery Time | 20 DAYS |
| Payment Terms | Western Union |
| Supply Ability | 1000UNITS PER MONTH |
Product Details
| Pull Force | 2000kg/20KN/2TON | Driving Motor | OMR250 |
|---|---|---|---|
| Static Braking Torque | 820Nm | Name | Hoisting Hydraulic Winch |
| Cathyhsu@foxmail.com |
Product Description
China high quality hydraulic winch manufacturer
We are the China-based manufacturer of hydraulic winch (hydraulic winch, hoisting winch, wireline winch, cargo winch, drilling rig winch, crane winch, marine winch, dredger winch, hydraulic winches, compact winch, free fall hydraulic winch) with more than 10 years experience in designing and manufacturing different types of hydraulic winches fro widely application.
We are the group company in China, the registered capacity is 6,000,000 and the factory area is about 6000sqm. Staffed with 150 employees, including 10 engineers.
The products are widely used in engineering machinery, ship-, petroleum-, mining industry, metallurgical machinery, light industry, agriculture, enviroment.
For the winch in the picture, it is our BG series hydraulic winch, whichare widely used in overhead working truck, lorry mounted crane, drill machine, mirror crane, ship equipments and so on. It is the best choice for those situations that requires the narrow space and light weight.
Special Features:
♦Floating type planetary gearbox, smooth operation and reasonable structure.
♦ Normally closed friction type brake, high braking torque, safe and reliable operating.
♦ Small volume, compact structure and high transmission efficiency.
♦ Long life Danfoss hydraulic orbit motor
♦ Mounting frame is available on request.
♦ Balance valve, shuttle valve, limit switch and other accessories are also available on request.
Drawing:
Specification:
| Layer | Level | 1st layer | 2nd layer | 3rd layer | 4th layer |
|---|---|---|---|---|---|
| Pull force | kgf | 2000 | 1830 | 1680 | 1556 |
| Max speed (120L/min) | m/min | 32 | 35 | 38 | 10.1 |
| Rope capacity | m | 14 | 28 | 42 | 60 |
| Motor displacement | ml/r | OMR-200 | |||
| Hoisting pressure | MPa | 17 | |||
| Max flow | L/min | 80 | |||
| Max torqure of motor | Nm | 660 | |||
| Max power of gearbox | KW | 12 | |||
| Rope diameter | mm | 10 | |||
| Ratio | i | 5.8:1 | |||
| Static braking torque | Nm | 820 | |||
Custom design service
The dimension and specification of hydrauic winch can be desgined based on customer requirements.
Factory overview

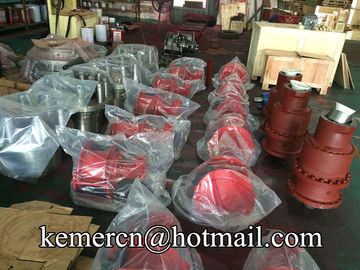

Packing & Delivery
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory of hydraulic winch.
Q: How long is your delivery time?
A: Generally it is 5-25 days if the goods is the standard dimension.
Q: Can you custom make the product?
A: Yes, all dimensions and specifications of hydraulic winch can be designed and made based on your requirements.
Q: How to order?
A: To make sure the offered hydraulic winch is suitable for your application, please offer the following details:
1. pull force of inner layer (kg):
2. rope speed of inner layer (m/min):
3. rope diameter (mm):
4. length of rope (m):
5. drum diameter (mm):
6. with or without groove:
7. with or without brake:
If you have another question about the hydraulic winch, pls feel free to contact us.
