1-60 ton hydraulic winch for construction machinery
| Place of Origin | china |
|---|---|
| Brand Name | kemercn@hotmail.com |
| Certification | ISO9001 |
| Model Number | GW7000 series |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | case |
| Delivery Time | 3-20 days |
| Payment Terms | T/T or L/C |
| Supply Ability | on request |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pull Force | 500-60,000kgs | Rope Speed | 0-200m/min |
|---|---|---|---|
| Dimension | Custom Built | Contact | Cathy |
| Skype | Kemercathy | Kemercn@hotmail.com | |
| Cell | 008613486645746 | ||
| High Light | hydraulic winch,crane hydraulic winch,drilling rig hydraulic winch manufacturer |
||
Product Description
hydraulic winch manufacturer, hydraulic winches, hoisting winch, marine winch, drilling rig winch, crane winch, power winch, hydraulic operated winch, dredger winch
Company introduction
We are the China-based manufacturer of hydraulic winch (hydraulic winch, hoisting winch, wireline winch, cargo winch, drilling rig winch, crane winch, marine winch, dredger winch, hydraulic winches, compact winch, free fall hydraulic winch) with more than 10 years experience in designing and manufacturing different types of hydraulic winches fro widely application.
We are the group company in China, the registered capacity is 6,000,000 and the factory area is about 6000sqm. Staffed with 150 employees, including 10 engineers.
The products are widely used in engineering machinery, ship-, petroleum-, mining industry, metallurgical machinery, light industry, agriculture, enviroment.
Now we are stepping into the international market, our products are being exported to
Germany, USA, CANADA, ITALY, NETHERLAND, KOREAM, SINGAPORE, TURKEY, AUSTRALIA, INDIA, INDONESIA and others.
Product introduction

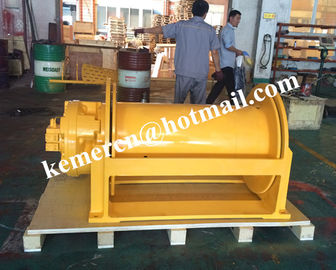

For the winch in the picture, it is our GW series hydraulic winches (hydraulic winch, hoisting winch, wireline winch, drilling rig winch, crane winch, dredger winch), which are widely used in marine deck machinery, harbor, petroleum, drill machine, engineering machinery, mining, geological exploration and construction machinery.
Features:
1. One-or two-stage planetary gearboxes, smooth operation and reasonable structure.
2. Normally closed friction type brake, high braking torque, safe and reliable operating.
3. Small volume, compact structure and high transmission efficiency.
4. Radial piston hydraulic motor with long life operating.
5. Mounting frame is available on request.
6. Balance valve, shuttle valve, limit switch and other accessories are also available on request.
Specification:
For the following specification, it is for your reference, we can also design and manufacture the winch with pull force up to 60 ton based on your requirements.
| Model | The 1st layer | Diameter of reel bottom (mm) | Diameter of rope (mm) | Capacity of rope (mm) | Hydraulic motor | Gearbox Model | |
| Pull Force (KN) | Rope Speed (m/min) | ||||||
| GW2.5-10-60-10-ZP | 10 | 0-30 | 238 | 10 | 60 | GM05-110D51 | C2.5-5 |
| GW2.5-20-50-12-ZP | 20 | 0-30 | 238 | 12 | 50 | GM05-200D51 | C2.5-5.5 |
| GW3-30-65-15-ZP | 30 | 0-35 | 305 | 15 | 65 | GM2-420D51 | C3-5 |
| GW3-40-60-16-ZP | 40 | 0-35 | 305 | 16 | 60 | GM2-500D51 | C3-5.5 |
| GW4-50-70-20-ZP | 50 | 0-40 | 380 | 20 | 70 | GM3-900D240101 | C4-5 |
| GW4-60-68-21.5-ZP | 60 | 0-40 | 380 | 21.5 | 68 | GM3-1000D240101 | C4-5.5 |
| GW5-80-100-24-ZP | 80 | 0-40 | 470 | 24 | 100 | GM5-1800D240101 | C5-5 |
| GW5-100-90-28-ZP | 100 | 0-40 | 470 | 28 | 90 | GM5-2000D240101 | C5-5.5 |
| GW6-120-176-30-ZP | 120 | 0-30 | 600 | 30 | 175 | GM6-3000D480101 | C6-5.5 |
| GW6-150-150-34-ZP | 150 | 0-25 | 600 | 34 | 150 | GM6-3000D480101 | C6-5.5 |
Picture for reference:
Factory overview
Package
Contact:
Cathy
Skype: kemercathy
Whatsapp: +8613486645746
Email: kemercn@hotmail.com
